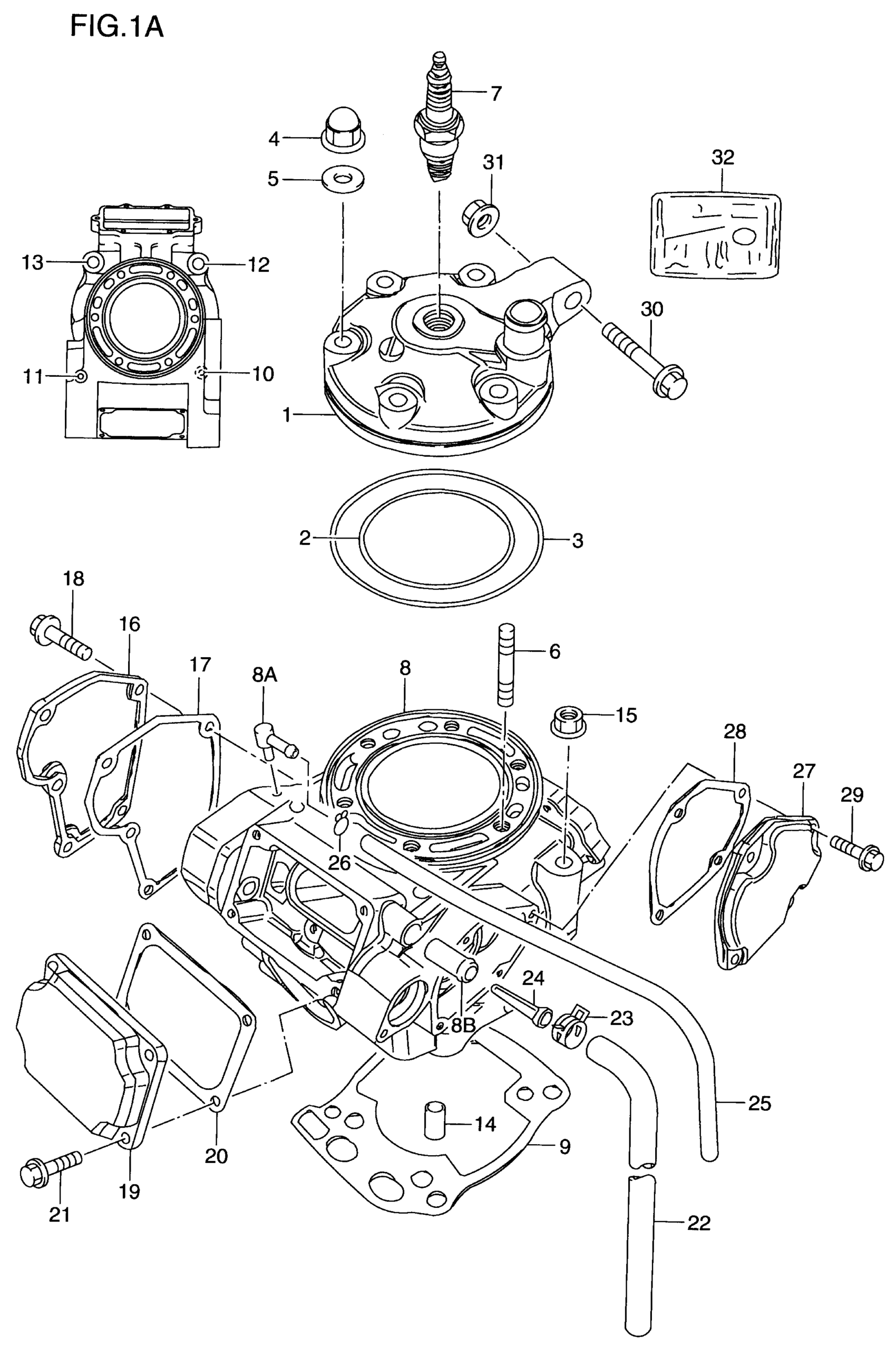

Suzuki RM250 (2000) CYLINDER (MODEL X) Diagram

#

Description
Price

1

HEAD, CYLINDER

11111-37E30

Unavailable

2

O RING, CYLINDER HEAD NO.1

11147-28C20

$12.63

3

O RING, CYLINDER HEAD NO.2

11148-28C20

$7.60

4

NUT

09159-08049

$4.71

5

WASHER

09168-08021

$2.61

6

STUD BOLT (8X38) This part replaces 09108-08227.

09108-08231

$3.42

7

SPARK PLUG (NGK,R6918B-7)

09482-00511

Unavailable

8

NO DESCRIPTION AVAILABLE | Includes Item(s) 8A This part replaces 11200-37840.

11200-37841

Unavailable

8A

UNION, CYLINDER

16910-09401

$18.20

8B

UNION, EXHAUST VALVE BREATHER HOSE

09364-10003

Unavailable

9

GASKET, CYLINDER This part replaces 11241-37E30.

11241-37E31

Unavailable

10

STUD BOLT (L:30) This part replaces 01421-10308.

01421-1030A

$2.57

11

STUD BOLT (L:40) This part replaces 01421-10408.

01421-1040A

$2.62

12

BOLT,STUD This part replaces 01421-10708.

01421-1070A

$4.18

13

BOLT,STUD This part replaces 01421-10808.

01421-1080A

$4.43

14

PIN

09206-13017

$7.61

15

NUT This part replaces 08316-10103.

08316-1010B

$2.66

16

COVER, CYLINDER NO.1

11231-37E30

Unavailable

17

GASKET, CYLINDER COVER NO.1

11233-37E30

$10.17

18

BOLT This part replaces 01547-06163.

01547-0616B

$2.45

19

COVER, CYLINDER NO.2

11248-37E30

Unavailable

20

GASKET, CYLINDER COVER NO.2 This part replaces 11238-36E00.

11238-36E01

$6.70

21

BOLT This part replaces 02162-05163.

02162-0516A

$1.71

22

HOSE (9X14X220)

09343-09501

$11.61

23

CLIP

09401-12405

$2.26

24

FILTER

11271-28E20

Unavailable

25

HOSE,5X10X600 | L:600(r)390 This part replaces 09352-50823-600.

44421-13ER0

$10.06

26

CLIP

09401-08401

$1.54

27

COVER, CYLINDER NO.3

11249-37E30

Unavailable

28

GASKET, CYLINDER COVER NO.3 This part replaces 11234-37E30.

11234-37E31

$7.08

29

BOLT This part replaces 02162-05163.

02162-0516A

$1.71

30

BOLT (10X38)

09103-10126

$4.50

31

NUT (M10)

09159-10060

$1.94

32

GASKET SET This part replaces 11400-37880.

11400-37884

Unavailable
