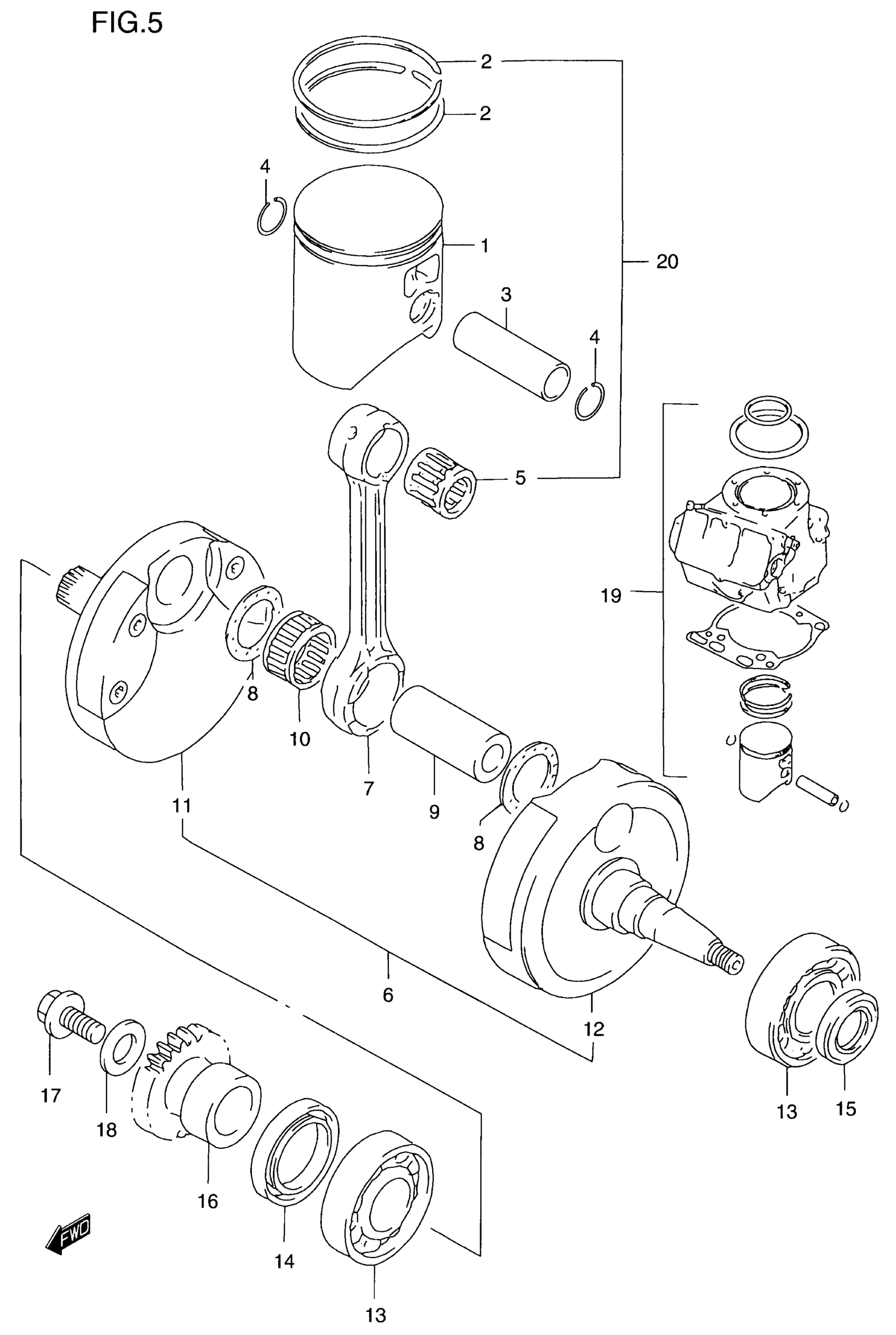

Suzuki RM250 (2000) CRANKSHAFT Diagram

#

Description
Price

1

PISTON | MODEL T This part replaces 12110-37E00-0F0.

12110-37E30-0F0

Unavailable

1

PISTON | MODEL V This part replaces 12110-37E02-0F0.

12110-37E30-0F0

Unavailable

1

PISTON | MDOEL W This part replaces 12110-37E20-0F0.

12110-37E42-0F0

$127.83

1

PISTON | MODEL X

12110-37E30-0F0

Unavailable

1

PISTON | MODEL Y This part replaces 12110-37E40-0F0.

12110-37E42-0F0

$127.83

2

RING, PISTON | MODEL T This part replaces 12141-37E00.

12141-37E02

Unavailable

2

RING, PISTON | MODEL V/W/X/Y This part replaces 12141-37E01.

12141-37E02

Unavailable

3

PIN, PISTON This part replaces 12151-28C00.

12151-37F00

$14.15

4

CIRCLIP

09381-18002

$1.67

5

BEARING (18X23X22)

09263-18016

$19.93

6

CRANKSHAFT ASSY | MODEL T/V This part replaces 12200-37E01.

12200-37E40

Unavailable

6

CRANKSHAFT ASSY | MODEL W

12200-37E10

Unavailable

6

CRANKSHAFT ASSY | MODEL X This part replaces 12200-37E30.

12200-37E31

Unavailable

6

CRANKSHAFT ASSY | MODEL Y; Includes Item(s) 7 - 12

12200-37E40

Unavailable

7

ROD, CONNECTING

12161-37E00

$154.37

8

WASHER

09160-24027

$23.13

9

PIN, CRANK

12211-05D00

$43.33

10

BEARING (24X30X20)

09263-24026

$69.90

11

CRANKSHAFT, RH | MODEL T/V This part replaces 12220-37E01.

12220-37E40

Unavailable

11

CRANKSHAFT, RH | MDOEL W

12220-37E10

Unavailable

11

CRANKSHAFT, RH | MODEL X This part replaces 12220-37E30.

12220-37E31

Unavailable

11

CRANKSHAFT, RH | MODEL Y

12220-37E40

Unavailable

12

CRANKSHAFT, LH | MODEL T/V This part replaces 12260-37E01.

12260-37E40

Unavailable

12

CRANKSHAFT, LH | MODEL W

12260-37E10

Unavailable

12

CRANKSHAFT, LH | MODEL X This part replaces 12260-37E30.

12260-37E31

Unavailable

12

CRANKSHAFT, LH | MODEL Y

12260-37E40

Unavailable

13

BEARING (28X68X18)

09262-28027

$71.59

14

OIL SEAL, RH (38X52X8)

09283-38021

$20.01

15

OIL SEAL, LH (25X37X6)

09283-25099

$12.96

16

GEAR, PRIMARY DRIVE (NT:21) | MODEL T/V/W This part replaces 21111-37E01.

21111-37F00

Unavailable

16

GEAR, PRIMARY DRIVE (NT:21) | MODEL X/Y This part replaces 21111-37E02.

21111-37F00

Unavailable

17

BOLT, PRIMARY DRIVE GEAR This part replaces 21141-27C11.

09103-10339

$9.32

18

WASHER

09164-11004

$5.47

19

TOP END KIT, EN | OPT,MODEL T E3 This part replaces 12101-37820.

12101-37825

$376.68

19

TOP END KIT, EN | OPT,MODEL V E3 This part replaces 12101-37823.

12101-37825

$376.68

19

NO DESCRIPTION AVAILABLE | OPT,MODEL W E3 This part replaces 12101-37840.

12101-37841

Unavailable

19

TOP END KIT,ENG | OPT,MODEL X E3 This part replaces 12101-37850.

12101-37852

Unavailable

19

NO DESCRIPTION AVAILABLE | OPT,MODEL Y E3 This part replaces 12101-37870.

12101-37872

Unavailable

20

PISTON KIT | OPT,MODEL T E28

12101-37810

Unavailable

20

PISTON KIT | OPT,MODEL V E28

12101-37813

Unavailable

20

PISTON KIT | OPT,MODEL W E28

12101-37830

$202.92

20

TOP END KIT,ENG | OPT,MODEL X E28 This part replaces 12101-37860.

12101-37852

Unavailable

20

PISTON KIT | OPT,MODEL Y E28 This part replaces 12101-37880.

12101-37893

$203.00
