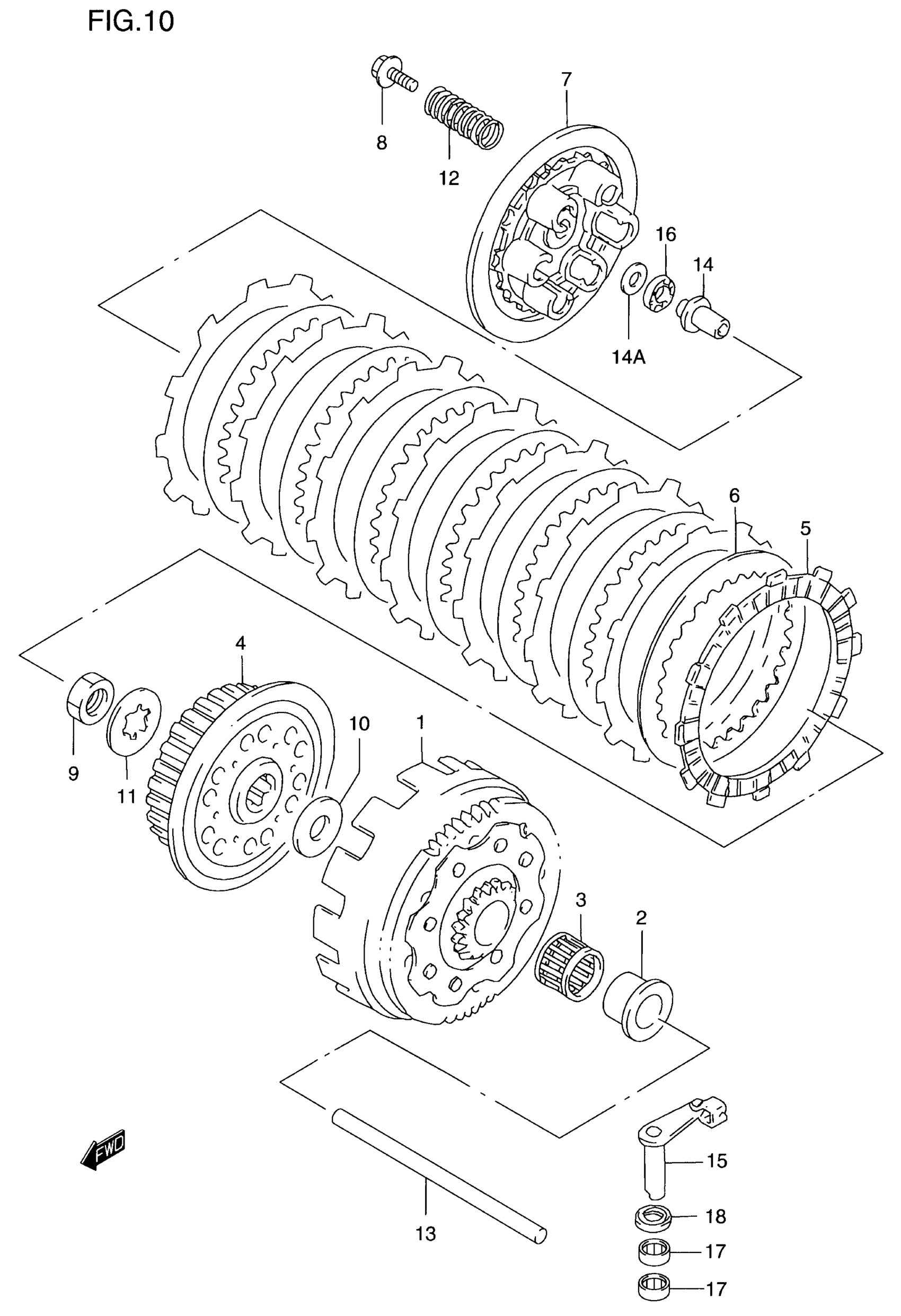

Suzuki RM250 (2000) CLUTCH Diagram

#

Description
Price

1

GEAR ASSY, PRIMARY DRIVEN | MODEL T/V/W,NT:63/21 This part replaces 21200-37E01.

21200-37F10

$388.57

1

GEAR ASSY, PRIMARY DRIVEN | MODEL X/Y,NT:63/21 This part replaces 21200-37E02.

21200-37F10

$388.57

2

SPACER, PRIMARY DRIVEN GEAR This part replaces 21251-37E00.

21251-37E01

$50.70

3

BEARING, PRIMARY DRIVEN | 29X34X27

09263-29009

$21.10

4

HUB SET,CLUTCH | MODEL T This part replaces 21411-37E00.

21410-37810

Unavailable

4

HUB SET,CLUTCH | MODEL V This part replaces 21411-37E01.

21410-37810

Unavailable

4

HUB SET,CLUTCH | MODEL W/X/Y This part replaces 21410-37E10.

21410-37810

Unavailable

5

PLATE, CLUTCH DRIVE | MODEL T

21441-37E00

$28.80

5

PLATE, CLUTCH DRIVE | MODEL V

21441-37E10

Unavailable

5

PLATE, CLUTCH DRIVE | MODEL W/X/Y This part replaces 21441-37E20.

21441-37E00

$28.80

6

PLATE, CLUTCH DRIVEN | MODEL T This part replaces 21451-37E00.

21451-37F00

$9.24

6

PLATE, CLUTCH DRIVEN | MODEL V/W/X/Y This part replaces 21451-37E10.

21451-37F00

$9.24

7

DISC,CLUTCH PRE | MODEL T This part replaces 21462-37E00.

21462-37E03

Unavailable

7

DISC,CLUTCH PRE | MODEL V This part replaces 21462-37E01.

21462-37E03

Unavailable

7

DISC,CLUTCH PRE | MDOEL W/X/Y This part replaces 21462-37E02.

21462-37E03

Unavailable

8

BOLT, CLUTCH (5X25)

09116-05019

$2.32

9

NUT, CLUTCH SLEEVE HUB

09140-18013

$12.00

10

WASHER, CLUTCH HUB THR | 22X38X2

09160-22067

$10.08

11

WASHER, CLUTCH HUB | 22X42X0.8

09167-22021

$1.78

12

SPRING, CLUTCH | MODEL T

09440-18025

$7.35

12

SPRING, CLUTCH | MODEL V This part replaces 09440-18026.

09440-18030

$6.51

12

SPRING, CLUTCH | MODEL W/X/Y This part replaces 09440-18029.

09440-18030

$6.51

13

ROD, CLUTCH PUSH

23111-37E00

Unavailable

14

PIECE,CLUTCH PUSH | MODEL T This part replaces 23121-37E00.

23121-37F00

$20.21

14

PIECE,CLUTCH PUSH | MODEL V/W/X/Y This part replaces 23121-37E01.

23121-37F00

$20.21

14A

SHIM (10X20X0.50) | MODEL V/W/X/Y

09181-10186

$1.97

15

CAMSHAFT, CLUTCH RELEASE This part replaces 23200-37E00.

23200-37E02

$67.73

16

BEARING, CLUTCH RELEASE | 10.1X22X2.8

09263-10002

$10.19

17

BEARING, NO.2 | 12X16X10

09263-12024

$12.67

18

SEAL, CL RELEASE CAMSHAFT | 12X19X5

09285-12004

$6.24
