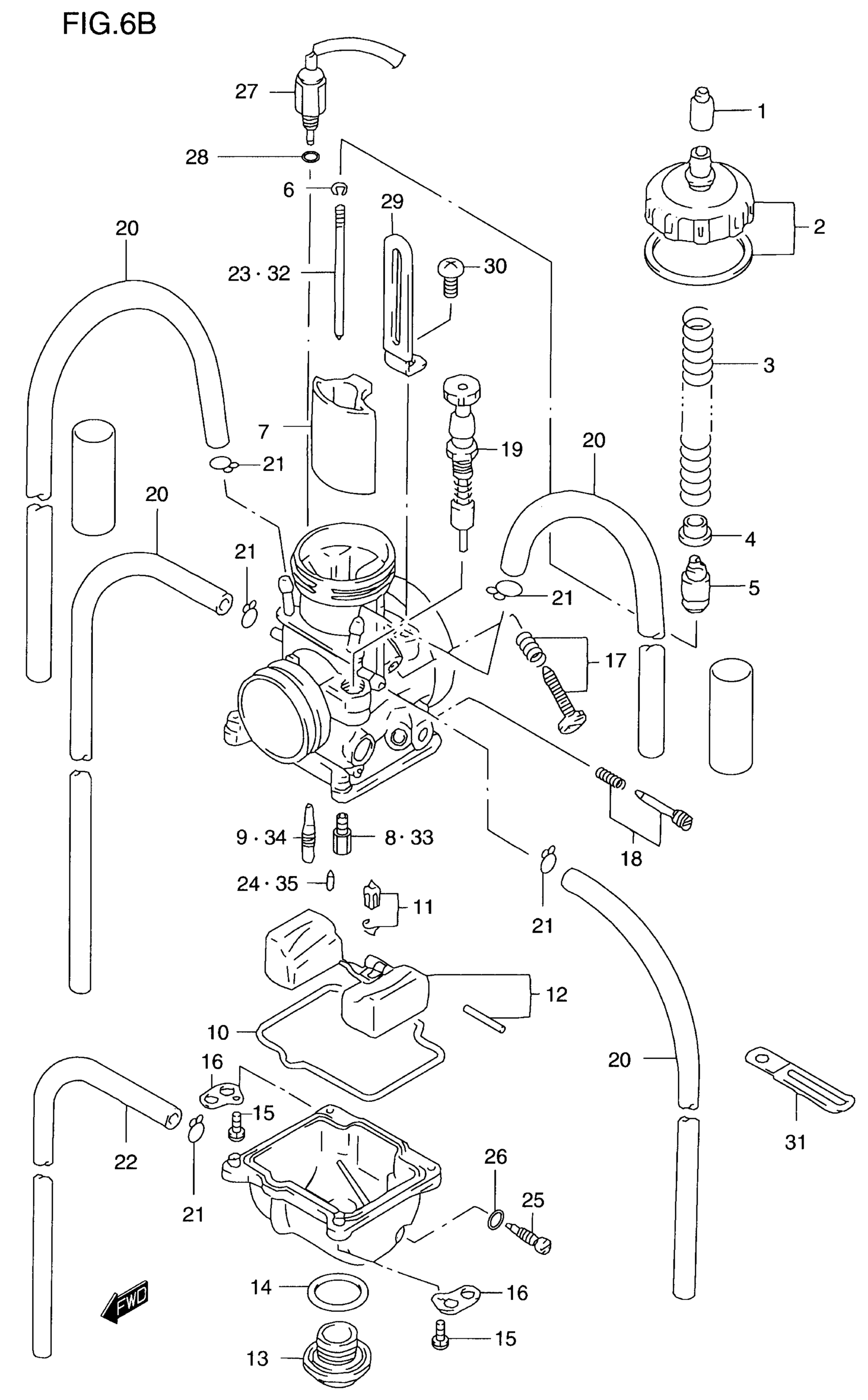

Suzuki RM250 (2000) CARBURETOR (MODEL W/X/Y) Diagram

#

Description
Price

CARBURETOR ASSY | MODEL W

13200-37E20

Unavailable

CARBURETOR ASSY | MODEL X

13200-37E30

Unavailable

CARBURETOR ASSY | MODEL Y; Includes Item(s) 1 - 23

13200-37E40

Unavailable

1

CAP, CARBURETOR

13681-43D30

$11.55

2

CAP SET, TOP

13260-43D30

Unavailable

3

SPRING, THROTTLE VALVE

13573-43D30

Unavailable

4

COLLAR, THROTTLE VALVE

13424-43D30

$6.77

5

HOLDER, CABLE

13581-43D30

$28.97

6

CLIP, NEEDLE

13394-28E00

$5.77

7

VALVE, THROTTLE | MODEL W

13551-37E00

Unavailable

7

VALVE, THROTTLE | MODEL X/Y

13551-36E00

Unavailable

8

JET, MAIN (162) | MODEL W

09491-32011

$18.87

8

JET, MAIN (158) | MODEL X/Y

09491-31013

$19.58

9

JET, PILOT (45) | MODEL W/X

09492-45032

$18.87

9

JET, PILOT (42) | MODEL Y

09492-42019

$13.52

10

GASKET, FLOAT CHAMBER

13696-44E00

$14.93

11

VALVE SET, FLOAT

13370-43D30

$60.01

12

FLOAT SET

13240-28E00

Unavailable

13

BOLT, DRAIN

13247-28E00

$29.07

14

O RING

13246-28E00

$6.67

15

SCREW This part replaces 02112-34163.

02112-3416B

$2.21

16

PLATE

13693-36E00

$6.38

17

SCREW SET, STOP

13270-43D30

$20.98

18

SCREW SET, AIR

13280-43D30

$29.07

19

STARTER VALVE | MODEL W/X

13410-43D30

$102.30

19

STARTER VALVE | MODEL Y

13410-36E40

Unavailable

20

HOSE (4X7X620) | UP/RH L:620(r)580 UP/LH L:620(r)550 RH L:620(r)400 LH L:620(r)360

13686-36E00

$9.41

21

CLIP

09401-06101

$2.06

22

HOSE (3.5X6.5X600) | L:600(r)330

09351-35653-600

$4.19

23

NEEDLE, JET (N1EI) | MODEL W

13383-37EK0

Unavailable

23

NEEDLE, JET (N1EG) | MODEL X

13383-37EH0

Unavailable

23

NEEDLE, JET (N3WK) | MODEL Y; Includes Item(s) 24 - 30

13383-37EQ0

$22.68

24

JET, POWER (60) | MODEL W

09492-60018

Unavailable

24

JET, POWER (55) | MODEL X/Y

09492-55019

$19.58

25

SCREW, DRAIN

13247-44E00

Unavailable

26

O RING

13256-44E00

Unavailable

27

SOLENOID ASSY | MODEL W/X This part replaces 13160-37E00.

13160-37E01

$187.80

27

SOLENOID ASSY | MODEL Y

13160-37E01

$187.80

28

O RING

13453-37E00

$6.00

29

CLAMP

13451-37E00

Unavailable

30

SCREW

13452-37E00

Unavailable

31

CLAMP, AIR VENT (L:60) | MODEL W

09404-06429

$1.82

31

CLAMP | MODEL X/Y This part replaces 09404-06432.

09404-06039

$1.73

32

NEEDLE, JET (N0ZG) | OPT,MODEL W/X

13383-37EC0

Unavailable

32

NEEDLE, JET (N0ZH) | OPT,MODEL W/X

13383-37ED0

Unavailable

32

NEEDLE, JET (N0ZI) | OPT,MODEL W/X

13383-37EE0

Unavailable

32

NEEDLE, JET (N0ZJ) | OPT,MODEL W

13383-37EF0

Unavailable

32

NEEDLE, JET (N0ZK) | OPT,MODEL W

13383-37EG0

Unavailable

32

NEEDLE, JET (NOZE) | OPT,MODEL X

13383-37EA0

Unavailable

32

NEEDLE, JET (NOZF) | OPT,MODEL X

13383-37EB0

Unavailable

32

NEEDLE, JET (N1EG) | OPT,MODEL W/X

13383-37EH0

Unavailable

32

NEEDLE, JET (N1EH) | OPT,MODEL W/X

13383-37EJ0

Unavailable

32

NEEDLE, JET (N1EI) | OPT,MODEL W/X

13383-37EK0

Unavailable

32

NEEDLE, JET (N1EJ) | OPT,MODEL W

13383-37EL0

Unavailable

32

NEEDLE, JET (N1EK) | OPT,MODEL W

13383-37EM0

Unavailable

32

NEEDLE, JET (NIEE) | OPT,MODEL X

13383-37E50

Unavailable

32

NEEDLE, JET (NIEF) | OPT,MODEL X

13383-37E60

Unavailable

32

NEEDLE, JET (N3WW) | OPT,MODEL Y

13383-37EN0

Unavailable

32

NEEDLE, JET (N3WJ) | OPT,MODEL Y

13383-37EP0

Unavailable

32

NEEDLE, JET (N3WK) | OPT,MODEL Y

13383-37EQ0

$22.68

32

NEEDLE, JET (N3WL) | OPT,MODEL Y

13383-37ER0

Unavailable

32

NEEDLE, JET (N3WM) | OPT,MODEL Y

13383-37ES0

Unavailable

32

NEEDLE, JET (N3YW) | OPT,MODEL Y

13383-36EA0

Unavailable

32

NEEDLE, JET (N3YJ) | OPT,MODEL Y

13383-36EB0

Unavailable

32

NEEDLE, JET (N3YK) | OPT,MODEL Y

13383-36EC0

Unavailable

32

NEEDLE, JET (N3YL) | OPT,MODEL Y

13383-36ED0

Unavailable

32

NEEDLE, JET (N3YM) | OPT,MODEL Y

13383-36EE0

Unavailable

33

JET, MAIN (150) | OPT

09491-30018

$19.58

33

JET, MAIN (152) | OPT

09491-30019

$19.58

33

JET, MAIN (155) | OPT

09491-31012

$19.58

33

JET, MAIN (158) | OPT

09491-31013

$19.58

33

JET, MAIN (160) | OPT

09491-32010

$18.87

33

JET, MAIN (162) | OPT

09491-32011

$18.87

33

JET, MAIN (165) | OPT

09491-33009

$18.87

33

JET, MAIN (168) | OPT

09491-33010

$13.52

33

JET, MAIN (170) | OPT

09491-34010

$18.87

33

JET, MAIN (172) | OPT

09491-34011

$18.87

33

JET, MAIN (175) | OPT

09491-35009

$19.22

33

JET, MAIN (178) | OPT

09491-35010

$19.58

33

JET, MAIN (180) | OPT

09491-36008

$19.58

33

JET, MAIN (185) | OPT

09491-37008

Unavailable

33

JET, MAIN (190) | OPT

09491-38011

Unavailable

33

JET, MAIN (195) | OPT

09491-39001

Unavailable

33

JET, MAIN (200) | OPT

09491-40013

$19.58

33

JET, MAIN (205) | OPT

09491-41001

Unavailable

33

JET, MAIN (210) | OPT

09491-42006

Unavailable

34

JET, PILOT (35) | OPT

09492-35019

$19.22

34

JET, PILOT (40) | OPT

09492-40022

$18.87

34

JET, PILOT (42) | OPT

09492-42019

$13.52

34

JET, PILOT (45) | OPT

09492-45032

$18.87

34

JET, PILOT (48) | OPT

09492-48013

$18.87

34

JET, PILOT (50) | OPT

09492-50023

$18.87

34

JET, PILOT (52) | OPT

09492-52011

$19.22

34

JET, PILOT (55) | OPT

09492-55017

$19.58

34

JET, PILOT (58) | OPT

09492-58001

$20.13

34

JET, PILOT (60) | OPT

09492-60016

Unavailable

35

JET, POWER (50) | OPT

09492-50025

Unavailable

35

JET, POWER (55) | OPT

09492-55019

$19.58

35

JET, POWER (60) | OPT

09492-60018

Unavailable
