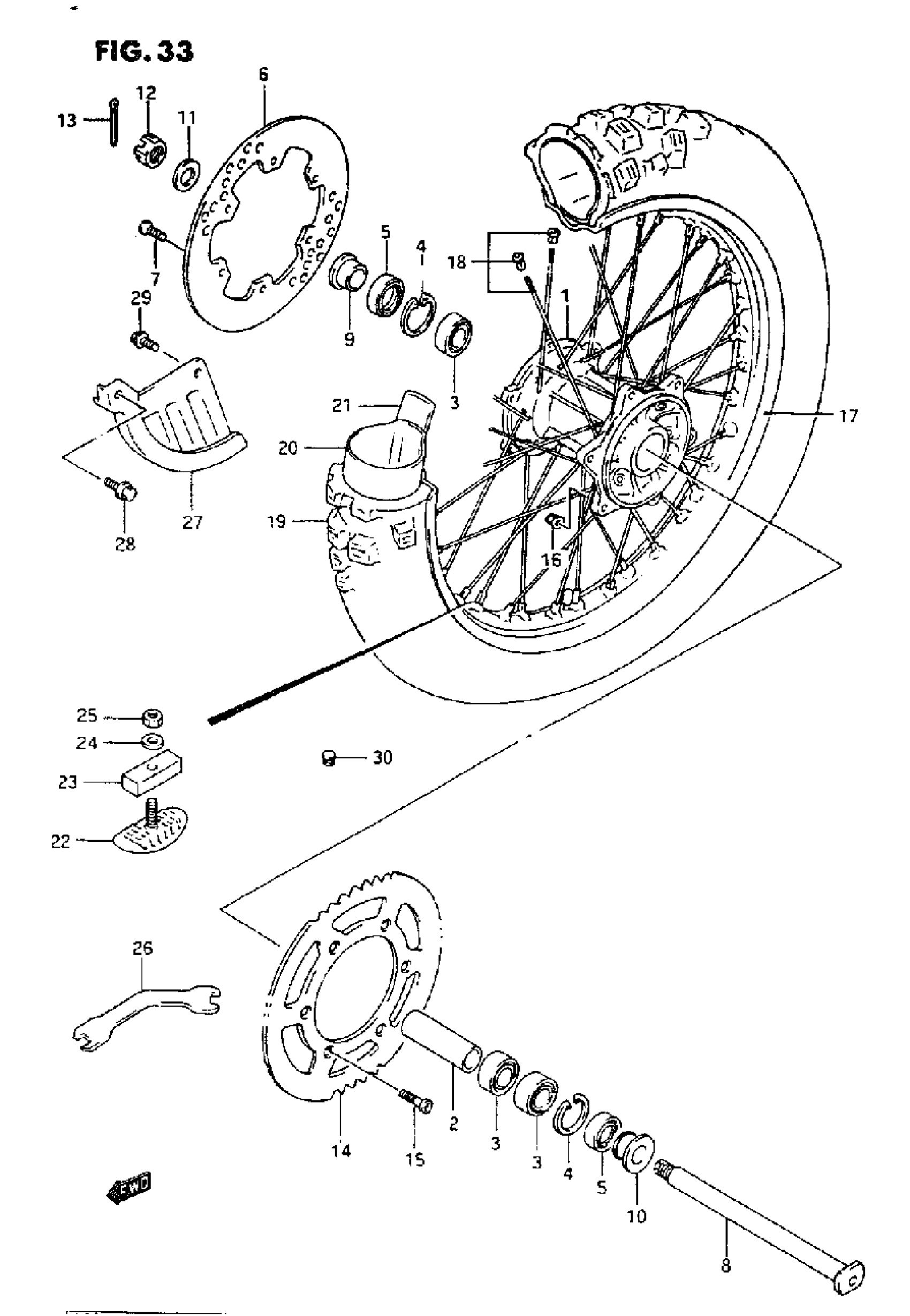

Suzuki RM250 (1995) REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

64111-43D00

Unavailable

2

SPACER, BEARING

64731-43D00

Unavailable

3

BEARING

08133-60047

$25.82

4

CIRCLIP This part replaces 08331-41426.

08331-41429

$2.41

5

SEAL, DUST | MODEL P/R

09282-26001

$15.42

5

SEAL (29X42X6) | MODEL S This part replaces 64841-28E00.

64841-28E01

$7.89

6

DISC, REAR BRAKE

69211-43D00

$299.30

7

SCREW

59421-29E00

$4.82

8

AXLE, REAR

64711-28E00

Unavailable

9

SPACER, RH | MODEL P/R

64741-43D00

Unavailable

9

SPACER, RH | MODEL S

64741-28E10

Unavailable

10

SPACER, LH | MODEL P/R

64751-28E00

Unavailable

10

SPACER, LH | MODEL S

64751-28E20

$27.30

11

WASHER

09160-19022

$4.90

12

NUT | MODEL P This part replaces 08314-41188.

08314-40187

$5.64

12

NUT | MODEL R/S This part replaces 08314-40183.

08314-4018A

$4.64

13

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.49

14

SPROCKET,RR (NT:49) | MODEL P/R This part replaces 64511-40281.

64511-28E00

$120.85

14

SPROCKET,RR (NT:49) | MODEL S

64511-28E00

$120.85

14

SPROCKET, REAR (NT:48) | OPT ALUMINIUM ->64511-14060 This part replaces 64511-40285.

64511-14D60

Unavailable

14

SPROCKET, REAR (NT:48) | OPT ALUMINIUM

64511-14D60

Unavailable

14

SPROCKET,RR (NT:50) | OPT ALUMINIUM ->64511-15D20 This part replaces 64511-40271.

64511-36E00

$126.60

14

SPROCKET,RR (NT:50) | OPT ALUMINIUM This part replaces 64511-15D20.

64511-36E00

$126.60

14

SPROCKET, REAR (NT:51) | OPT ALUMINIUM

64511-40261

$155.22

14

SPROCKET, REAR (NT:49) | OPT STEEL

64511-00B01

Unavailable

14

SPROCKET, REAR (NT:50) | OPT STEEL

64511-00B12

$125.38

14

SPROCKET. REAR (NT:51) | OPT STEEL

64511-00B21

Unavailable

15

SCREW

09120-08010

$2.36

16

NUT

09159-08067

$5.57

17

RIM, WHEEL (2.15X19AL)

65311-28C10

Unavailable

18

SPOKE ASSY, WHEEL

65320-28C10

Unavailable

19

NO DESCRIPTION AVAILABLE This part replaces 65110-28E10.

65110-28E11

Unavailable

20

TUBE This part replaces 65200-28C20.

55200-44611

$33.73

21

PROTECTOR,WHL I This part replaces 65261-28C20.

65261-28C21

$6.00

22

STOPPER, BEAD

65270-28E00

$58.75

23

CUSHION, BEAD STOPPER

65271-27C00

$7.42

24

WASHER | MODEL P This part replaces 08322-11088.

08322-01087

$2.13

24

WASHER | MODEL R/S This part replaces 08322-01083.

08322-0108A

$1.92

25

NUT | MODEL P This part replaces 08310-12088.

08310-00087

$2.13

25

NUT | MODEL R/S This part replaces 08310-00083.

08310-0008A

$1.84

26

SPANNER, OPEN

09813-00039

Unavailable

27

COVER, REAR DISC This part replaces 69231-28C00.

69200-28C00

$28.44

28

BOLT | MODEL P This part replaces 01517-06207.

01550-06207

$2.30

28

BOLT | MODEL R/S This part replaces 01550-06203.

01550-0620A

$1.97

29

BOLT | MODEL P This part replaces 01517-06128.

01550-06127

$2.30

29

BOLT, CLAMP | MODEL R/S This part replaces 01550-06123.

01550-0612A

$1.97

30

CAP

09250-08013

$2.68
