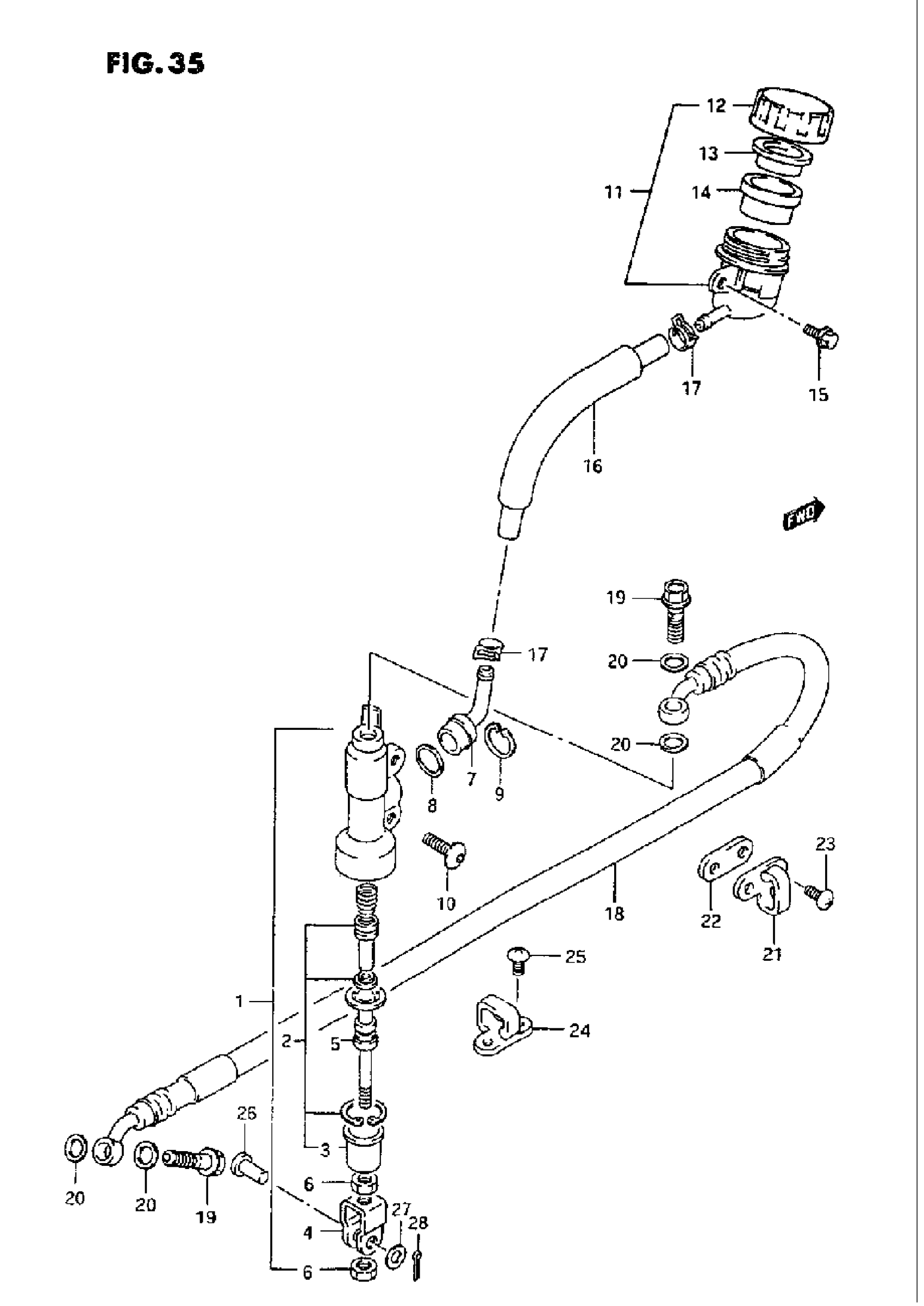

Suzuki RM250 (1995) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER

69600-28E00

Unavailable

2

.PISTON/CUP SET This part replaces 69600-34820.

69600-34821

$26.60

3

.BOOT

69691-00A00

$5.30

4

YOKE

69692-00B21

$17.02

5

ROD, PUSH

69670-27A30

$26.23

6

NUT

69693-05A00

$1.96

7

CONNECTOR

59672-17C00

$9.31

8

O RING

69686-34200

$2.93

9

CIRCLIP

69674-00B20

$3.97

10

SCREW(6X16) This part replaces 09139-06067.

09139-06237

$2.38

11

TANK ASSY, RESERVOIR

69740-03D10

$75.90

12

CAP

69669-03D10

$22.65

13

PLATE

69668-00B20

$7.67

14

DIAPHRAGM

69667-00B20

$15.68

15

BOLT | MODEL P/R

01547-06127

$1.65

15

BOLT | MODEL S This part replaces 01547-06123.

01547-0612B

$1.49

16

HOSE, RESERVOIR TANK

69731-27C00

Unavailable

17

CLAMP

69735-00B20

$4.10

18

HOSE, REAR BRAKE | MODEL P/R This part replaces 69480-27C10.

69480-28E00

Unavailable

18

HOSE, REAR BRAKE | MODEL S

69480-28E00

Unavailable

19

UNION | MODEL P This part replaces 09360-10034.

09360-10062

$6.43

19

UNION | MODEL R/S This part replaces 09360-10040.

09360-10062

$6.43

20

WASHER (10X15X1.5)

09161-10009

$1.84

21

GUIDE, HOSE

61196-27C20

$9.38

22

SEAT, HOSE GUIDE

61197-27C00

Unavailable

23

SCREW, FRONT | MODEL P

02142-05167

$1.49

23

SCREW | MODEL R/S This part replaces 02142-05163.

02142-0516A

$1.49

24

GUIDE, HOSE

61196-27C20

$9.38

25

SCREW | MODEL P

09125-05042

$1.96

25

SCREW | MODEL R/S This part replaces 02142-05103.

02142-0510B

$1.78

26

PIN

09200-08048

$2.92

27

WASHER

09160-08074

Unavailable

28

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49
