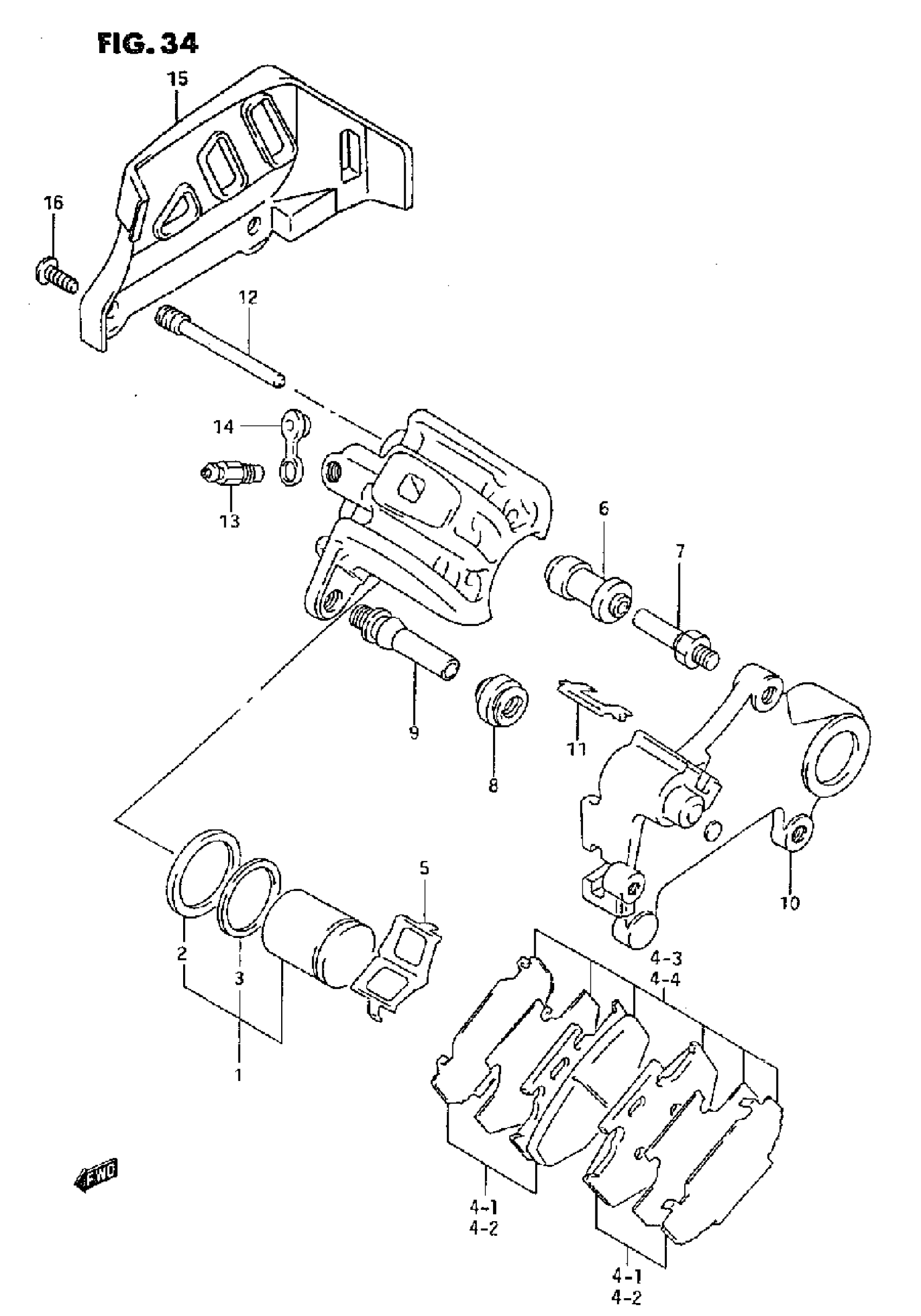

Suzuki RM250 (1995) REAR CALIPER (MODEL P/R) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 69100-43D10.

69100-43D10-999

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL R This part replaces 69100-43D20.

69100-43D10-999

Unavailable

1

PISTON SET

69100-43830

$52.92

2

SEAL SET, PISTON This part replaces 59107-17C00.

69100-13810

$9.61

3

SEAL, DUST

59108-17C00

Unavailable

4-1

PAD SET | MODEL P ->69100-43841

69100-43840

Unavailable

4-2

PAD SET | MODEL R ->69100-43851 This part replaces 69100-43850.

69100-43860

$68.76

4-3

PAD SET | MODEL P

69100-43841

Unavailable

4-4

PAD SET | MODEL R This part replaces 69100-43851.

69100-43860

$68.76

5

SPRING

59315-27C10

$11.68

6

BOOT

59386-13A00

$7.95

7

PIN

59382-14500

$8.95

8

BOOT

59303-14500

$5.52

9

PIN

59305-27C00

$23.48

10

BRACKET

69351-43D01

Unavailable

11

RETAINER

69113-43D00

$8.83

12

.PIN HANGER

69345-43D00

$11.55

13

BLEEDER

59121-01A00

$8.73

14

CAP

59122-01A00

$4.34

15

GUARD, CALIPER

69725-27C30

Unavailable

16

SCREW | MODEL P

02142-06127

$1.49

16

SCREW | MODEL R This part replaces 02142-06123.

02142-0612A

$1.49
