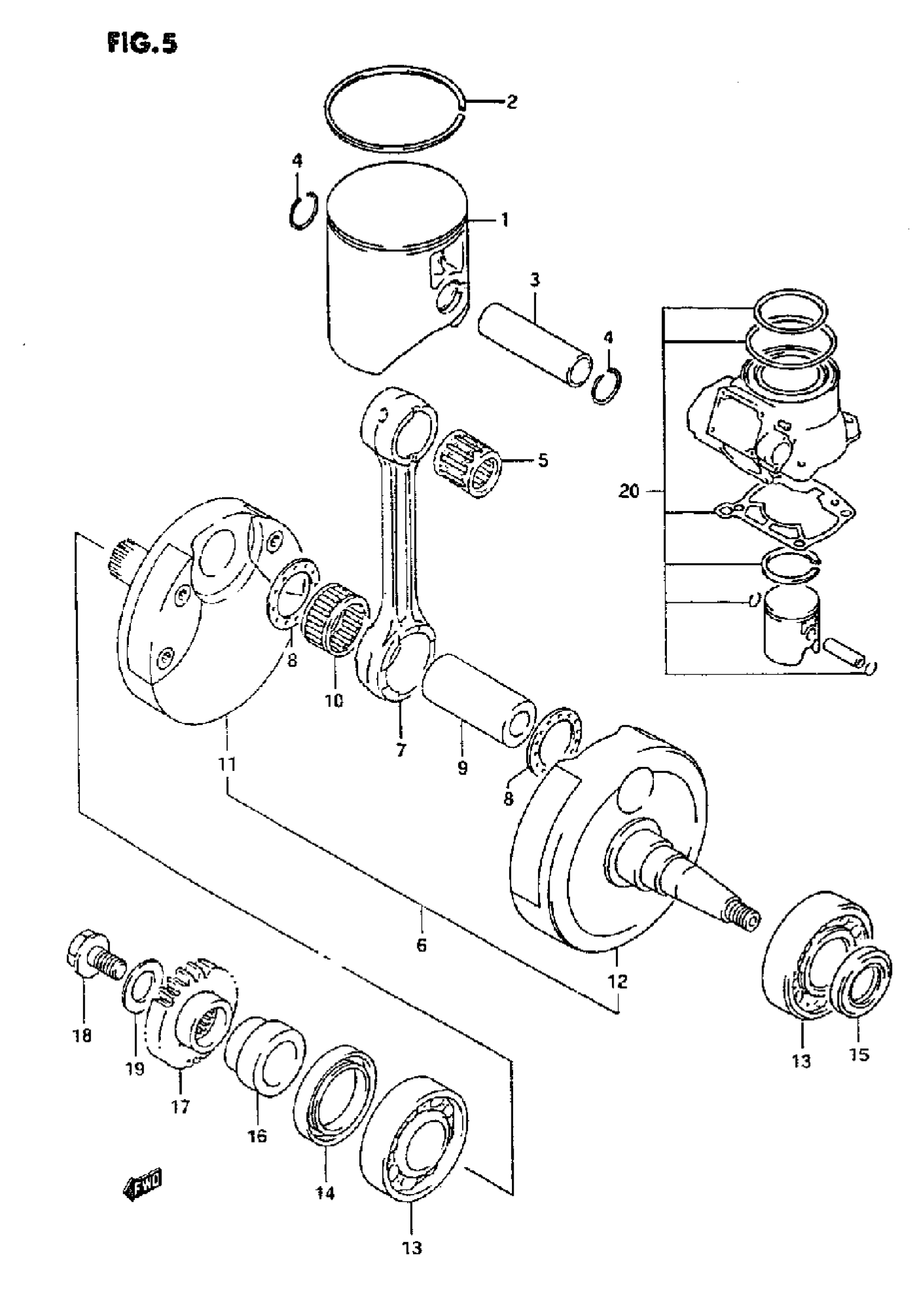

Suzuki RM250 (1995) CRANKSHAFT (MODEL P) Diagram

#

Description
Price

1

PISTON | ->12110-28E10-OFO W/12141-28E00 (2PC.S) This part replaces 12110-28E00-0F0.

12110-29E20-0F0

Unavailable

2

RING, PISTON

12141-28E00

$26.76

3

PIN, PISTON This part replaces 12151-28C00.

12151-37F00

$14.15

4

CIRCLIP

09381-18002

$1.67

5

BEARING, PISTON PIN

09263-18016

$19.93

6

CRANKSHAFT ASSY

12200-28E00

Unavailable

7

ROD, CONNECTING

12161-28C30

Unavailable

8

WASHER

09160-24027

$23.13

9

PIN, CRANK This part replaces 12211-28C10.

12211-05D00

$43.33

10

BEARING

09263-24026

$69.90

11

CRANKSHAFT, RH

12220-28E00

Unavailable

12

CRANKSHAFT, LH

12260-28E00

Unavailable

13

BEARING

09262-25108

Unavailable

14

OIL SEAL, RH (36X52X7)

09283-36007

Unavailable

15

OIL SEAL, LH (20X37X6)

09283-20051

Unavailable

16

SPACER This part replaces 12359-28C20.

12359-00B20

Unavailable

17

GEAR, PRIMARY DRIVE (NT:23) This part replaces 21111-14320.

21111-14321

Unavailable

18

BOLT, PRIMARY DRIVE GEAR This part replaces 21141-27C11.

09103-10339

$9.32

19

WASHER

09164-11004

$5.47

20

TOP END KIT, EN | OFT This part replaces 12101-28810.

12101-28812

Unavailable
