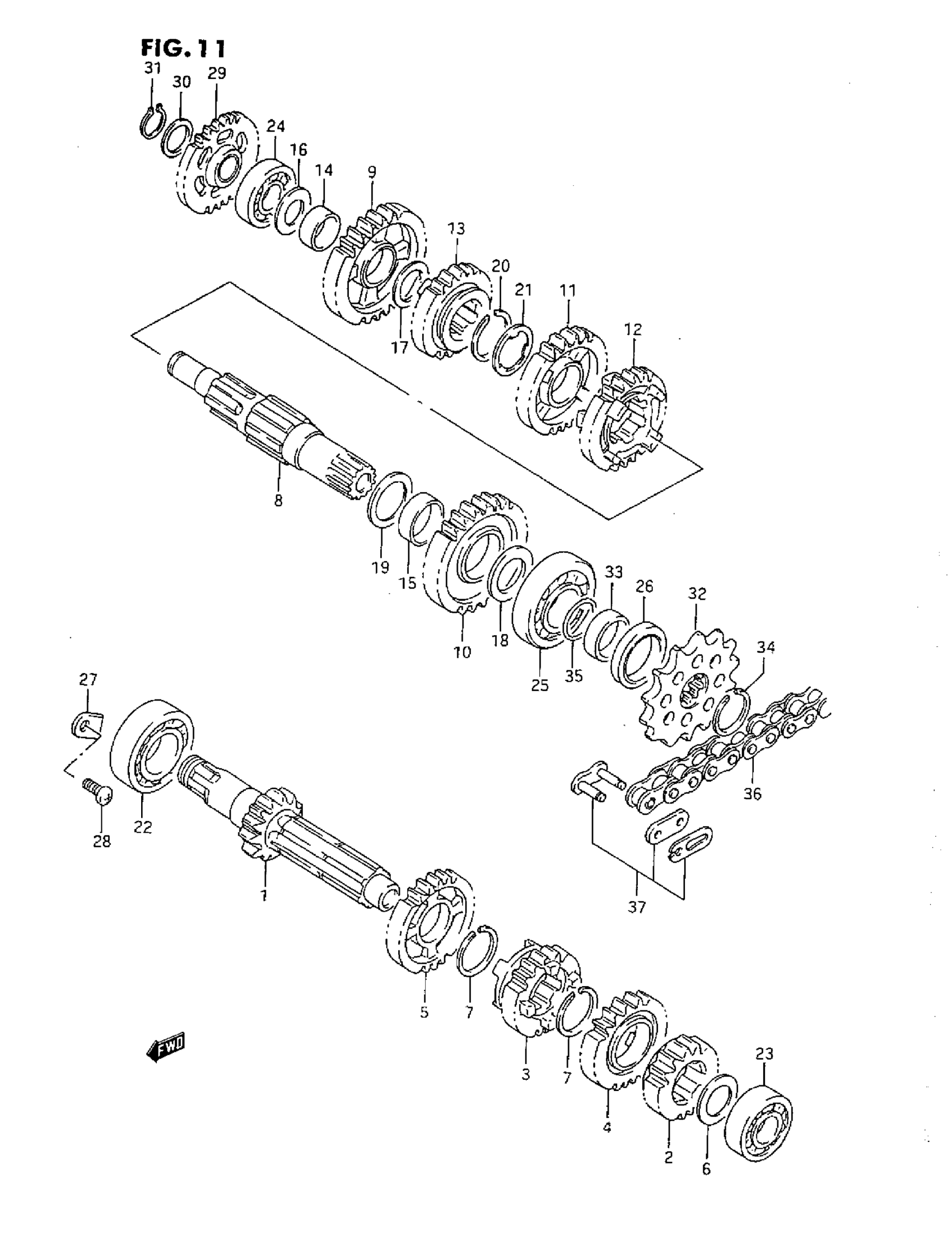

Suzuki RM250 (1993) TRANSMISSION Diagram

#

Description
Price

1

SHAFT, COUNTER (NT:13)

24121-28C04

Unavailable

2

GEAR, 2ND DRIVE (NT:17)

24221-28C10

Unavailable

3

GEAR, 3RD DRIVE (NT:17)

24231-28C21

Unavailable

4

GEAR, 4TH DRIVE (NT:19)

24241-28C20

Unavailable

5

GEAR, 5TH DRIVE (NT:23)

24251-28C01

Unavailable

6

WASHER, 2ND DRIVE GEAR This part replaces 08211-17301.

09181-17223

$2.96

7

CIRCLIP

09380-25010

$2.91

8

SHAFT, DRIVE This part replaces 24131-28C01.

24131-28C03

Unavailable

9

GEAR, 1ST DRIVEN (NT:28) This part replaces 24311-28C01.

24311-28C02

Unavailable

10

GEAR, 2ND DRIVEN (NT:29)

24321-28C10

Unavailable

11

GEAR,3RD DRIVEN This part replaces 24331-28C02.

24331-28C03

Unavailable

12

GEAR, 4TH DRIVEN (NT:22)

24341-28C20

Unavailable

13

GEAR, 5TH DRIVEN (NT:23)

24351-28C20

Unavailable

14

BUSH (20X24X10)

09300-20037

$17.90

15

BUSH (25X28X10)

09300-25031

$19.13

16

WASHER, 2ND DRIVE GEAR This part replaces 08211-17301.

09181-17223

$2.96

17

THRUST WASHER

08211-20301

$2.35

18

WASHER, 2ND (22X34X1.5) This part replaces 08211-22342.

09181-22240

$3.49

19

WASHER, 5TH DRIVE This part replaces 08211-25341.

09181-25167

$3.12

20

CIRCLIP

09380-25010

$2.91

21

WASHER LOCK (25.1X31X1.0)

09167-25012

$3.70

22

BEARING (25X52X15)

09262-25003

$24.83

23

BEARING (17X40X12)

09262-17023

$16.75

24

BEARING (17X40X12)

09262-17023

$16.75

25

BEARING (22X56X15)

09262-22023

Unavailable

26

OIL SEAL (28X38X6)

09283-28020

$9.93

27

RETAINER This part replaces 24741-20A10.

24741-21A00

$2.81

28

SCREW This part replaces 02112-06128.

02112-06127

$1.84

29

GEAR, KICK IDLE (NT:27) This part replaces 26260-28C01.

26260-05D00

Unavailable

30

WASHER (17X24X0.5) This part replaces 08221-17245.

09181-17130

$2.96

31

SNAP RING | MODEL P

09380-17001

$1.98

31

CIRCLIP | MODEL R This part replaces 08331-31176.

08331-31179

$1.90

32

SPROCKET, ENGINE (NT:13) This part replaces 27511-14310.

27511-37F00

$25.05

32

SPROCKET, ENGINE (NT:14) | OPT This part replaces 27511-14300.

27511-47D00

$30.15

32

SPROCKET (NT:15) | OPT

27511-14320

Unavailable

33

SPACER, ENGINE SPROCKET

27531-28C00

$13.30

34

CIRCLIP

09380-22006

$3.10

35

O-RING (D:1.9, ID:21.8)

09280-21010

$2.27

36

CHAIN,DRIVE ASS | 116->112L This part replaces 27600-28C01-116.

27600-46K00-116

$167.95

36

CHAIN,DRIVE ASS | OPT, 116->114L This part replaces 27600-28C01-116.

27600-46K00-116

$167.95

37

NO DESCRIPTION AVAILABLE This part replaces 27620-28C00.

27620-28C01

Unavailable

37

JOINT, CHAIN (RK)

27620-14262

Unavailable
