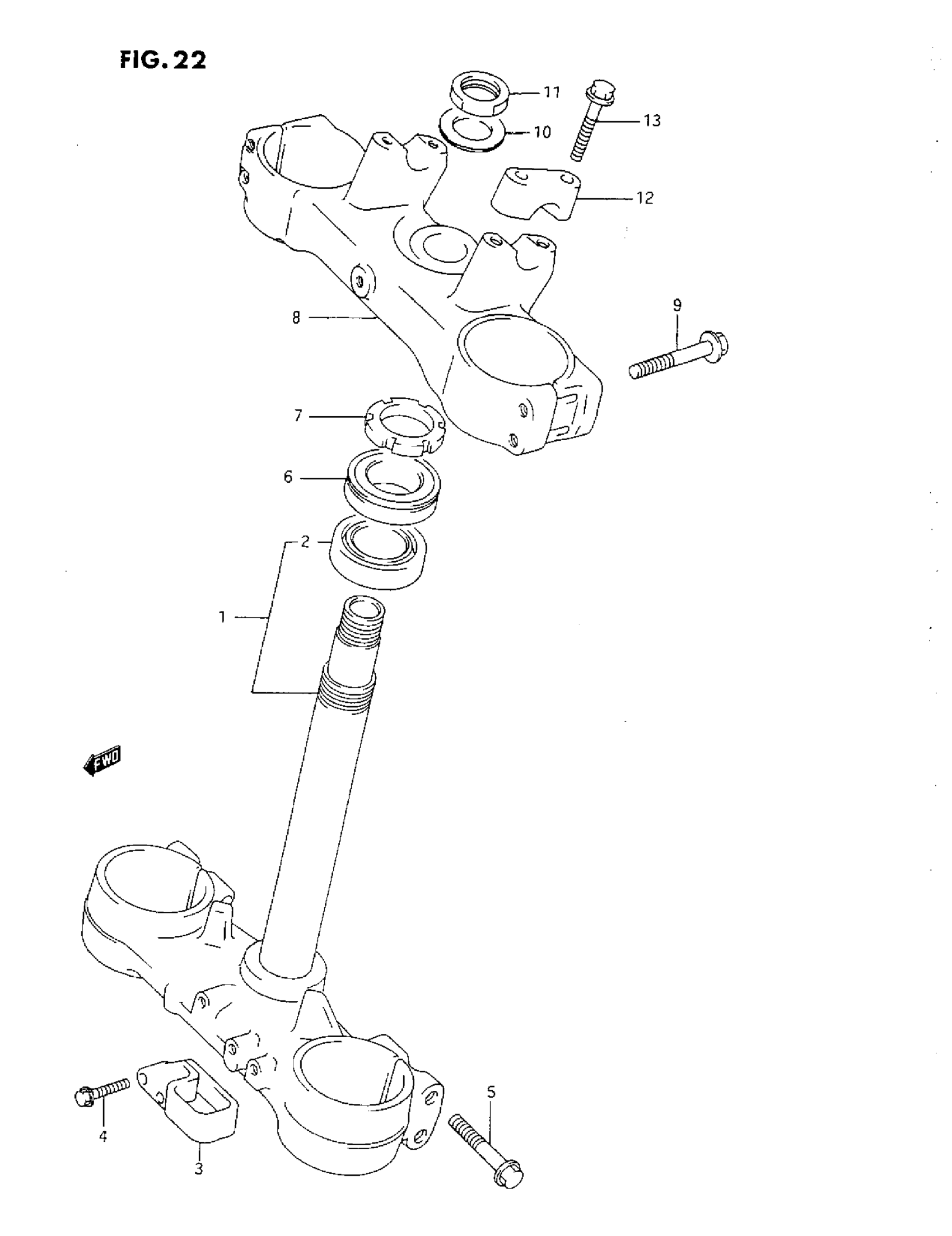

Suzuki RM250 (1993) STEERING STEM Diagram

#

Description
Price

1

STEM, STEERING This part replaces 51410-28E00.

51410-29E50

Unavailable

2

.BEARING (30X52X16) This part replaces 09265-30014.

09265-30035

$46.72

3

GUIDE, HOSE

58621-27C40

$25.70

4

BOLT This part replaces 58629-27C40.

01547-06257

$2.03

5

BOLT This part replaces 51328-27C40.

51166-27E30

$4.37

6

.BEARING (30X52X16) This part replaces 09265-30014.

09265-30035

$46.72

7

NUT STEERING

51631-28E00

$28.88

8

HEAD, STEERING STEM

51310-28E00

Unavailable

9

BOLT This part replaces 51328-27C40.

51166-27E30

$4.37

10

WASHER,STEM HEAD This part replaces 51356-27C40.

51356-29E00

$15.29

11

NUT, STEM HEAD

51353-27C40

$27.87

12

HOLDER, HANDLE

56211-27100

$15.23

13

BOLT,HANDLE HOLDER (8X35)

51321-27C40

$4.96
