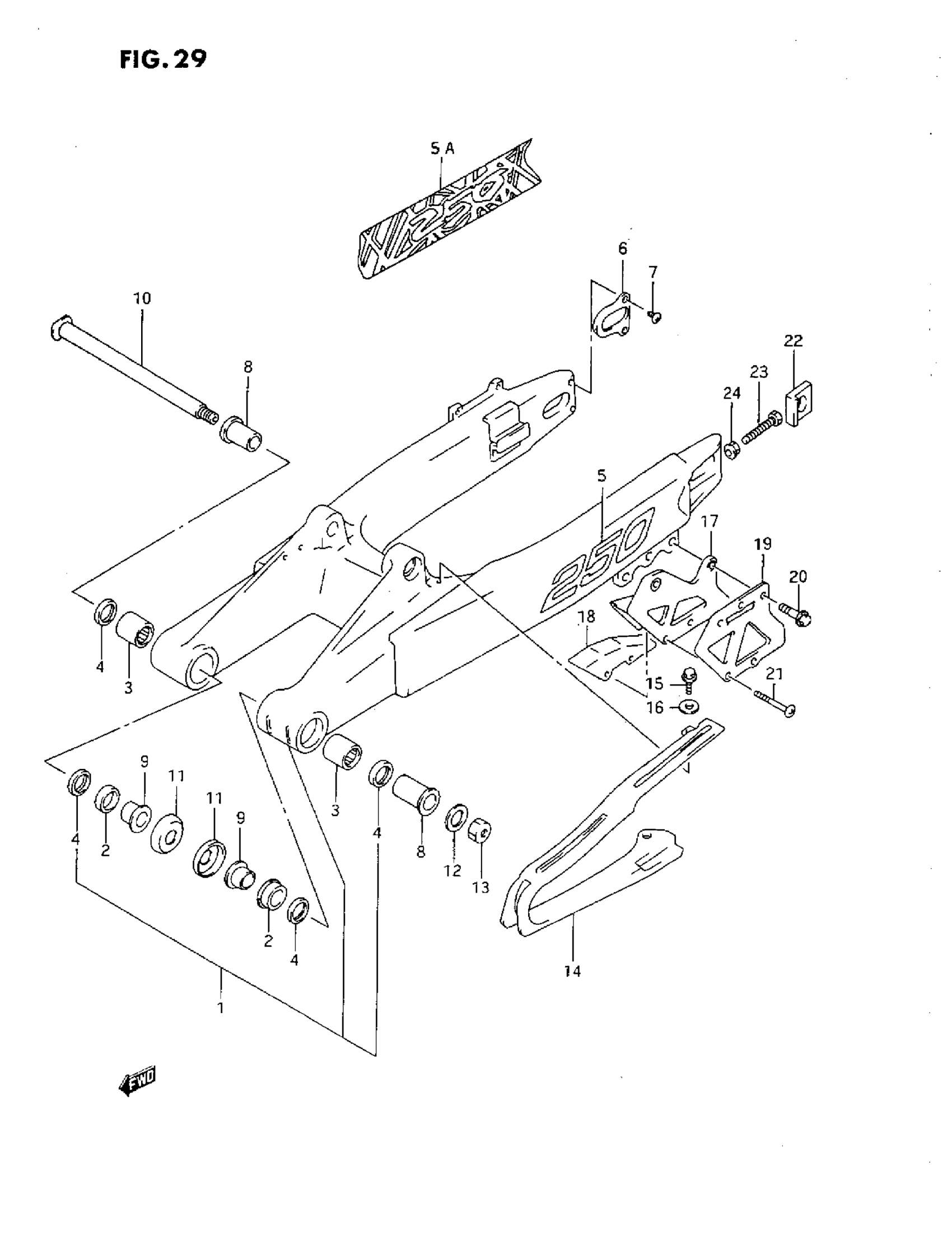

Suzuki RM250 (1993) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR | MODEL P ->61000-28E11

61000-28E00

Unavailable

1

SWINGING ARM ASSY, REAR | MODEL R ->61000-28E11 This part replaces 61000-28E10.

61000-28E11

Unavailable

1

SWINGING ARM ASSY, REAR | WITH OUT EMBLEM

61000-28E11

Unavailable

2

BUSH

61261-28C00

Unavailable

3

BEARING

09263-22017

$22.58

4

.SEAL,OIL (21X29X4) This part replaces 09285-22001.

09285-22006

$3.83

5

EMBLEM | MODEL P FOR 61000-28E00

68381-28C10-12R

Unavailable

5

EMBLEM, 250 | MODEL R FOR 61000-28E10 This part replaces 68381-28E00-C2N.

68381-29E00-C2N

Unavailable

6

PLATE, INNER

61128-28E00

Unavailable

7

SCREW (5X8) This part replaces 09120-05004.

09126-05009

$2.28

8

SPACER This part replaces 61251-28C00.

61251-05D00

Unavailable

9

SPACER, INNER

61252-28C00

Unavailable

10

SHAFT, PIVOT

61211-28C00

$67.10

11

COVER,DUST This part replaces 61262-28C10.

61262-28C11

$7.01

12

WASHER | MODEL P This part replaces 08322-11168.

08322-01167

$2.10

12

WASHER | MODEL R This part replaces 08322-01163.

08322-0116A

$1.84

13

NUT

09159-16007

$12.61

14

BUFFER, CHAIN DEFENSE

61273-27C01

$55.52

15

BOLT | MODEL P

01547-06167

$1.65

15

BOLT | MODEL R This part replaces 01547-06163.

01547-0616B

$2.45

16

WASHER

09169-06057

$3.18

17

GUIDE, CHAIN

61341-27C20

$45.08

18

DEFENSE, CHAIN GUIDE

61348-27C20

$32.18

19

PLATE, GUIDE OUTER

61342-28E00

$60.18

20

BOLT, UPPER | MODEL P

01547-06207

$2.01

20

..BOLT | MODEL R This part replaces 01547-06203.

01547-0620B

$2.45

21

SCREW, UNDER

09126-06013

$3.60

22

WASHER, CHAIN ADJUSTER | MODEL P This part replaces 61445-28E00.

61445-28E10

Unavailable

22

WASHER, CHAIN ADJUSTER | MODEL R

61445-28E10

Unavailable

23

BOLT

09100-08287

$3.10

24

NUT

09159-08034

$1.62
