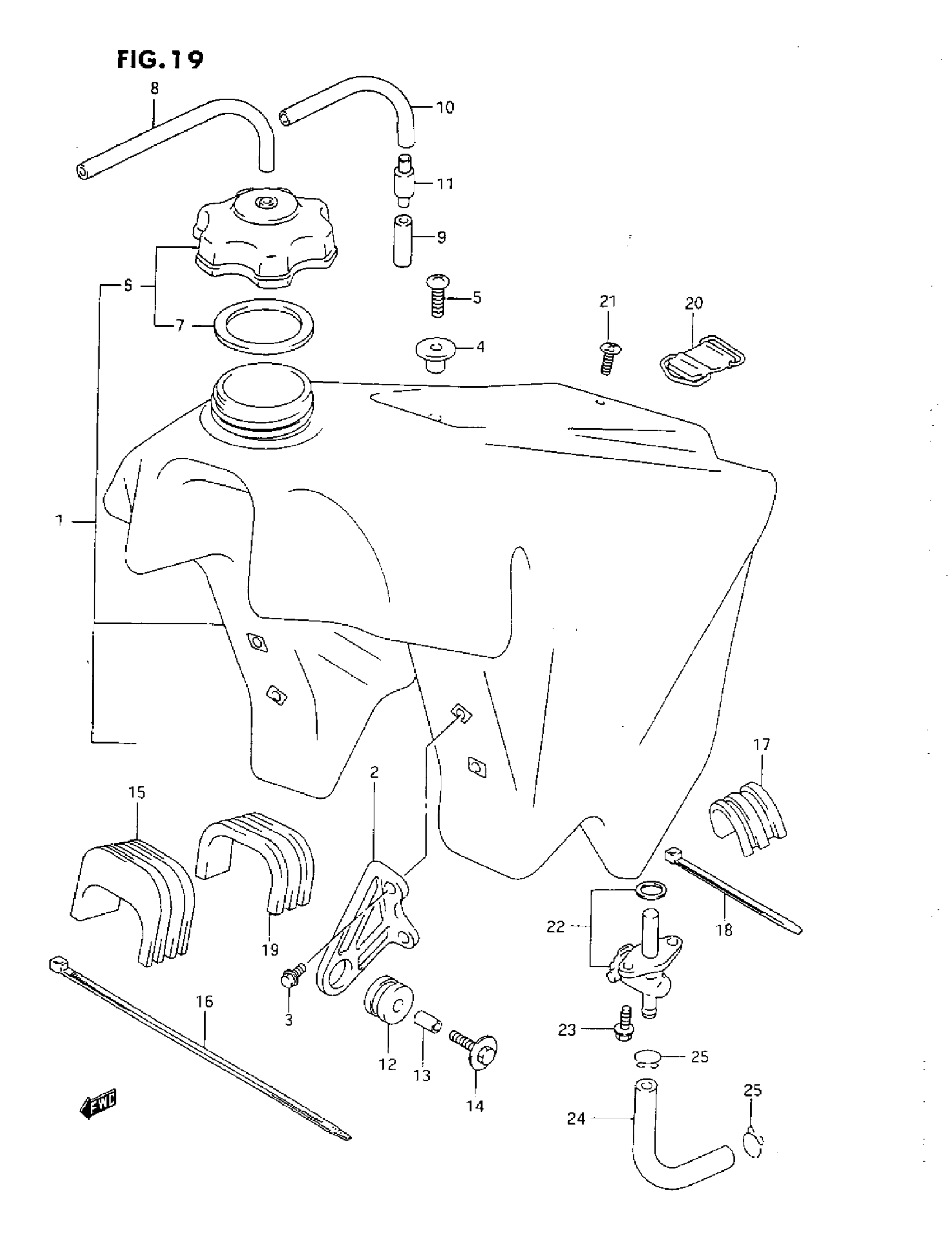

Suzuki RM250 (1993) FUEL TANK Diagram

NO DESCRIPTION AVAILABLE This part replaces 44100-43860-1TD.

44100-43861-1TD

Unavailable

BRACKET, FRONT RH

44131-28E00

Unavailable

BRACKET, FRONT LH

44132-28E00

Unavailable

BOLT, FRONT

01547-06127

$1.65

HOOK, SEAT FR | MODEL P This part replaces 44132-27C00.

44132-27C01

$17.17

HOOK, SEAT FR | MODEL R

44132-27C01

$17.17

SCREW, HOOK

02142-06207

$1.49

CAP SET,FUEL TA This part replaces 44200-27860.

44200-27871

$22.96

GASKET,FUEL TANK FILLER CAP This part replaces 44248-27C00.

44248-27C01

$4.21

HOSE,5X10X600 | MODEL P This part replaces 09352-50823-300.

44421-13ER0

$10.06

HOSE,5X10X600 | MODEL R This part replaces 09352-50823-300.

44421-13ER0

$10.06

HOSE,5X10X600 | MODEL R This part replaces 09352-50823-300.

44421-13ER0

$10.06

PLUG | MODEL R

44240-28E00

Unavailable

CUSHION (8.7X26X14) This part replaces 14762-01B01.

14762-01B02

$3.74

SPACER This part replaces 09180-06062.

09180-06268

$2.19

BOLT

09118-06109

Unavailable

CUSHION, UPPER NO.2 | MODEL P This part replaces 44541-28E00.

44541-28E01

Unavailable

CUSHION, UPPER NO.1 | MODEL R

44541-28E01

Unavailable

CLAMP

09407-30402

$4.11

CUSHION, UPPER REAR

44542-26C00

$9.33

CLAMP

09407-14407

$3.57

CUSHION, UPPER NO.2 | MODEL P

44541-43D10

Unavailable

CUSHION, UPPER NO.1 | MODEL R This part replaces 44541-43D20.

44541-43D10

Unavailable

BAND, REAR

44560-27C00

$7.69

SCREW | MODEL P This part replaces 02142-06164.

02142-0616A

$1.49

SCREW | MODEL R This part replaces 02142-06163.

02142-0616A

$1.49

COCK ASSY, FUEL | MODEL P This part replaces 44300-28E00.

44300-28E10

$74.53

COCK ASSY, FUEL | MODEL R This part replaces 44300-28E01.

44300-28E10

$74.53

SCREW This part replaces 02112-36168.

02112-36167

$2.34

HOSE(6.5X11.5X6 This part replaces 09354-65113-300.

09355-65001-600

$12.00

CLIP

09401-11101

$2.36
