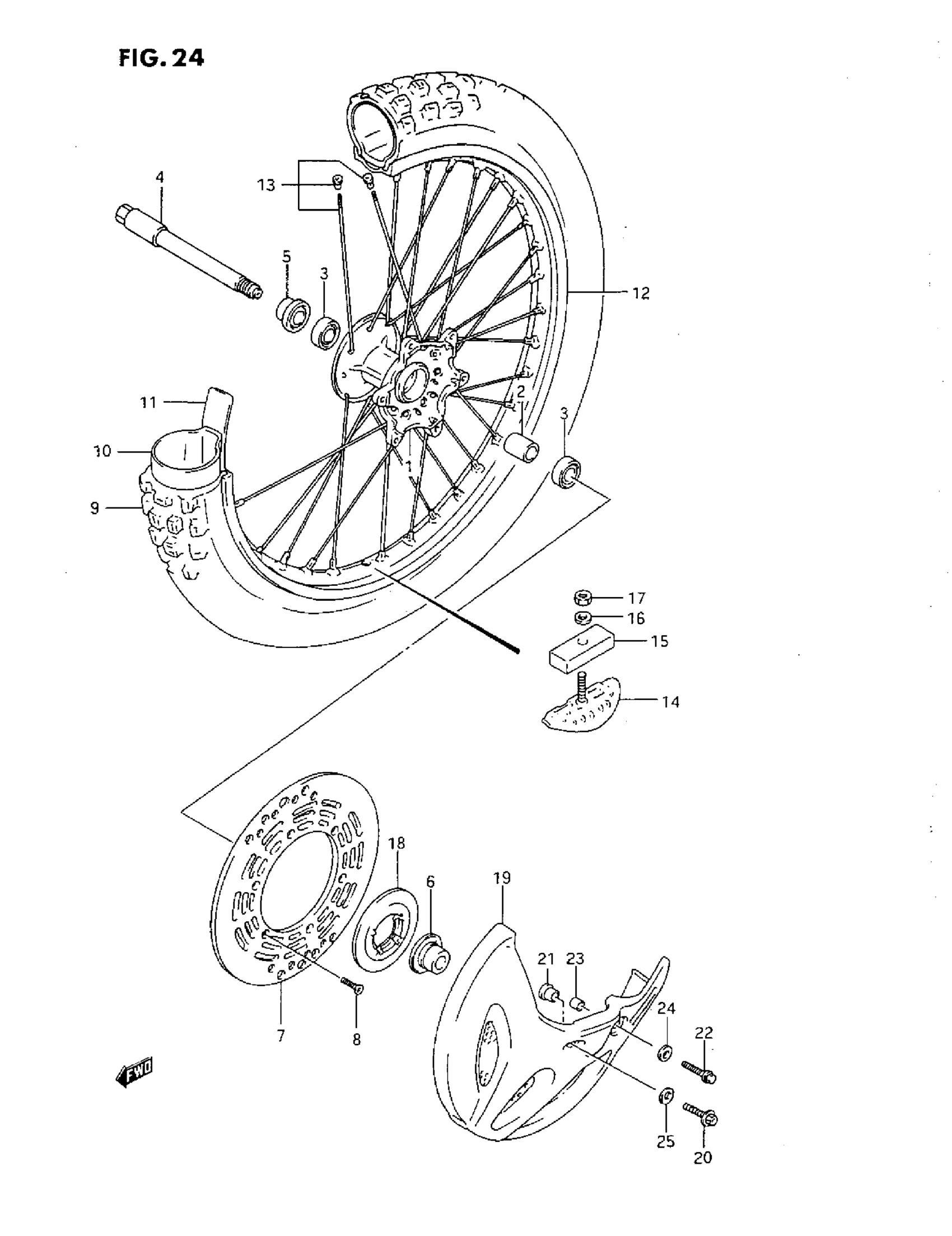

Suzuki RM250 (1993) FRONT WHEEL Diagram

HUB, FRONT WHEEL

54111-27C00

Unavailable

SPACER, FRONT HUB This part replaces 54731-43D00.

54730-01B00

$53.92

BEARING

08133-60037

$30.28

AXLE, FRONT

54711-01B02

Unavailable

SPACER, AXLE RH

54740-01B01

Unavailable

SPACER, AXLE, LH This part replaces 54750-27C10.

54750-05D00

Unavailable

DISC, FRONT BRAKE

59221-28C00

Unavailable

SCREW

59421-29E00

$4.82

TIRE, FRONT (80/100-21) | MODEL P This part replaces 55110-28E00.

55110-28C21

Unavailable

NO DESCRIPTION AVAILABLE | MODEL R This part replaces 55110-28E20.

55110-28E21

Unavailable

TIRE, FRONT | MODEL P This part replaces 55200-16510.

55200-16511

$36.73

TIRE, FRONT | MODEL R This part replaces 55200-28E20.

55200-16511

$36.73

PROTECTOR, INNER TUBE | MODEL P This part replaces 55261-16510.

55261-14540

$3.83

PROTECTOR, INNER TUBE | MODEL R This part replaces 55261-28E20.

55261-14540

$3.83

RIM, FRONT WHEEL (1.60X21) This part replaces 55311-28C00.

55311-28C01

Unavailable

SPOKE SET, FRONT WHEEL

55320-28E00

$137.05

STOPPER, BEAD

65270-14300

$52.73

CUSHION, BEAD STOPPER

65271-27C00

$7.42

WASHER | MODEL P This part replaces 08322-11088.

08322-01087

$2.13

WASHER | MODEL R This part replaces 08322-01083.

08322-0108A

$1.92

NUT | MODEL P This part replaces 08310-12088.

08310-00087

$2.13

NUT | MODEL R This part replaces 08310-00083.

08310-0008A

$1.84

CAP, HUB LH

54138-27C10

Unavailable

COVER, FRONT BRAKE DISC (WHITE) | MODEL P

59231-28C01-30H

Unavailable

COVER, FRONT BRAKE DISC (YELLOW) | MODEL R

59231-28C01-25Y

Unavailable

BOLT, CENTER

09103-08310

Unavailable

WASHER

09169-08047

Unavailable

BOLT, REAR | MODEL P

01547-06257

$2.03

BOLT, FINAL GEAR CASE COVER | MODEL R This part replaces 01547-06253.

01547-0625B

$2.45

SPACER

09180-06116

Unavailable

WASHER (6.5X18X1.0)

09160-06028

$1.49

WASHER

09160-08043

$1.83
