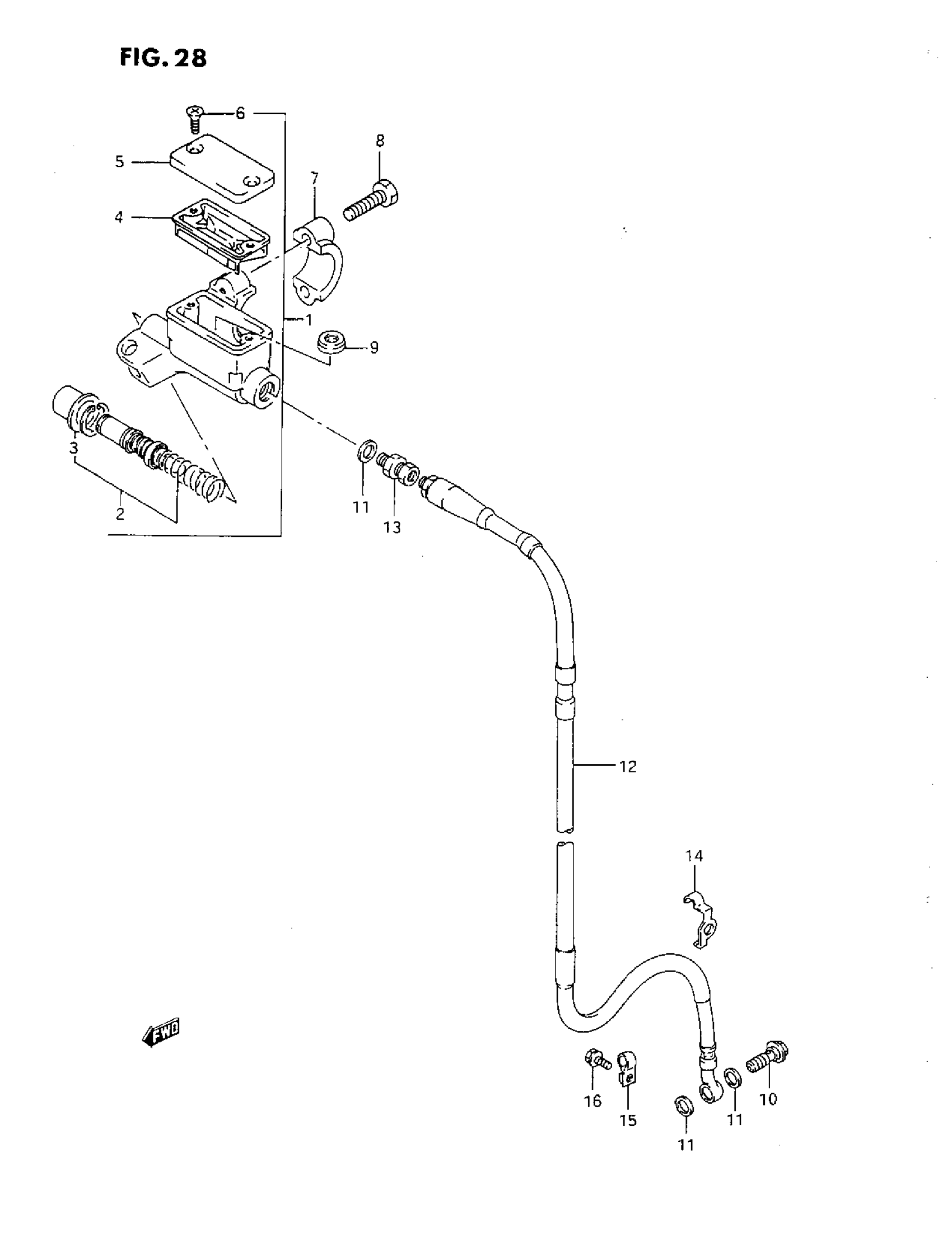

Suzuki RM250 (1993) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER

59600-27C01

$292.48

2

PISTON & CUP SET

59600-27820

$60.97

3

BOOT

59666-44300

$5.80

4

DIAPHRAGM

59667-14500

$10.12

5

CAP

59669-27C01

$23.32

6

SCREW

69689-49300

$1.91

7

HOLDER

59671-27C00

$17.02

8

BOLT

59675-27C00

$3.54

9

SEPARATOR

59748-14500

$11.87

10

UNION | MODEL P This part replaces 09360-10034.

09360-10062

$6.43

10

UNION | MODEL R This part replaces 09360-10040.

09360-10062

$6.43

11

WASHER (10X15X1.5)

09161-10009

$1.84

12

HOSE, FRONT BRAKE This part replaces 59480-28C02.

59480-28E10

Unavailable

13

ADAPTER, BRAKE HOSE

59290-14501

$36.17

14

CLAMP, BRAKE HOSE NO.1

59246-28C01

Unavailable

15

CLAMP, BRAKE HOSE NO.2

59247-28C01

Unavailable

16

BOLT (6X10) This part replaces 09103-06145.

09103-06188

$2.90
