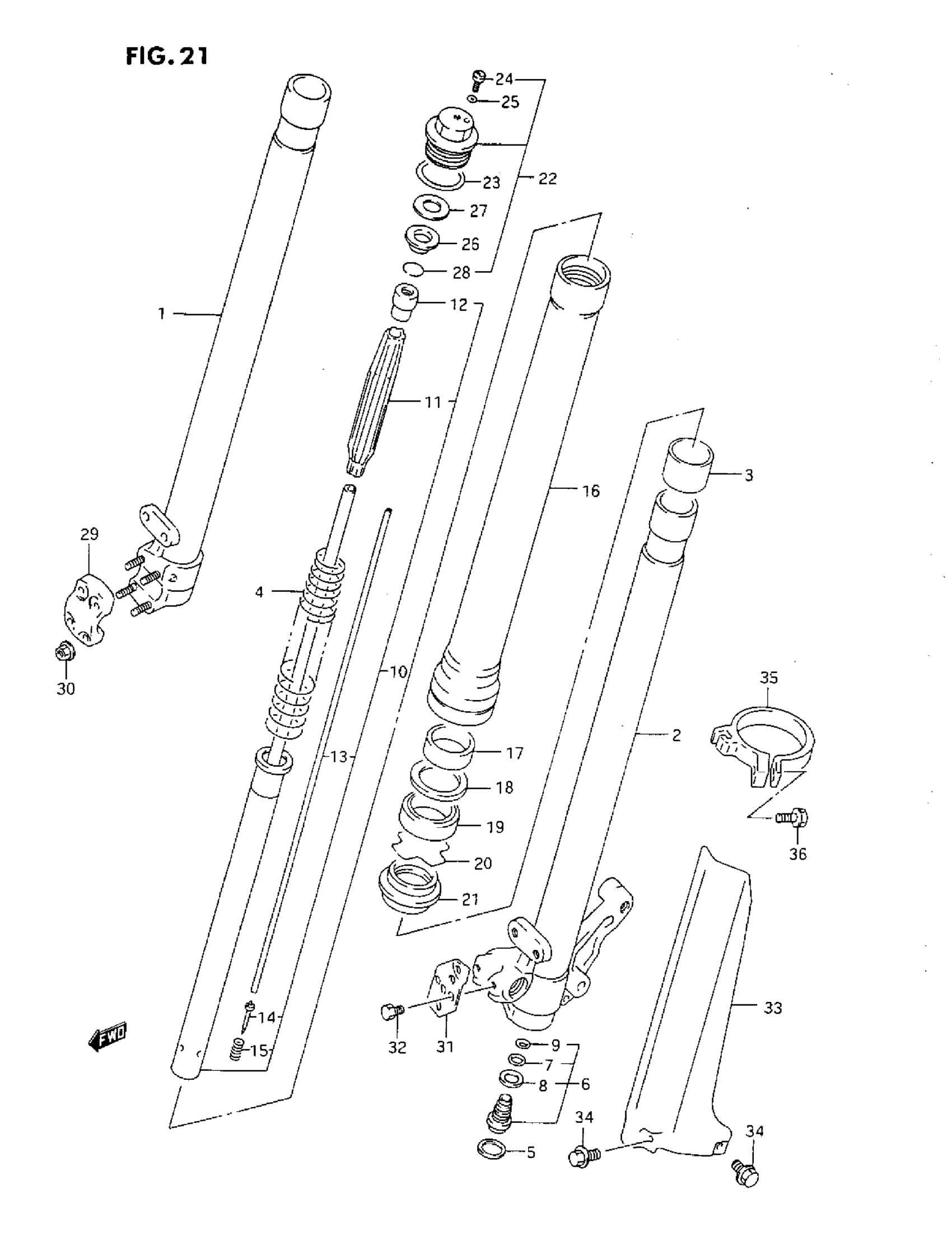

Suzuki RM250 (1993) FRONT DAMPER (P) Diagram

#

Description
Price

1

DAMPER ASSY, RH

51103-28E10

Unavailable

1

DAMPER ASSY, LH

51104-28E10

Unavailable

1

TUBE, INNER RH

51110-28E00

Unavailable

2

TUBE, INNER LH

51120-28E00

Unavailable

3

BUSH, SLIDE

51121-27C40

Unavailable

4

SPRING, MAIN

51171-28E00

Unavailable

5

RING, CENTER BOLT STOPPER

51133-43D00

Unavailable

6

BOLT ASSY, CENTER

51170-28E00

Unavailable

7

O-RING, CENTER BOLT UPPER

51177-43D00

Unavailable

8

GASKET

51148-43D00

Unavailable

9

O-RING, CENTER BOLT UPPER

51174-43D00

$4.82

10

DAMPER, FRONT

51190-28E00

Unavailable

11

GUIDE, PUSH ROD SPRING

51172-28E00

Unavailable

12

NUT, PUSH

51129-43D00

Unavailable

13

ROD, PUSH

51191-28E00

Unavailable

14

NEEDLE

51192-43D00

Unavailable

15

SPRING, PUSH ROD

51193-28E00

$6.30

16

TUBE, OUTER

51130-28E00

Unavailable

17

BUSH, GUIDE

51167-28E00

Unavailable

18

SPACER, SEAL

51158-27C40

$8.53

19

SEAL, OIL This part replaces 51153-43D00.

51153-28E30

$32.37

20

RING, OIL SEAL STOPPER

51156-27C40

$5.19

21

SEAL, DUST This part replaces 51173-43D00.

51173-28E40

$30.86

22

BOLT ASSY, FORK

51351-28E00

Unavailable

23

O-RING, FORK BOLT

51117-27C40

$6.22

24

BOLT, PLUG

51357-27C40

$10.45

25

O RING, ROD This part replaces 51358-27C40.

51117-19C10

$4.10

26

SEAT, SPRING

51175-28E00

Unavailable

27

WASHER, THRUST

51176-28E00

Unavailable

28

RING, STOPPER

51133-28E00

Unavailable

29

HOLDER, AXLE RH

51132-27C40

Unavailable

30

NUT

08319-31067

$2.03

31

GUIDE, HOSE LH

59248-27C40

Unavailable

32

BOLT This part replaces 59249-27C40.

01500-05087

$2.13

33

PROTECTOR, RH This part replaces 51501-43D00.

51501-29E00

$123.14

33

PROTECTOR, LH This part replaces 51511-43D00.

51511-29E00

Unavailable

34

BOLT, PROTECTOR

58627-27C40

$3.77

35

GUIDE, FORK PROTECTOR

51210-43D00

Unavailable

36

BOLT This part replaces 58628-43D00.

01547-06207

$2.01
