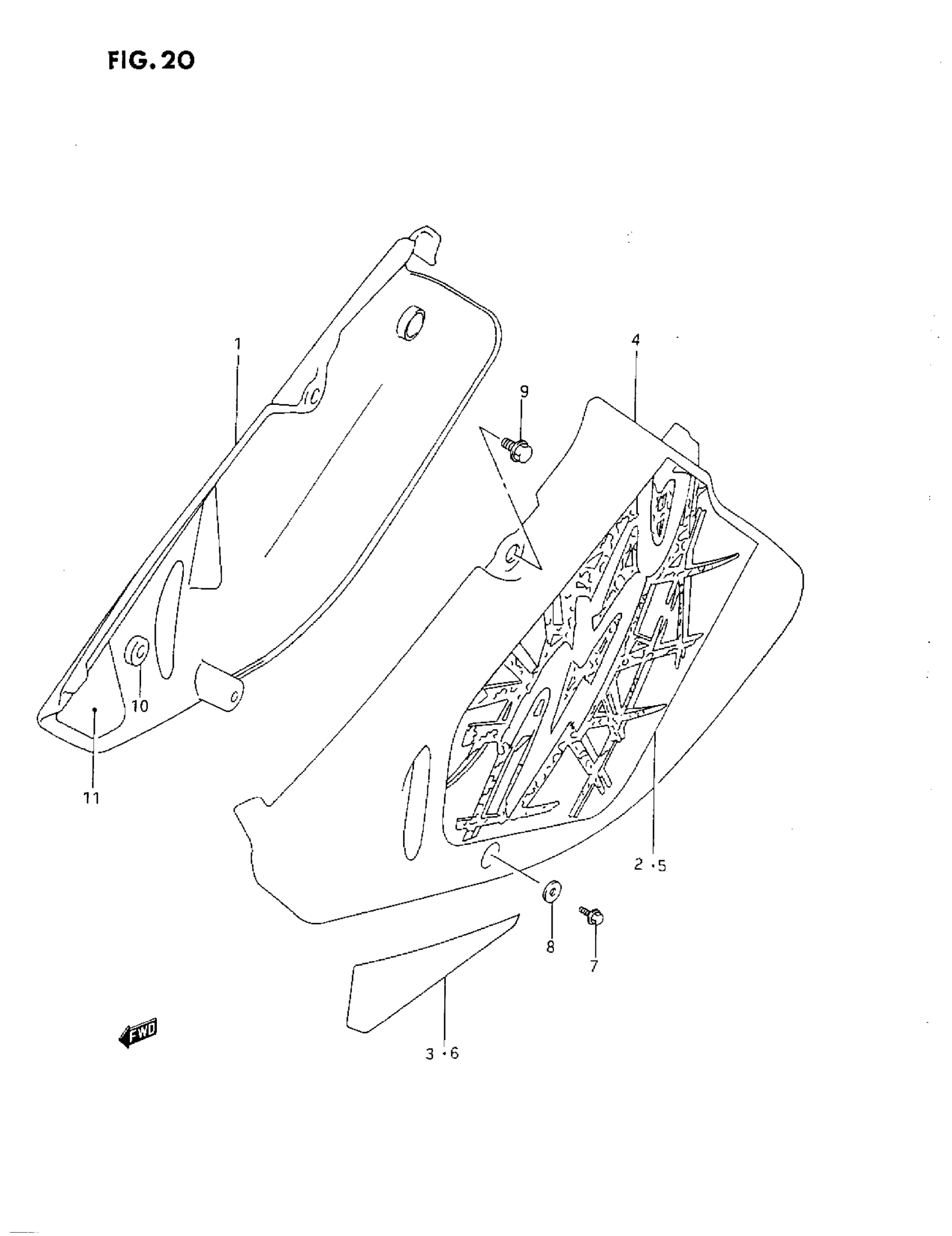

Suzuki RM250 (1993) FRAME COVER Diagram

#

Description
Price

1

COVER, FRAME RH (WHITE) | MODEL P This part replaces 47111-28E00-30H.

47111-28E01-30H

Unavailable

1

COVER, FRAME RH (WHITE) | MODEL R

47111-28E01-30H

Unavailable

2

EMBLEM, RH | MODEL P

68132-28E00-A4J

Unavailable

3

EMBLEM, RH | MODEL R

68132-28E10

Unavailable

4

COVER, FRAME LH (WHITE) | MODEL P This part replaces 47211-28E00-30H.

47211-28E01-30H

Unavailable

4

COVER, FRAME LH (WHITE) | MODEL R

47211-28E01-30H

Unavailable

5

EMBLEM, LH | MODEL P

68142-28E00-A4J

Unavailable

6

EMBLEM, LH | MODEL R

68142-28E10

Unavailable

7

BOLT, FRONT

01547-06127

$1.65

8

WASHER (6.3X16X1)

09169-06053

$1.49

9

BOLT This part replaces 01517-08128.

01550-08127

$2.85

10

CUSHION

09320-09042

Unavailable

11

HEAT SHIELD, RH

47166-28E00

Unavailable
