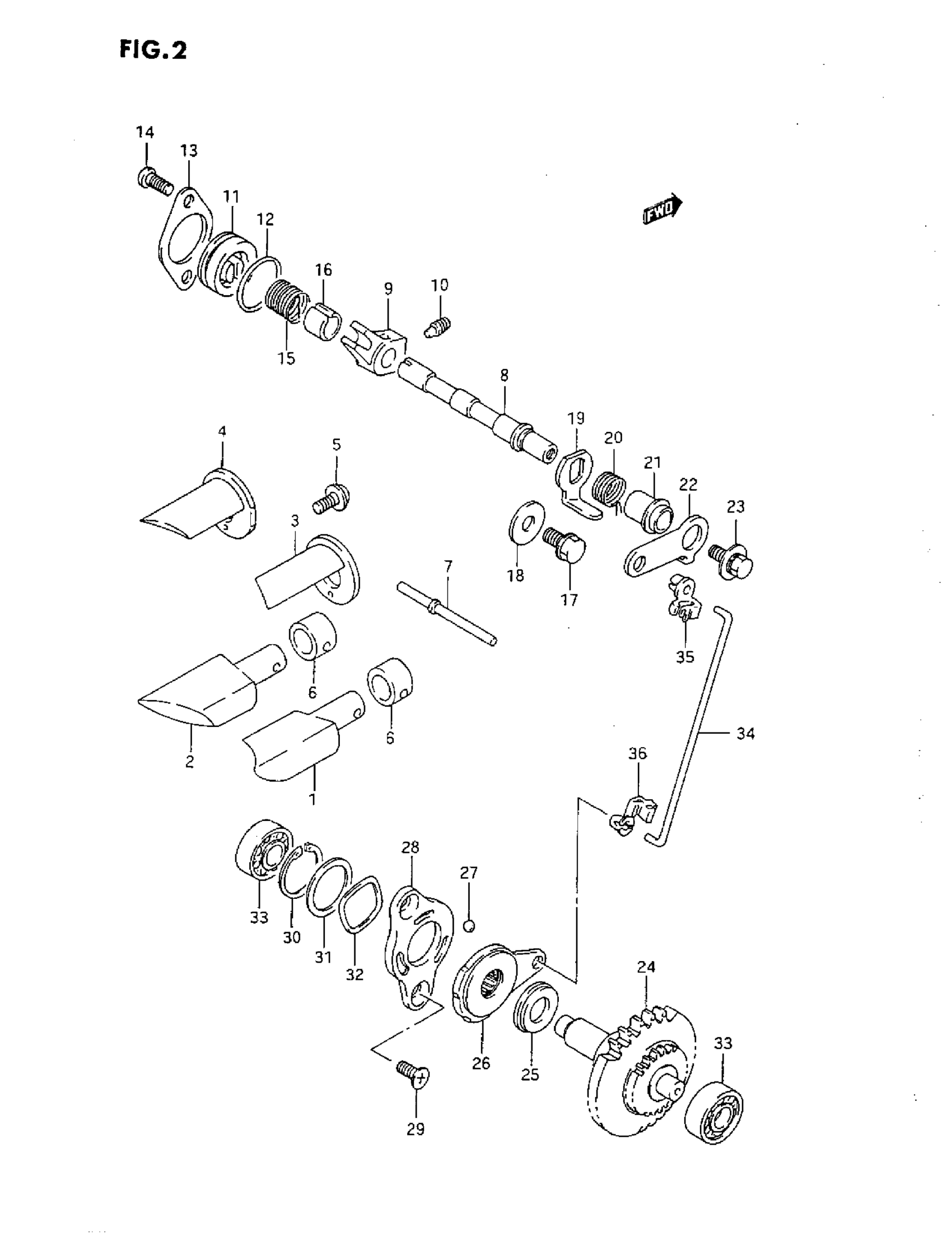

Suzuki RM250 (1993) EXHAUST VALVE Diagram

#

Description
Price

1

VALVE, EXHAUST RH | MODEL P

11254-28E00

Unavailable

1

VALVE, EXHAUST RH | MODEL R

11254-28E10

Unavailable

2

VALVE, EXHAUST LH | MODEL P

11255-28E00

Unavailable

2

VALVE, EXHAUST LH | MODEL R

11255-28E10

Unavailable

3

GUIDE, EXHAUST VALVE RH | MODEL P

11261-28E00

Unavailable

3

GUIDE, EXHAUST VALVE RH | MODEL R

11261-28E10

Unavailable

4

GUIDE, EXHAUST VALVE LH | MODEL P

11262-28E00

Unavailable

4

GUIDE, EXHAUST VALVE LH | MODEL R

11262-28E10

Unavailable

5

SCREW | MODEL P This part replaces 02112-15128.

02142-05127

$1.97

5

.SCREW | MODEL R This part replaces 02112-15123.

02142-0512A

$1.49

6

SPACER, EXHAUST VALVE

11263-29E00

Unavailable

7

PIN This part replaces 11253-01B31.

11253-01B32

$24.17

8

NO DESCRIPTION AVAILABLE This part replaces 11259-28C00.

11259-28C01

Unavailable

9

ARM, EXHAUST VALVE SHAFT This part replaces 11264-00B23.

11264-00B24

$23.32

10

SCREW

09134-06013

$3.87

11

CAP, EXHAUST VALVE This part replaces 11258-27C00.

11258-27C01

Unavailable

12

O RING(D:1.9,ID This part replaces 09280-23002.

09280-23003

$1.80

13

RETAINER, EXHAUST VALVE This part replaces 11265-00B21.

11265-00B22

Unavailable

14

SCREW | MODEL P This part replaces 02112-05128.

02112-05127

$1.97

14

BOLT | MODEL R This part replaces 01500-05123.

01500-0512B

$2.10

15

SPRING

09444-16007

Unavailable

16

SPACER

11269-00B20

Unavailable

17

BOLT | MODEL P

01547-06107

$1.65

17

BOLT | MODEL R This part replaces 01547-06103.

01547-0610B

$2.45

18

WASHER

08212-06201

$1.67

19

LEVER, EXHAUST VALVE NO.2 | MODEL P This part replaces 11267-00B20.

11267-00B21

$4.46

19

LEVER, EXHAUST VALVE NO.2 | MODEL R

11267-00B21

$4.46

20

SPRING

09444-15008

$4.64

21

SPACER This part replaces 11268-01B00.

11268-01B01

$8.65

22

LEVER, EXHAUST VALVE NO.1

11266-28C10

Unavailable

23

BOLT | MODEL P

09118-05005

$3.20

23

BOLT | MODEL R

09118-05003

$2.69

24

GOVERNOR ASSY, EXHAUST VALVE

12670-28C10

Unavailable

25

BEARING

09263-10002

$10.19

26

ACTUATOR, EXHAUST VALVE

12680-01820

Unavailable

27

BALL

06111-06003

$1.49

28

STATOR, ACTUATOR | MODEL P

12682-00B20

Unavailable

28

STATOR, ACTUATOR | MODEL R

12682-00B02

Unavailable

29

SCREW (5X10)

09120-05003

$1.91

30

CIRCLIP

09380-19003

$2.15

31

SHIM (19.1X25X0.3)

09181-19004

$3.78

32

LOCK WASHER

09164-19001

$4.69

33

BEARING

09262-08005

$12.67

34

ROD, EXHAUST VALVE | MODEL P

12685-28C10

Unavailable

34

ROD, EXHAUST VALVE | MODEL R

12685-28E10

Unavailable

35

BUSH, EXHAUST VALVE ROD NO.1

12686-01B00

$1.65

36

BUSH, EXHAUST VALVE ROD NO.2

12687-01B00

$1.65
