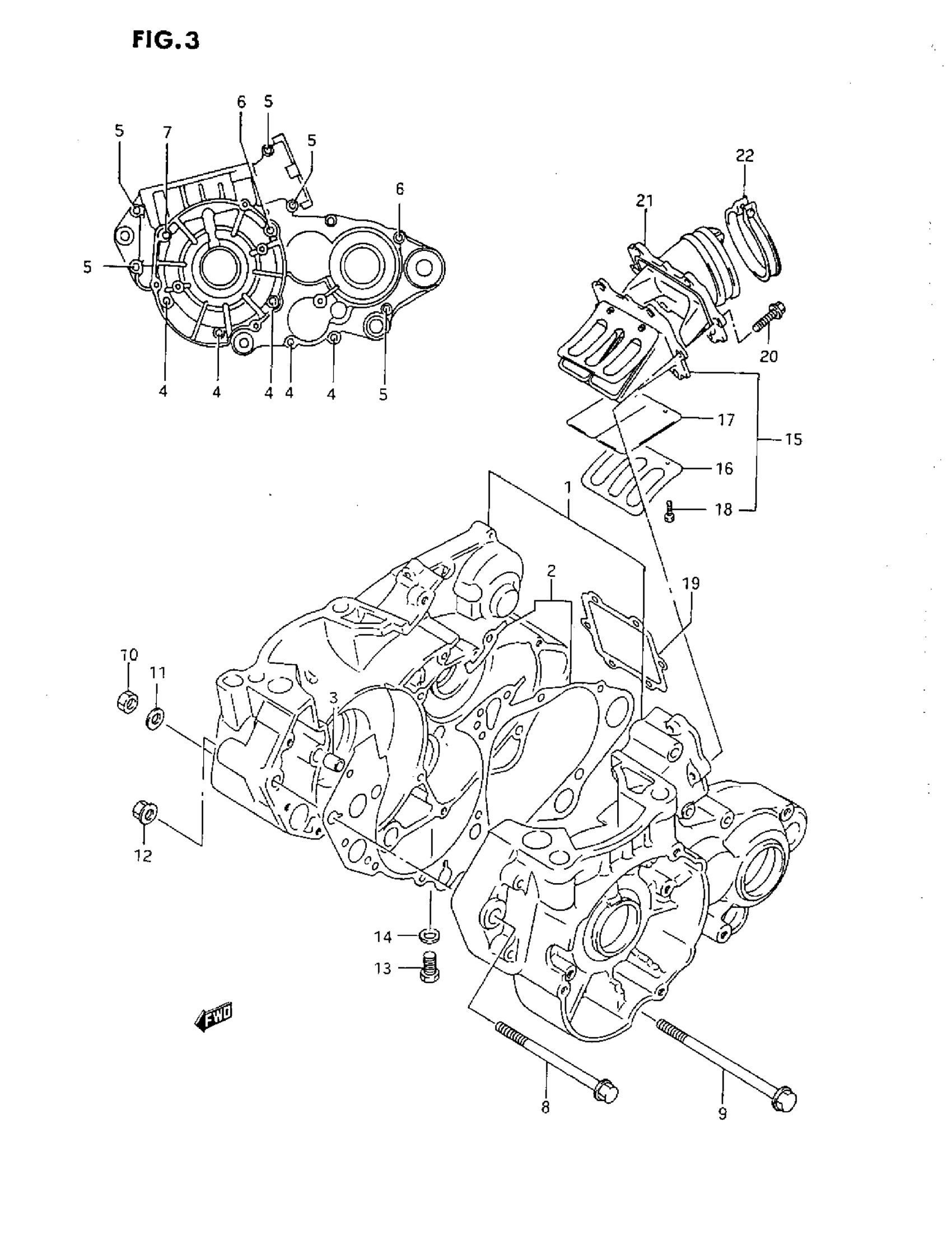

Suzuki RM250 (1993) CRANKCASE (P) Diagram

#

Description
Price

1

CRANKCASE SET This part replaces 11301-28813.

11301-28814

Unavailable

2

GASKET, CRANKCASE

11481-28C00

Unavailable

3

PIN

04211-09129

$1.65

4

BOLT

01547-06407

$2.32

5

BOLT

01547-06507

$2.41

6

BOLT

01547-06557

$2.32

7

BOLT

01547-06607

$3.18

8

BOLT (8X102)

09103-08296

$7.11

9

BOLT (8X140)

09103-08317

Unavailable

10

NUT

09159-08034

$1.62

11

WASHER

09164-08020

$2.06

12

NUT

09159-08034

$1.62

13

PLUG, DRAIN This part replaces 01107-08167.

01500-0816B

$2.50

14

GASKET (8.2X14X1) This part replaces 09168-08026.

09168-08016

$1.65

15

VALVE ASSY,REED This part replaces 13150-28E00.

13150-28E02

Unavailable

16

STOPPER,REED VA This part replaces 13152-28E00.

13152-28E01

Unavailable

17

VALVE,REED This part replaces 13153-28E00.

13153-28E01

$11.53

18

SCREW This part replaces 02112-33068.

02112-3306A

$1.99

19

GASKET, REED VALVE

13156-01C10

$3.38

20

BOLT

01547-06207

$2.01

21

PIPE,INTAKE This part replaces 13110-28E00.

13110-28E01

Unavailable

22

CLAMP This part replaces 09402-56208.

09402-56901

$5.36
