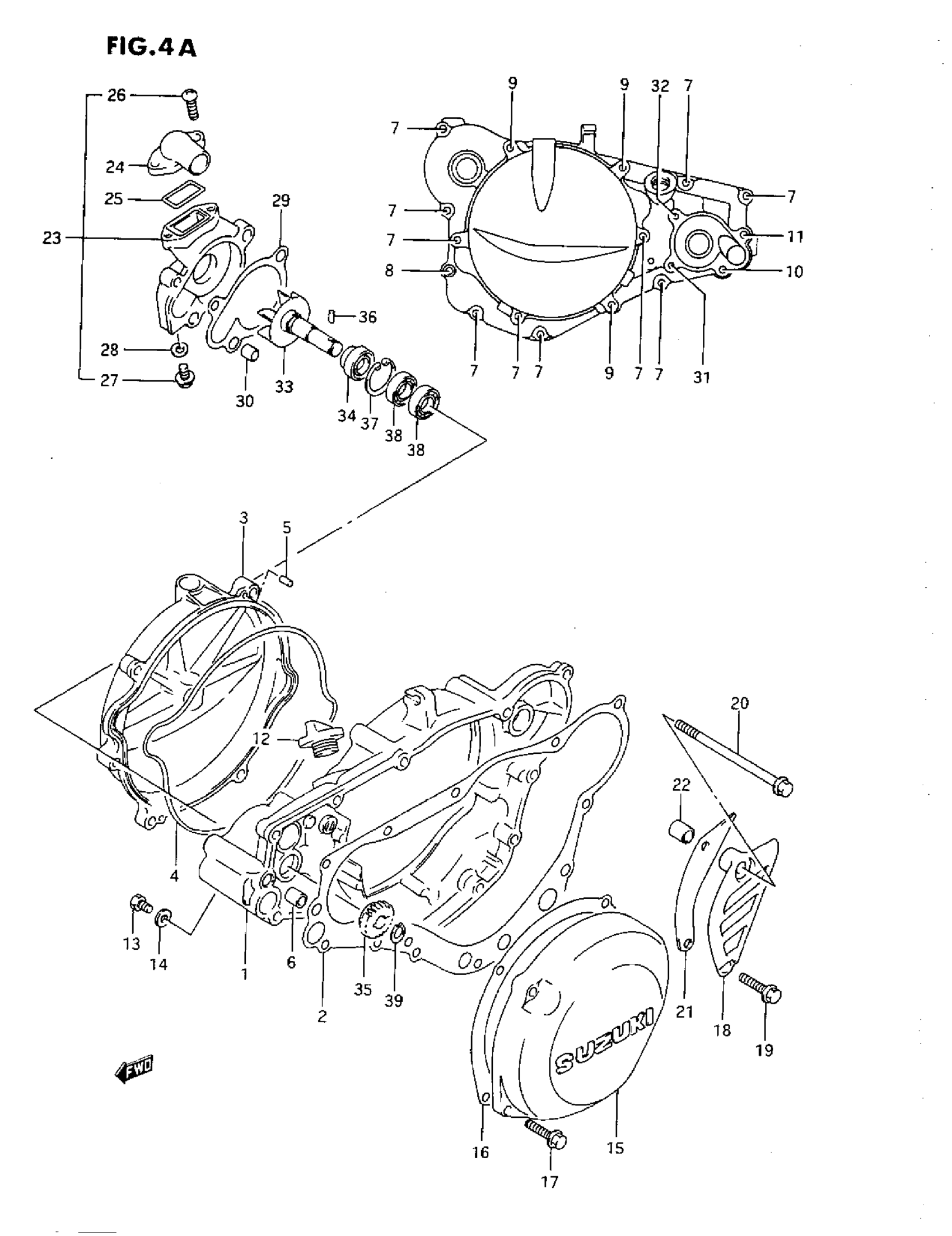

Suzuki RM250 (1993) CRANKCASE COVER-WATER PUMP (R) Diagram

#

Description
Price

1

COVER, CLUTCH

11340-28840

Unavailable

2

GASKET, CLUTCH COVER

11482-28E10

Unavailable

3

COVER, CLUTCH OUTER

11371-28E02

Unavailable

4

O-RING, CLUTCH COVER OUTER

11484-28C10

Unavailable

5

PIN (4X13.8)

04221-04089

$1.49

6

PIN

04211-09129

$1.65

7

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.45

8

BOLT, WATER PUMP This part replaces 01547-06353.

01547-0635B

$2.73

9

BOLT This part replaces 01547-06703.

01547-0670B

$3.29

10

BOLT This part replaces 01547-06803.

01547-0680B

$3.18

11

BOLT This part replaces 01547-06903.

01547-0690B

$3.20

12

PLUG SET This part replaces 09200-20810.

09200-20811

$4.02

13

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.49

14

GASKET

09168-06004

$1.49

15

COVER, MAGNETO

11351-28E10

Unavailable

16

GASKET, MAGNETO COVER

11483-28E10

Unavailable

17

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.45

18

COVER, ENGINE SPROCKET

11360-28E00

$32.00

19

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.45

20

.BOLT This part replaces 01547-06953.

01547-0695B

$3.37

21

PLATE, CHAIN GUIDE

27641-28C10

Unavailable

21

PLATE, CHAIN GUIDE | OPT, FOR NT:14

27641-28C00

Unavailable

21

PLATE, CHAIN GUIDE | OPT, FOR NT:15

27641-28C20

$12.13

22

SPACER

09180-06203

$2.71

23

CASE ASSY, WATER PUMP

17410-28E00

Unavailable

24

CONNECTOR

17412-28E00

Unavailable

25

O-RING

17414-14300

$2.99

26

SCREW This part replaces 02112-06164.

02112-0616A

$1.49

27

BOLT, DRAIN

17415-43D00

$4.35

28

GASKET

17413-28C10

$2.14

29

GASKET, WATER PUMP CASE

17431-28C10

$7.54

30

PIN

04211-09129

$1.65

31

..BOLT This part replaces 01547-06203.

01547-0620B

$2.45

32

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

$2.73

33

IMPELLER, WATER PUMP

17491-28C10

$48.49

34

OIL SEAL, WATER PUMP This part replaces 17461-28C10.

17461-03B00

$8.26

35

GEAR, WATER PUMP DRIVEN This part replaces 17441-28C10.

17441-28C11

Unavailable

36

PIN

09261-03010

Unavailable

37

CIRCLIP This part replaces 08331-41246.

08331-41249

$2.26

38

BEARING

08113-69000

$24.18

39

CIRCLIP This part replaces 08331-31106.

08331-31109

$1.78
