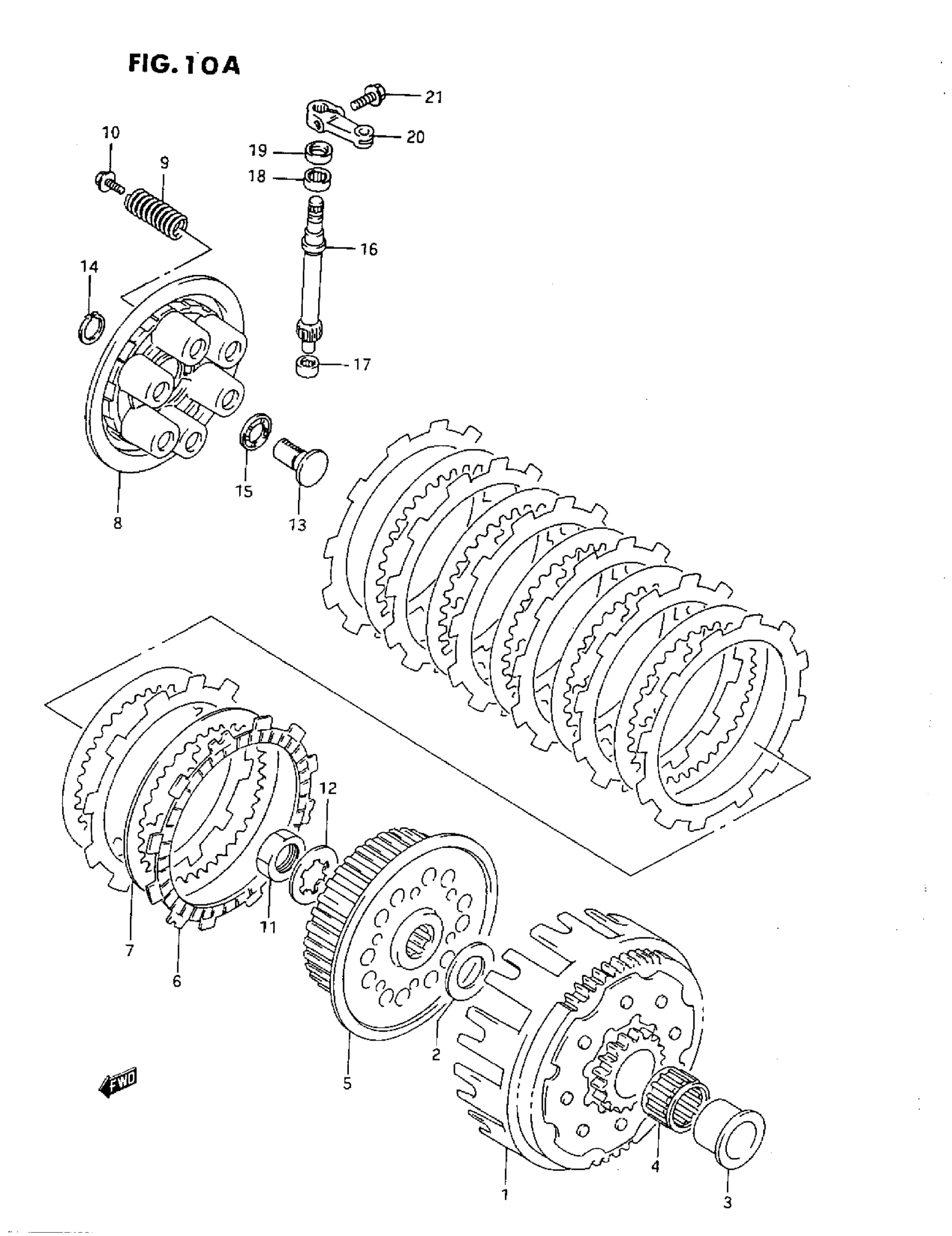

Find the part on the Clutch diagram for your 1993 Suzuki RM250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki RM250 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR ASSY, PRIMARY DRIVEN This part replaces 21200-28E10.

21200-28E12

1
Out of stock

2

WASHER (22X38X2)

09160-22067

1
Out of stock

3

SPACER, PRIMARY DRIVEN GEAR

21251-28C01

1
Out of stock

4

BEARING (29X34X21.8)

09263-29006

1
Out of stock

5

HUB, SLEEVE This part replaces 21410-28C34.

21411-28E10

1
Out of stock

6

PLATE, DRIVE NO.1 This part replaces 21441-07A02.

21441-12D01

8
Out of stock

7

PLATE,CLUTCH DRIVEN (T:1.6) This part replaces 21451-28C30.

21451-28C31

7
Out of stock

8

DISC, CLUTCH PRESSURE

21462-28E00

1
Out of stock

9

SPRING

09440-18025

6
Out of stock

10

BOLT (5X18)

09116-05019

6
Out of stock

11

NUT

09140-18013

1
Out of stock

12

WASHER

09167-22021

1
Out of stock

13

RACK This part replaces 23165-28301.

23165-46000

1
Out of stock

14

CIRCLIP This part replaces 08331-31106.

08331-31109

1
Out of stock

15

BEARING (10X22X2.8)

09263-10002

1
Out of stock

16

PINION, CLUTCH RELEASE (NT:12)

23261-00B20

1
Out of stock

17

BEARING (9X13X10)

09263-09001

1
Out of stock

18

BEARING (12X16X10)

09263-12024

1
Out of stock

19

OIL SEAL (10X17X5)

09285-10004

1
Out of stock

20

ARM, CLUTCH RELEASE This part replaces 23271-20901.

23271-20902

1
Out of stock

21

BOLT This part replaces 01547-06163.

01547-0616B

1
Out of stock
