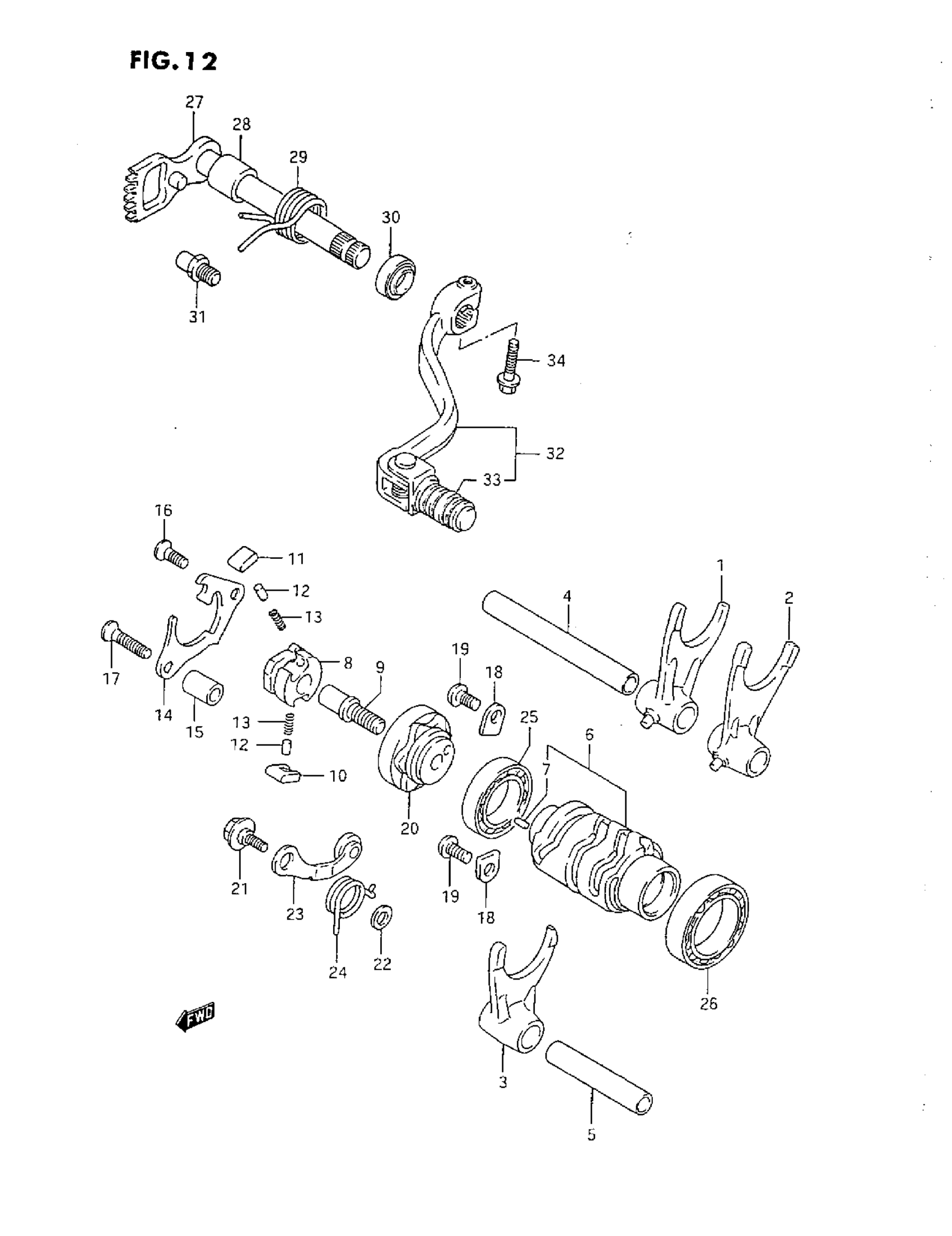

Suzuki RM250 (1993) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFT NO.1

25211-28C01

$93.58

2

FORK, GEAR SHIFT NO.2 This part replaces 25221-28C01.

25221-28C02

$99.05

3

FORK, GEAR SHIFT NO.3 This part replaces 25231-28C01.

25231-28C02

$94.03

4

SHAFT, GEAR FORK NO.1 This part replaces 25411-27C00.

25411-37F20

$25.08

5

SHAFT, NO.2 (L:60) This part replaces 25421-27C00.

25421-27C01

$20.82

6

CAM, GEAR SHIFT | MODEL P

25310-28C20

Unavailable

6

CAM | MODEL R This part replaces 25310-29E00.

25310-28C20

Unavailable

7

PIN (4X13.8)

04221-04089

$1.15

8

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-31301.

25322-31310

$30.40

9

PIN, SHIFT CAM DRIVEN GEAR | MODEL P This part replaces 25313-27C00.

25313-27C02

$14.73

9

PIN, SHIFT CAM DRIVEN GEAR | MODEL R This part replaces 25313-27C01.

25313-27C02

$14.73

10

PAWL, GEAR SHIFT NO.1

25323-34201

$6.91

11

PAWL, GEAR SHIFT NO.2

25324-34201

$7.11

12

ROLLER

09261-05003

$1.69

13

SPRING

09440-04003

$1.52

14

LIFTER, GEAR SHIFT

25331-28C00

$27.32

15

SPACER (6.2X12X18)

09180-06204

Unavailable

16

SCREW This part replaces 02122-06128.

02122-06127

$1.89

17

SCREW This part replaces 02122-06308.

02122-0630B

$2.14

18

RETAINER This part replaces 24741-20A10.

24741-21A00

$2.80

19

SCREW This part replaces 02112-06128.

02112-06127

$1.89

20

PLATE, SHIFT CAM STOPPER

25381-28C20

Unavailable

21

BOLT

09111-06041

$2.73

22

WASHER

08211-06121

$1.62

23

STOPPER, SHIFT CAM

25350-28C20

Unavailable

24

SPRING | MODEL P

09448-18025

Unavailable

24

SPRING | MODEL R

09448-18024

Unavailable

25

BEARING

08140-69050

$33.14

26

BEARING (30X37X12)

09263-30035

Unavailable

27

SHAFT, GEAR SHIFT

25510-28C30

$108.60

28

SPACER (14X20X17.5)

09180-14016

$3.70

29

SPRING

09444-26013

$2.94

30

OIL SEAL

09283-14006

$6.23

31

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.28

32

LEVER ASSY, GEAR SHIFT | MODEL P

25600-28C21

Unavailable

32

NO DESCRIPTION AVAILABLE | MODEL R This part replaces 25600-28E10.

25600-28E11

Unavailable

33

RUBBER,GEAR SHI This part replaces 25652-27C00.

25652-27C01

$25.80

34

BOLT | MODEL P

01547-06257

$2.09

34

BOLT, FINAL GEAR CASE COVER | MODEL R This part replaces 01547-06253.

01547-0625B

$2.50
