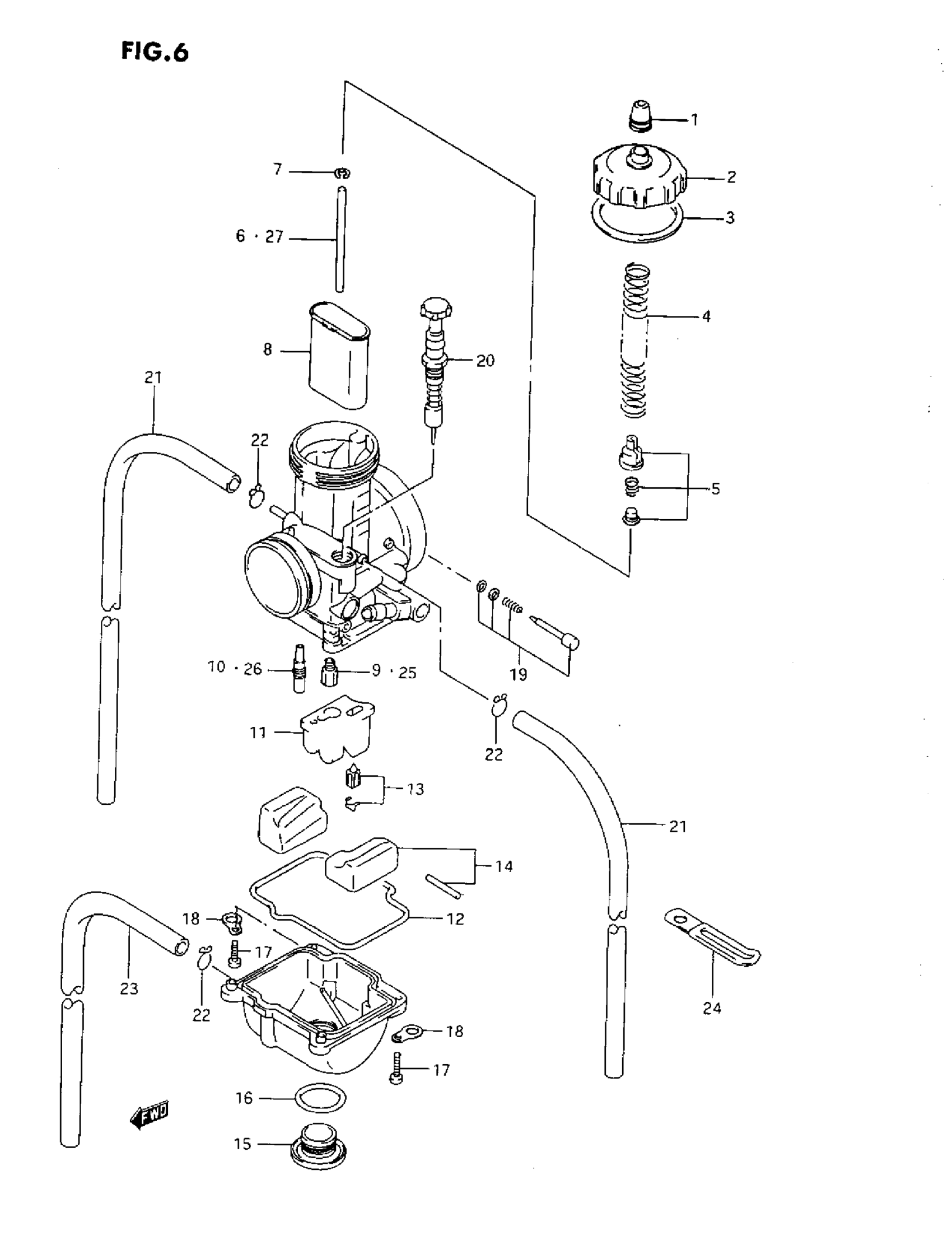

Suzuki RM250 (1993) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY | MODEL P This part replaces 13200-28E00.

13200-28E10

Unavailable

1

CARBURETOR ASSY | MODEL R

13200-28E10

Unavailable

1

CAP, CARBURETOR

13681-28E00

$8.07

2

CAP, TOP

13261-28E00

Unavailable

3

GASKET, TOP CAP

13266-28E00

Unavailable

4

SPRING

13573-28E00

$17.12

5

HOLDER SET, CABLE

13581-28E00

Unavailable

6

NEEDLE, JET | MODEL P

13383-28E50

Unavailable

6

NEEDLE, JET | MODEL R

13383-28E00

Unavailable

7

CLIP, NEEDLE

13394-28E00

$5.25

8

VALVE, PISTON | MODEL P

13551-28E00

Unavailable

8

VALVE, PISTON | MODEL R

13551-29E10

Unavailable

9

JET, MAIN (200) | MODEL P

09491-40013

$18.02

9

JET, MAIN (180) | MODEL R

09491-36008

$18.02

10

JET, SLOW (45) | MODEL P

09492-45032

$17.37

10

JET, SLOW (52) | MODEL R

09492-52011

$17.68

11

HOLDER

13331-28E00

$15.55

12

GASKET, FLOAT CHAMBER

13696-28E00

$13.83

13

VALVE SET, FLOAT

13370-28E00

Unavailable

14

FLOAT SET

13240-28E00

Unavailable

15

BOLT, DRAIN

13247-28E00

$21.90

16

O-RING

13246-28E00

$5.17

17

SCREW This part replaces 02112-34163.

02112-3416B

$2.19

18

PLATE

13693-28E00

$8.18

19

SCREW SET, AIR

13280-28E00

Unavailable

20

PLUNGER ASSY

13410-28E00

Unavailable

21

HOSE (4X7X620) This part replaces 13686-28E00.

13686-36E00

$10.28

22

CLIP

09401-06101

$2.03

23

HOSE (3.5X6.5X300) | 600.>300

09351-35653-600

$4.64

24

CLAMP This part replaces 09404-06402.

09404-06039

$1.74

25

JET, MAIN (170) | OPT

09491-34010

$17.37

25

JET, MAIN (172) | OPT

09491-34011

$17.37

25

JET, MAIN (175) | OPT

09491-35009

$17.68

25

JET, MAIN (178) | OPT

09491-35010

$18.02

25

JET, MAIN (180) | OPT

09491-36008

$18.02

25

JET, MAIN (185) | OPT

09491-37008

Unavailable

25

JET, MAIN (190) | OPT

09491-38011

Unavailable

25

JET, MAIN (195) | OPT

09491-39001

Unavailable

25

JET, MAIN (205) | OPT

09491-41001

Unavailable

25

JET, MAIN (210) | OPT

09491-42006

Unavailable

25

JET, MAIN (215) | OPT

09491-43001

Unavailable

25

JET, MAIN (220) | OPT

09491-44006

Unavailable

25

JET, MAIN (225) | OPT

09491-45003

Unavailable

25

JET, MAIN (230) | OPT

09491-46004

Unavailable

26

JET, SLOW (35) | OPT

09492-35019

$17.68

26

JET, SLOW (40) | OPT

09492-40022

$17.37

26

JET, SLOW (50) | OPT

09492-50023

$17.37

26

JET, SLOW (55) | OPT

09492-55017

$18.02

26

JET, SLOW (60) | OPT

09492-60016

Unavailable

27

NEEDLE (RL469MS) | OPT

13383-28E00

Unavailable

27

NEEDLE (R1470MS) | OPT

13383-28E20

Unavailable

27

NEEDLE (R1471MS) | OPT

13383-28E40

Unavailable

27

NEEDLE (R1472MS) | OPT

13383-28E60

Unavailable

27

NEEDLE (R1473MS) | OPT

13383-28E80

Unavailable

27

NEEDLE (R1469NS) | OPT

13383-28E10

Unavailable

27

NEEDLE (R1470NS) | OPT

13383-28E30

Unavailable

27

NEEDLE (R1472NS) | OPT

13383-28E70

Unavailable

27

NEEDLE (R1473NS) | OPT

13383-28E90

Unavailable
