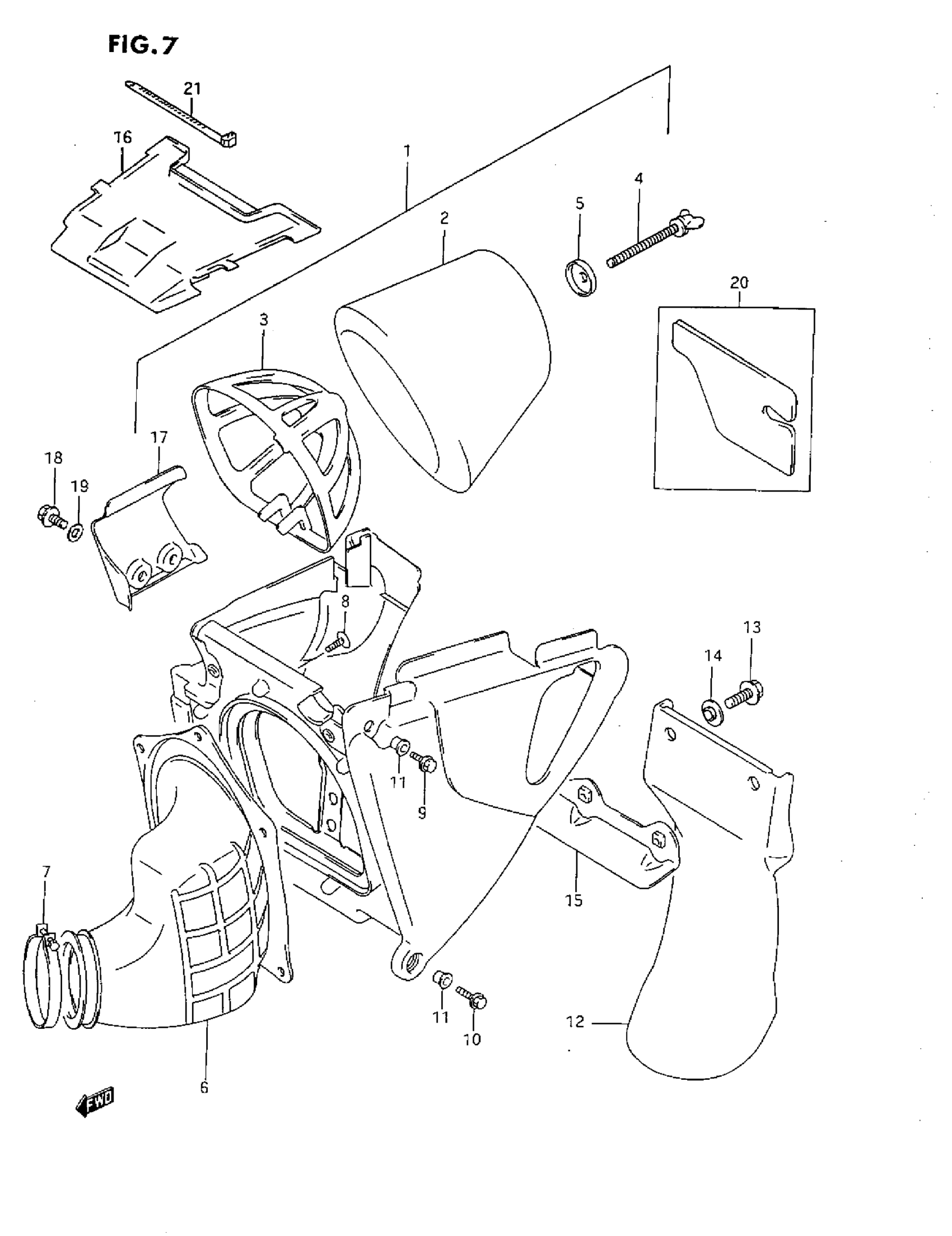

Suzuki RM250 (1993) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | MODEL P This part replaces 13700-28E00.

13700-28E01

Unavailable

1

CLEANER ASSY, AIR | MODEL R

13700-28E01

Unavailable

2

FILTER ASSY

13780-28E00

Unavailable

3

HOLDER, FILTER

13791-28E00

Unavailable

4

.BOLT,WING This part replaces 13831-28E00.

13831-37F20

$8.07

5

WASHER

13792-13A01

$4.34

6

TUBE, OUTLET

13881-28E00

Unavailable

7

CLAMP This part replaces 09402-70208.

09402-70902

$5.64

8

SCREW, FRONT This part replaces 03241-05105.

03241-0510A

$1.49

9

BOLT | MODEL P This part replaces 01547-06165.

01547-0616B

$2.45

9

BOLT | MODEL R This part replaces 01547-06163.

01547-0616B

$2.45

10

..BOLT | MODEL P This part replaces 01547-06205.

01547-0620B

$2.45

10

..BOLT | MODEL R This part replaces 01547-06203.

01547-0620B

$2.45

11

WASHER

09169-06021

$2.36

12

MUD GUARD | MODEL P This part replaces 13738-28E00.

13738-28E01

Unavailable

12

MUD GUARD | MODEL R

13738-28E01

Unavailable

13

BOLT | MODEL P

01547-06167

$1.65

13

BOLT | MODEL R This part replaces 01547-06163.

01547-0616B

$2.45

14

WASHER

09169-06057

$3.18

15

PLATE, MUD GUARD

13704-28E00

Unavailable

16

CAP, AIR CLEANER | MODEL P This part replaces 13741-28E00.

13741-28E01

Unavailable

16

CAP, AIR CLEANER | MODEL R

13741-28E01

Unavailable

17

COVER, AIR CLEANER RH NO.2

13735-28E00

Unavailable

18

BOLT | MODEL P This part replaces 01547-06165.

01547-0616B

$2.45

18

BOLT | MODEL R This part replaces 01547-06163.

01547-0616B

$2.45

19

.WASHER | MODEL P This part replaces 08322-21064.

08322-0106B

$2.26

19

.WASHER | MODEL R This part replaces 08322-21063.

08322-0106B

$2.26

20

GUARD, MUD UPPER | FOR RAINY DAY

13761-28E00

Unavailable

21

CLAMP, AIR CLEANER, PLATE | MODEL R

09407-12406

Unavailable
