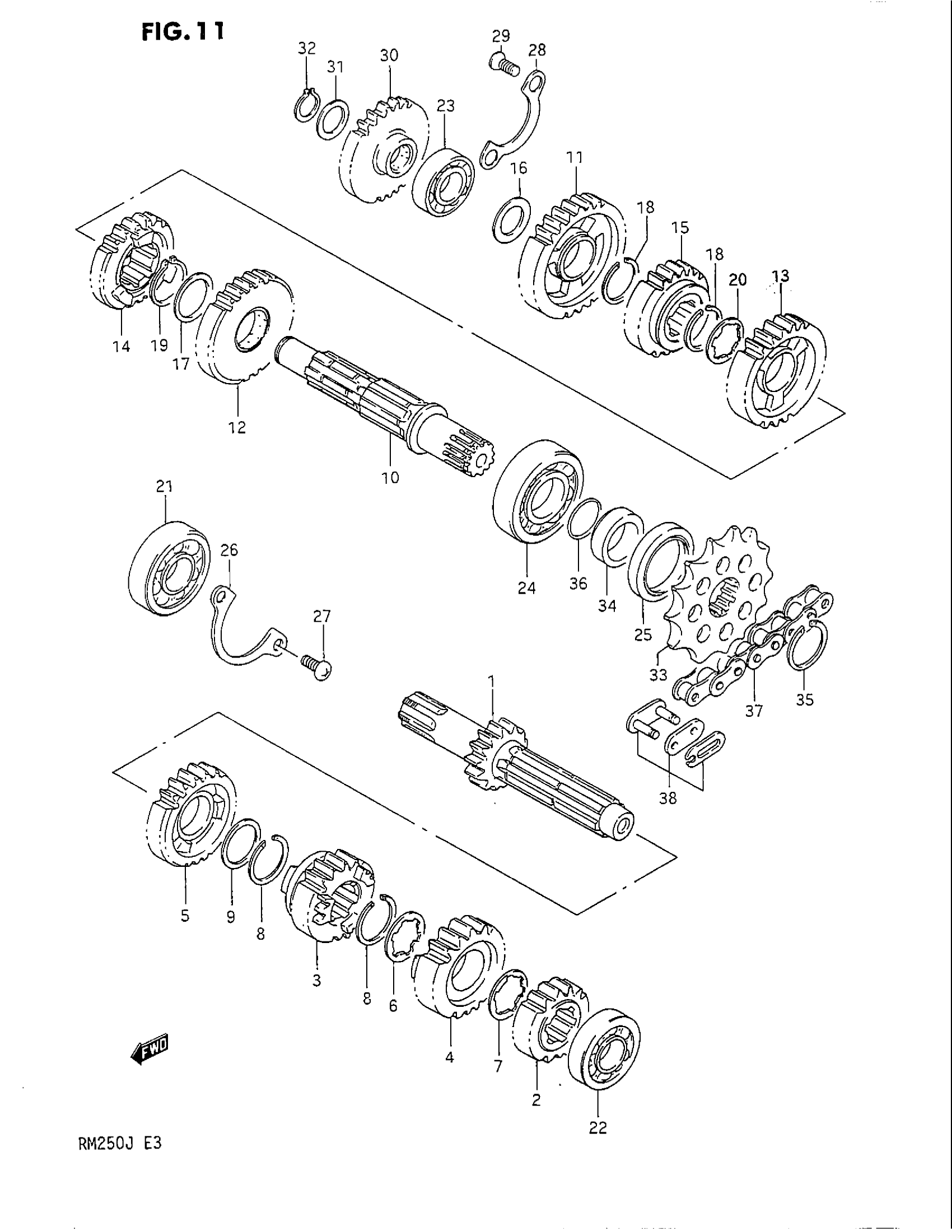

Suzuki RM250 (1988) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT (NT:14)

24121-00B01

Unavailable

2

GEAR, 2ND DRIVE (NT:16)

24221-00B01

Unavailable

3

NO DESCRIPTION AVAILABLE This part replaces 24231-00B01.

24231-00B04

Unavailable

4

NO DESCRIPTION AVAILABLE This part replaces 24241-00B02.

24241-00B04

Unavailable

5

GEAR, 5TH DRIVE (NT:22)

24251-00B02

Unavailable

6

WASHER

09167-22011

$3.23

7

WASHER

09167-22014

$3.78

8

CIRCLIP

09380-22006

$3.10

9

THRUST WASHER (22X28X0.5)

09181-22002

Unavailable

10

NO DESCRIPTION AVAILABLE This part replaces 24131-00B01.

24131-00B02

Unavailable

11

NO DESCRIPTION AVAILABLE This part replaces 24311-00B02.

24311-00B04

Unavailable

12

NO DESCRIPTION AVAILABLE This part replaces 24320-00B02.

24321-00B04

Unavailable

13

NO DESCRIPTION AVAILABLE This part replaces 24331-00B02.

24331-00B04

Unavailable

14

NO DESCRIPTION AVAILABLE This part replaces 24341-00B01.

24341-00B03

Unavailable

15

NO DESCRIPTION AVAILABLE This part replaces 24351-00B01.

24351-00B03

Unavailable

16

WASHER, 1ST DRIVEN This part replaces 08211-17281.

09181-17195

$3.07

17

THRUST WASHER

08221-25325

$2.47

18

CIRCLIP

09380-22006

$3.10

19

CIRCLIP, REAR FINAL DRIVE This part replaces 08331-31258.

08331-31256

$1.49

20

WASHER

09167-22014

$3.78

21

BEARING, RH

09262-20073

$23.28

22

BEARING, LH

09262-17023

$16.75

23

BEARING, RH

09262-17023

$16.75

24

BEARING (22X56X16) This part replaces 09262-22014.

09262-22028

$77.48

25

OIL SEAL (32X42X6)

09283-32003

$7.31

26

HOLDER, BEARING

24741-40300

Unavailable

27

SCREW This part replaces 02112-06128.

02112-06127

$1.84

28

HOLDER, BEARING

24751-40300

Unavailable

29

SCREW This part replaces 02122-06128.

02122-06127

$1.84

30

GEAR, KICK IDLE (NT:26) This part replaces 26260-41101.

26260-13A10

Unavailable

31

WASHER

08211-17241

$2.54

32

CIRCLIP

09380-17001

$1.98

33

SPROCKET, ENGINE (NT:13) This part replaces 27511-14310.

27511-37F00

$25.05

33

SPROCKET, ENGINE (NT:14) | OPT This part replaces 27511-14300.

27511-47D00

$30.15

33

SPROCKET, ENGINE (NT:15) | OPT

27511-14320

Unavailable

34

SPACER (22X32X9.5)

09180-22026

Unavailable

35

CIRCLIP

09380-22006

$3.10

36

O RING (D:1.7,ID:22)

09280-22003

$1.72

37

CHAIN,DRIVE ASS | Includes Item(s) 38 This part replaces 27600-14310.

27600-46K00-116

$167.95

38

JOINT (DID)

27620-14270

Unavailable

38

JOINT (RK)

27620-14262

Unavailable
