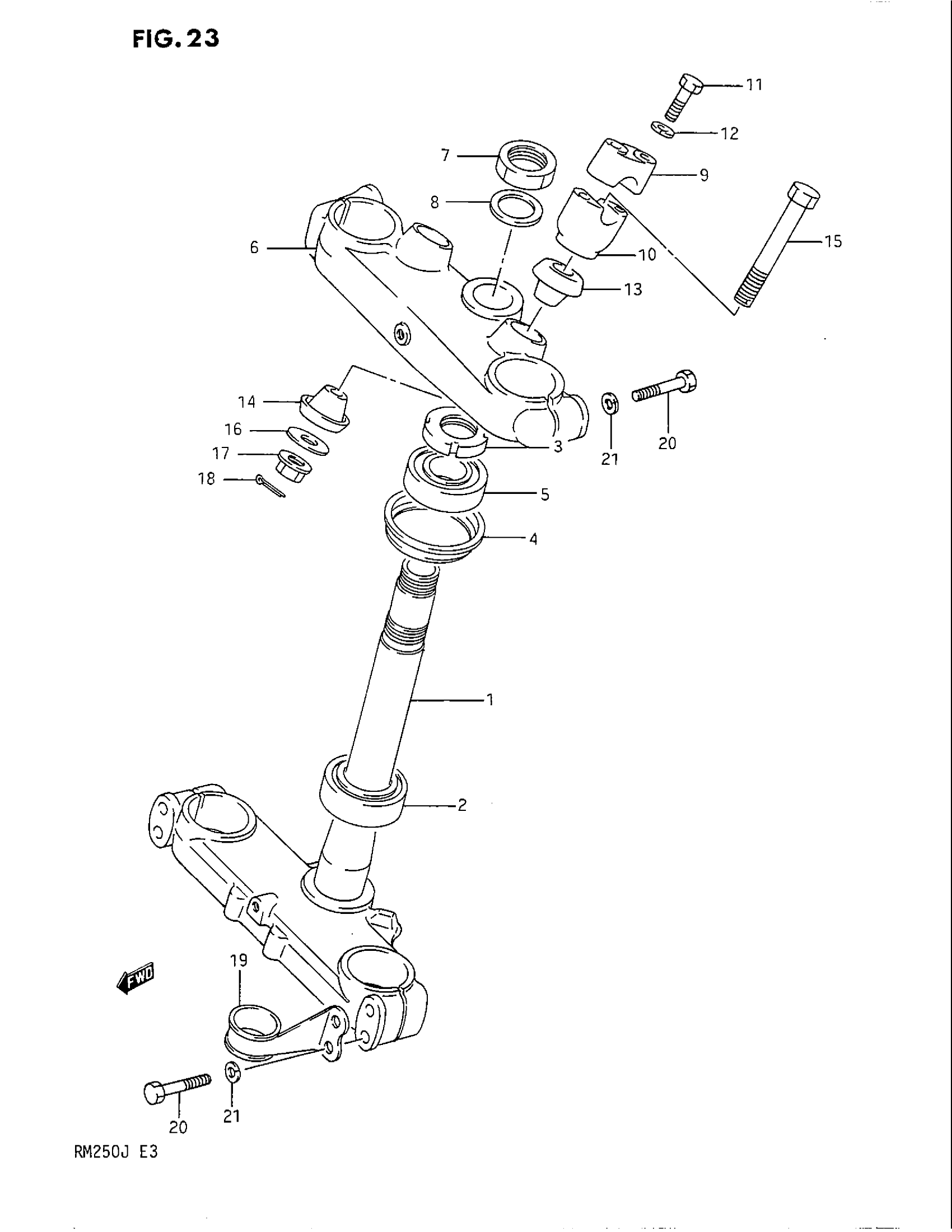

Suzuki RM250 (1988) STEERING STEM Diagram

#

Description
Price

1

STEM, STEERING | Includes Item(s) 2

51410-26C00

Unavailable

2

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

$57.05

3

NUT, STEERING STEM

51631-40200

Unavailable

4

DUST SEAL

51643-40200

$7.96

5

BEARING

09265-25008

Unavailable

6

STEM HEAD, STEERING

51311-26C00

Unavailable

7

NUT

51353-24A00

Unavailable

8

WASHER, STEM This part replaces 51356-01B20.

51356-24B01

$5.38

9

HOLDER, HANDLE UPPER

56211-27100

$15.23

10

HOLDER, HANDLE LOWER

56221-23450

Unavailable

11

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

12

.LOCK WASHER This part replaces 08321-31087.

08321-01087

$2.13

13

RUBBER, UPPER

56241-14200

$44.53

14

RUBBER, LOWER

56242-14200

$36.08

15

BOLT This part replaces 51321-14200.

56321-28C00

$8.28

16

WASHER This part replaces 51356-40400.

09160-10035

$1.78

17

NUT

08319-31107

$2.73

18

PIN This part replaces 04111-20308.

04111-2030A

$1.50

19

CLIP

58621-00B00

Unavailable

20

BOLT This part replaces 01107-08408.

01500-0840A

$2.60

21

.LOCK WASHER This part replaces 08321-31087.

08321-01087

$2.13
