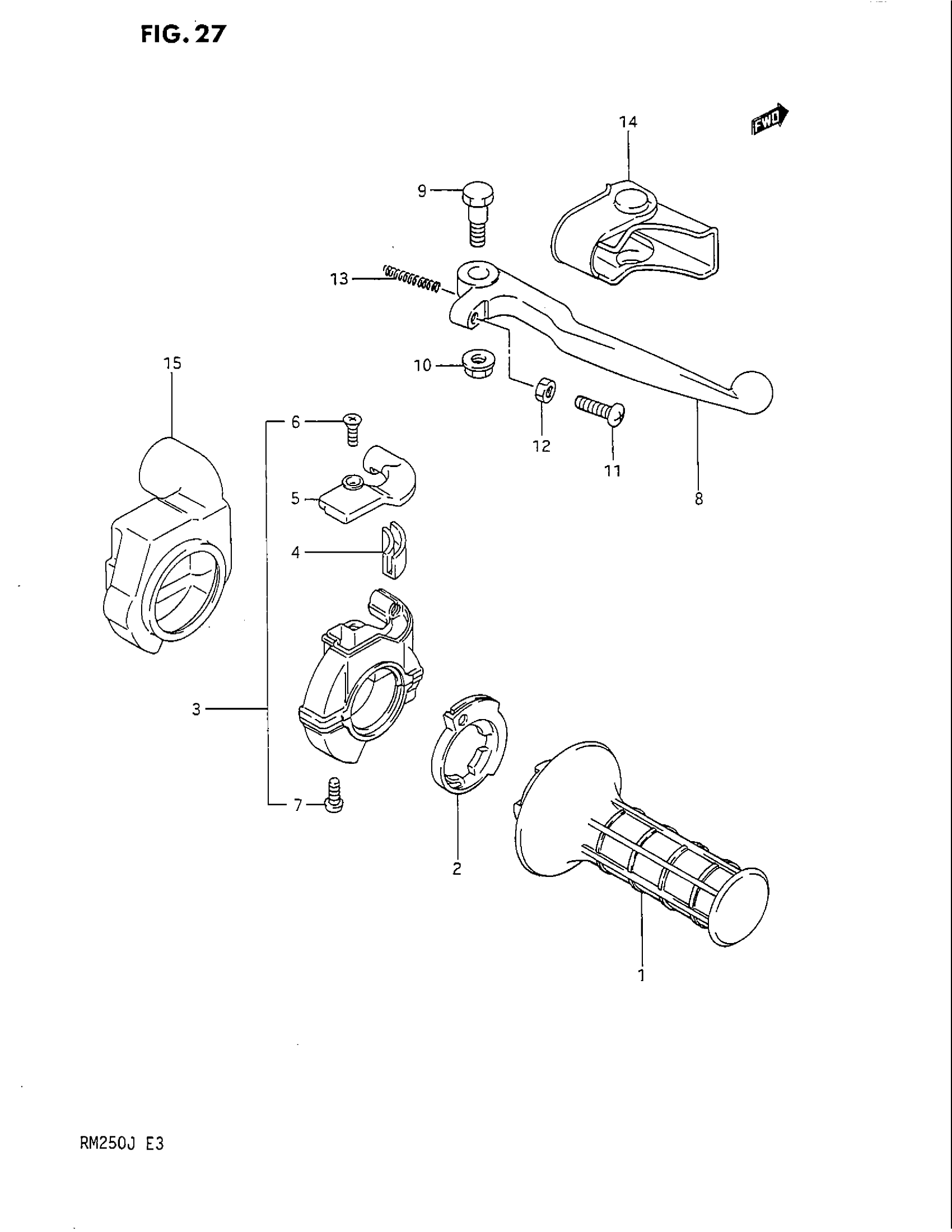

Suzuki RM250 (1988) RIGHT HANDLE SWITCH Diagram

#

Description
Price

1

GRIP, THROTTLE This part replaces 57110-14300.

57110-27C00

$26.37

2

ROTOR, THROTTLE

57114-14301

Unavailable

3

CASE ASSY, THROTTLE | Includes Item(s) 4 - 7

57100-14302

Unavailable

4

GUIDE PIECE

57122-14301

Unavailable

5

COVER

57129-14302

Unavailable

6

SCREW This part replaces 02132-04065.

02122-0410A

$1.49

7

SCREW This part replaces 02112-05168.

02112-05167

$1.97

8

LEVER, BRAKE

57421-14502

Unavailable

9

BOLT, BRAKE LEVER

57431-14500

$6.28

10

NUT This part replaces 57442-14500.

08316-1006B

$2.50

11

BOLT, ADJUST

57431-14511

$5.80

12

NUT This part replaces 08310-12055.

08310-0005A

$1.84

13

SPRING, RETURN This part replaces 57318-14501.

57318-14502

$4.48

14

COVER, BRAKE LEVER

57341-14501

$7.97

15

COVER, THROTTLE CASE

57129-14501

Unavailable
