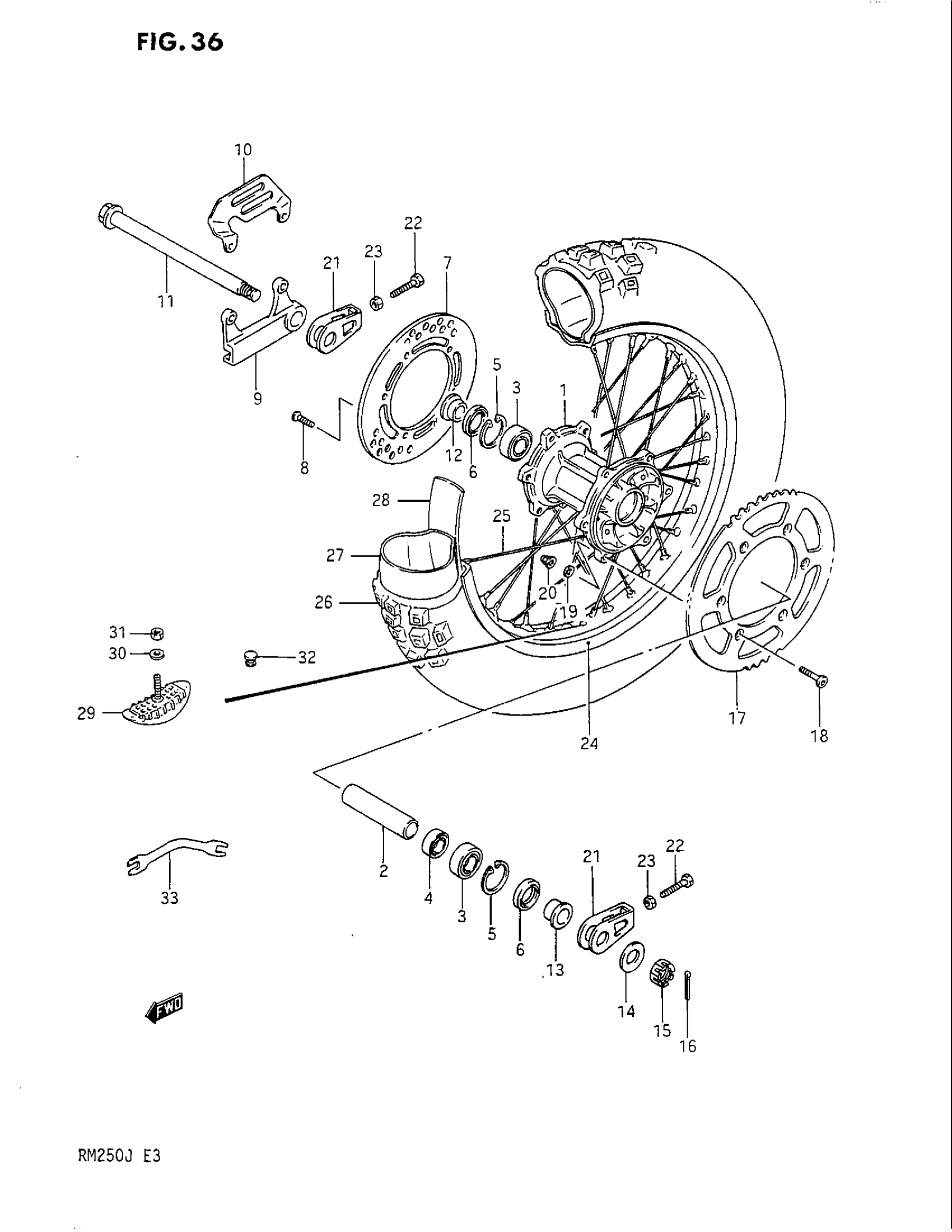

Suzuki RM250 (1988) REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR This part replaces 64110-00B30.

64110-28C01

Unavailable

2

SPACER, BEARING

64731-00B30

Unavailable

3

BEARING This part replaces 08123-62047.

08123-6204B

$17.41

4

BEARING, RH This part replaces 08123-60047.

08133-60047

$25.82

5

CIRCLIP This part replaces 08331-41478.

08331-41479

$2.31

6

OIL SEAL (26X47X5) This part replaces 09284-26003.

09283-26019

$11.61

7

DISC, REAR BRAKE

69211-00B20

Unavailable

8

SCREW

02122-06167

$1.49

9

BRACKET, CALIPER

69721-00B30

Unavailable

10

GUARD, CALIPER

69725-26C01

Unavailable

11

AXLE, REAR

64711-01B30

Unavailable

12

SPACER, RH

64741-00B21

Unavailable

13

SPACER, LH

64751-00B30

Unavailable

14

WASHER This part replaces 09160-19010.

09160-19022

$4.90

15

NUT This part replaces 08314-41188.

08314-40187

$5.64

16

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.49

17

SPROCKET,RR (NT:50) This part replaces 64511-40271.

64511-36E00

$126.60

17

SPROCKET,RR (NT:49) | OPT ALUMINIUM This part replaces 64511-40280.

64511-28E00

$120.85

17

SPROCKET, REAR (NT:51) | OPT ALUMINIUM

64511-40261

$155.22

17

SPROCKET, REAR (NT:49) | OPT STEEL

64511-00B01

Unavailable

17

SPROCKET, REAR (NT:50) | OPT STEEL This part replaces 64511-00B11.

64511-00B12

$125.38

17

SPROCKET, REAR (NT:51) | OPT STEEL

64511-00B21

Unavailable

18

SCREW

09120-08004

$2.40

19

WASHER

09164-08011

$2.71

20

NUT

08319-31087

$2.32

21

ADJUSTER, CHAIN

61410-00B30

Unavailable

22

BOLT

09100-08271

Unavailable

23

NUT This part replaces 08310-12088.

08310-00087

$2.13

24

NO DESCRIPTION AVAILABLE This part replaces 65311-00B20.

65311-28C01

Unavailable

25

SPOKE ASSY, WHEEL

65320-26C00

Unavailable

26

TIRE, REAR (110/100-18) BS

65100-00B10

Unavailable

27

TUBE, WHEEL INNER

65200-40430

Unavailable

28

IN TUBE PROTECT This part replaces 65261-15010.

55261-26F10

$4.39

29

STOPPER, BEAD This part replaces 65270-14200.

65270-28E00

$58.75

30

WASHER This part replaces 08322-11088.

08322-01087

$2.13

31

NUT This part replaces 08310-22088.

08310-00087

$2.13

32

CAP

09250-08013

$2.68

33

OPEN SPANNER

09813-00039

Unavailable
