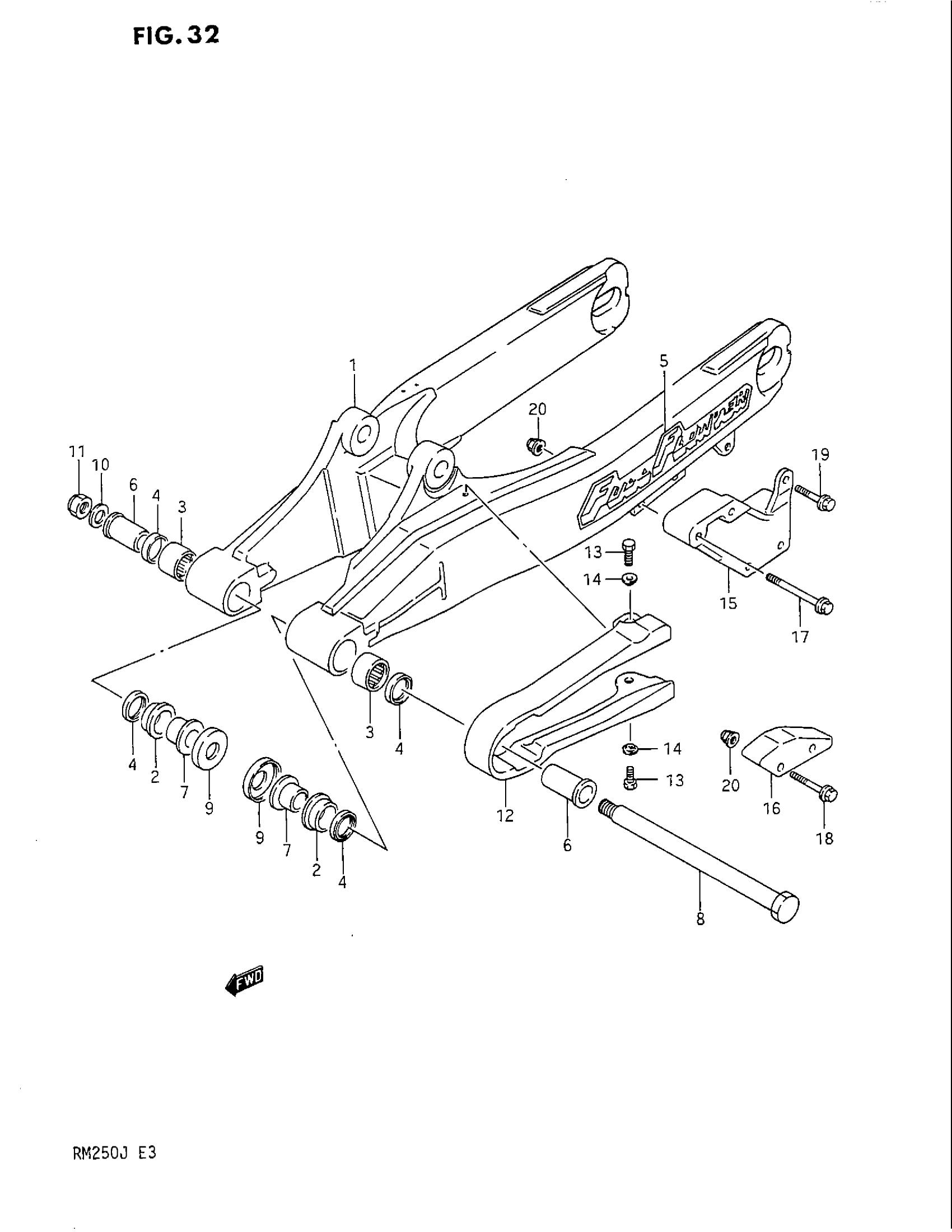

Suzuki RM250 (1988) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR | Includes Item(s) 2 - 5

61000-26C00

Unavailable

2

BUSH This part replaces 61261-40402.

61261-27C00

Unavailable

3

BEARING

09263-20039

Unavailable

4

DUST SEAL, INNER This part replaces 09285-20005.

09283-20031

$5.24

5

EMBLEM This part replaces 68381-19A10-97J.

68381-27C00-97J

Unavailable

6

SPACER

61251-14600

Unavailable

7

SPACER, INNER

61252-14100

Unavailable

8

SHAFT, PIVOT

61211-00B00

Unavailable

9

SEAL, DUST This part replaces 61262-40400.

61262-40401

$5.93

10

WASHER

09160-14009

$2.82

11

NUT

09159-14019

$11.61

12

BUFFER, CHAIN DEFENSE

61273-26C00

Unavailable

13

BOLT This part replaces 01107-06127.

01500-06127

$1.97

14

WASHER

09169-06057

$3.18

15

GUIDE,CHAIN This part replaces 61341-01B02.

61341-01B03

Unavailable

16

DEFENSE, CHAIN GUIDE This part replaces 61348-01B30.

61348-27C20

$32.18

17

BOLT This part replaces 01517-06558.

01550-06557

$3.30

18

BOLT (CHROME) This part replaces 01517-06458.

01550-06457

$2.69

19

BOLT This part replaces 01517-06207.

01550-06207

$2.30

20

NUT

08319-31067

$2.03
