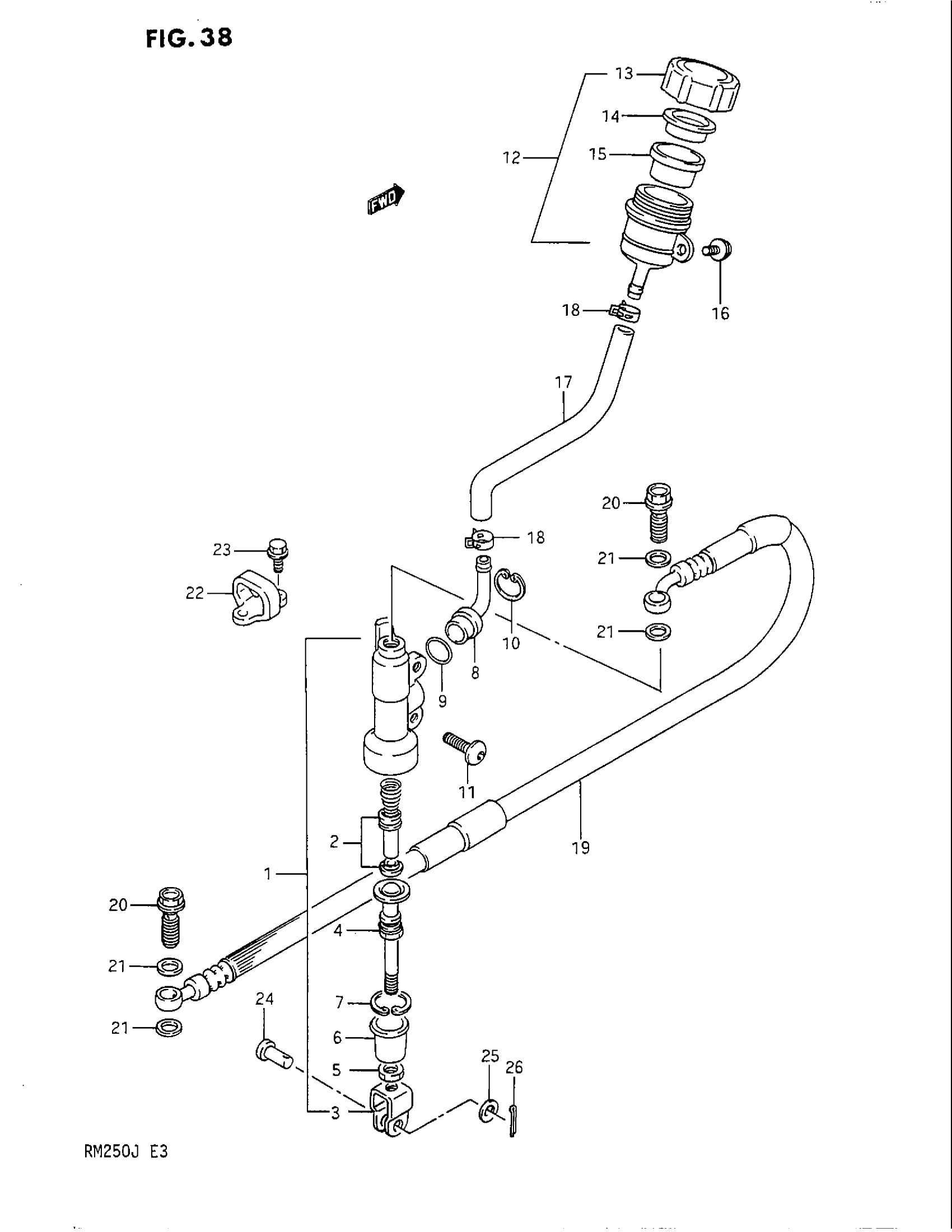

Suzuki RM250 (1988) REAR MASTER CYLINDER Diagram

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 10 This part replaces 69600-00B22.

69600-00B23

Unavailable

PISTON/CUP SET

69600-34810

$56.48

YOKE This part replaces 69692-00B20.

69692-00B21

$17.02

ROD, PUSH This part replaces 69670-00B20.

69670-00B21

$29.25

NUT This part replaces 69693-24A00.

69693-05A00

$1.96

.BOOT

69691-00A00

$5.30

CIRCLIP

51162-70040

$3.25

CONNECTOR

69672-00B20

$7.01

O RING

69686-34200

$2.93

CIRCLIP

69674-00B20

$3.97

BOLT

09106-06064

$6.02

TANK ASSY, RESERVOIR | Includes Item(s) 13 - 15 This part replaces 69740-00B20.

69740-05D00

Unavailable

CAP This part replaces 69669-00B20.

69669-03D10

$22.65

PLATE

69668-00B20

$7.67

DIAPHRGM

69667-00B20

$15.68

BOLT This part replaces 01517-06128.

01550-06127

$2.30

HOSE, RESERVOIR TANK This part replaces 69731-00B22.

69731-00B23

Unavailable

CLAMP

69735-00B20

$4.10

NO DESCRIPTION AVAILABLE This part replaces 69480-26C00.

69480-26C02

Unavailable

UNION

09360-10017

$3.42

WASHER (10X15X1.5)

09161-10009

$1.84

CLAMP, REAR BRAKE HOSE

61196-00B21

$6.79

SCREW

09125-05042

$1.96

PIN

09200-08048

$2.92

WASHER

09160-08074

Unavailable

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49
