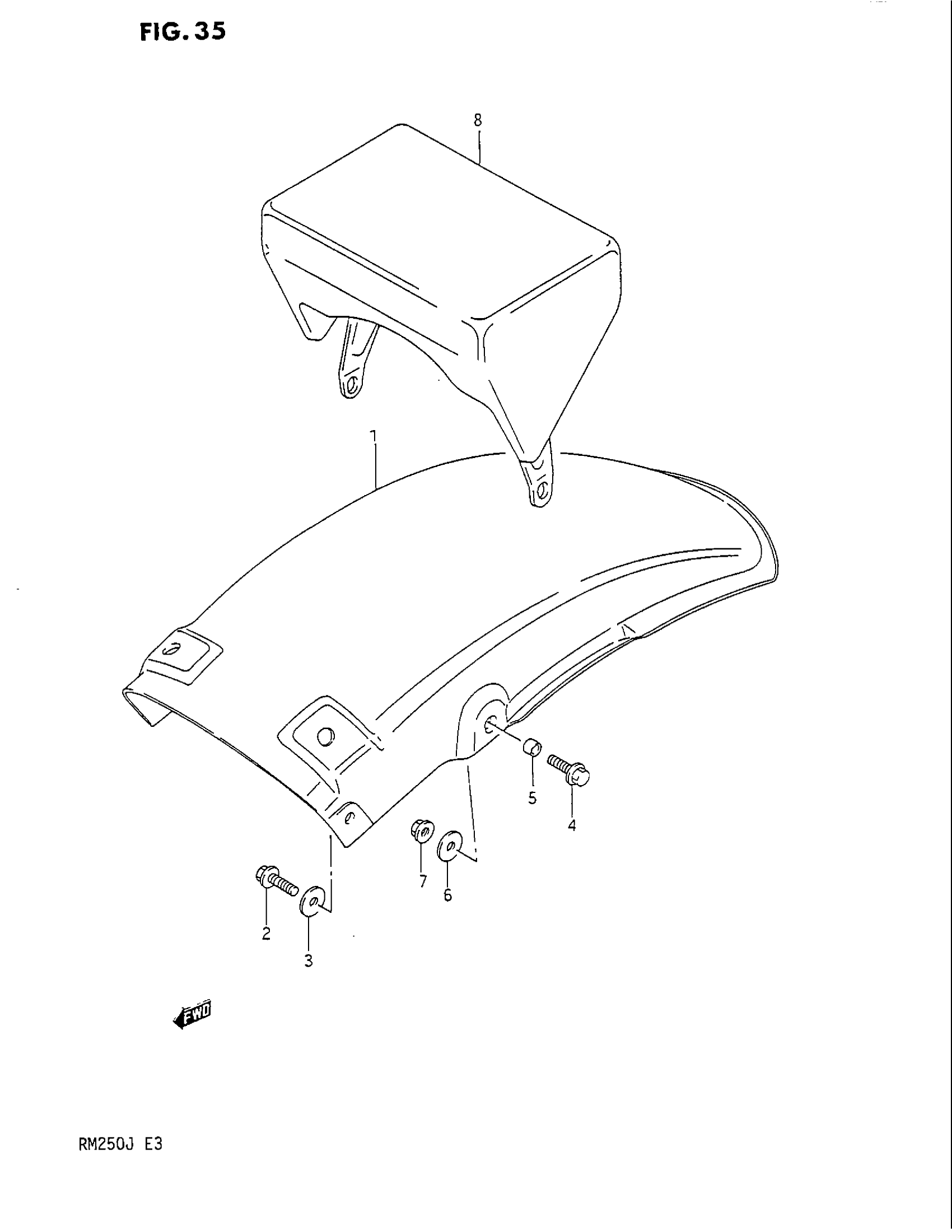

Suzuki RM250 (1988) REAR FENDER Diagram

#

Description

Price

1

BODY, REAR FENDER REAR

63113-26C00-25Y

Unavailable

2

SCREW, FRONT

01547-06167

$1.65

3

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

4

BOLT, REAR

01547-06207

$2.01

5

SPACER (6.5X9X5) This part replaces 09180-06073.

09180-06306

$2.03

6

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

7

NUT

08319-31067

$2.03

8

BAG ASSY, SEAT TAIL (BLUE) | OPT

94900-38220-4UZ

Unavailable
