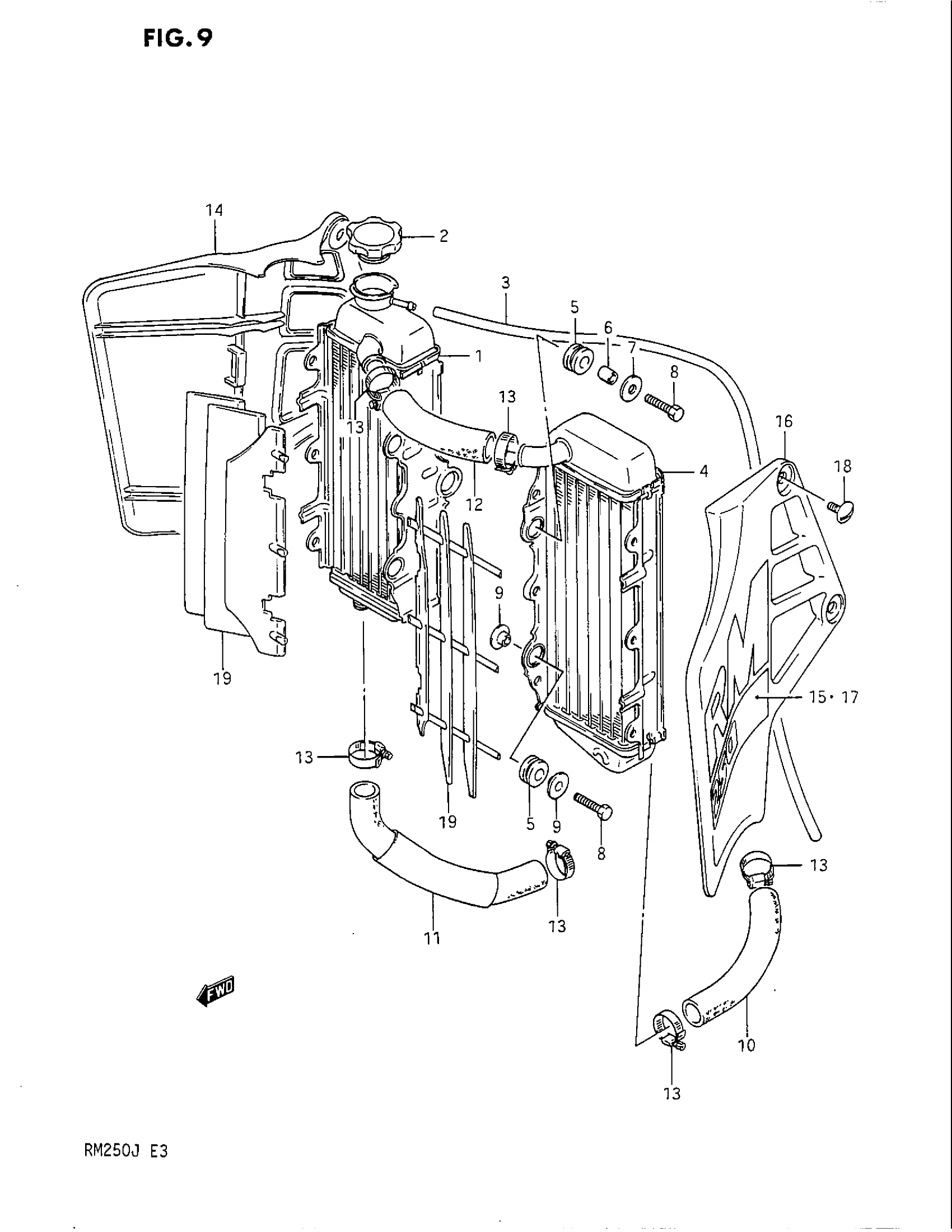

Suzuki RM250 (1988) RADIATOR Diagram

#

Description
Price

1

RADIATOR, RH

17710-26C00

Unavailable

2

CAP, RADIATOR 1.1 This part replaces 17730-14501.

17730-19D11

$42.32

3

HOSE (5X9X2000) | L:760->650 This part replaces 09343-05347.

09352-50901-00B

$26.94

4

RADIATOR, LH

17720-26C00

Unavailable

5

CUSHION, SUPPORT

17787-19A00

$3.56

6

SPACER

09180-07004

$2.30

7

WASHER, 6.5X24X1.6 This part replaces 09160-06074.

09160-06501

$1.86

8

BOLT, GEAR SHIFT ARM This part replaces 01107-06255.

01500-0625A

$1.78

9

WASHER, RADIATOR SUPPORT

17781-26C00

$2.81

10

HOSE, INLET

17851-26C00

Unavailable

11

HOSE, OUTLET

17852-26C00

Unavailable

12

HOSE, CYLINDER JOINT This part replaces 17853-26C00.

17851-01A00

$22.10

13

CLAMP This part replaces 09402-25502.

09402-28511

$6.88

14

COVER, RADIATOR RH

17761-26C00-25Y

Unavailable

15

TAPE SET, RH

68661-26C00-9UR

Unavailable

16

COVER, RADIATOR LH

17762-26C00-25Y

Unavailable

17

TAPE SET, LH

68671-26C00-9UR

Unavailable

18

SCREW This part replaces 09125-06085.

09125-06045

$11.07

19

LOUVER, RADIATOR

17831-26C00

$19.41
