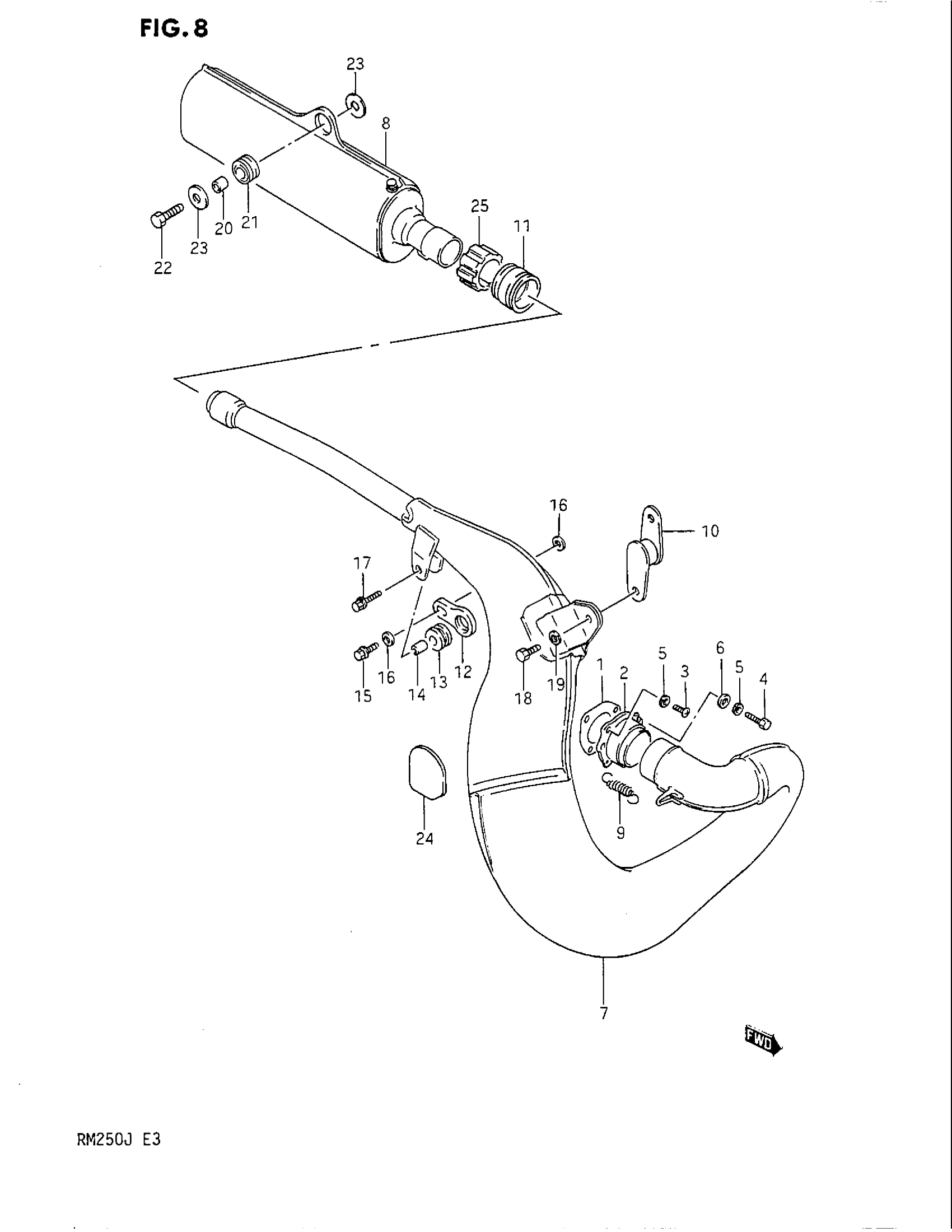

Suzuki RM250 (1988) MUFFLER Diagram

#

Description
Price

1

EXH FLANGE GASK This part replaces 14181-16300.

14181-16300-H17

$5.55

2

FLANGE, EXHAUST PIPE

14170-26C01

Unavailable

3

SCREW

02112-06167

$1.49

4

BOLT This part replaces 09128-06006.

09128-06057

$1.65

5

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

6

WASHER (6X10X2)

09160-06106

$2.72

7

NO DESCRIPTION AVAILABLE This part replaces 14310-26C11-H01.

14310-26C12

Unavailable

8

NO DESCRIPTION AVAILABLE This part replaces 14330-26C11-H01.

14330-26C11

Unavailable

9

SPRING This part replaces 09443-11024.

09443-11024-XC0

$8.53

10

DAMPER, MUFFLER

14770-26C01

Unavailable

11

CONNECTOR,MUFFL This part replaces 14771-26C00.

14771-35301

Unavailable

12

PLATE, MOUNTING

14761-01B00

Unavailable

13

CUSHION (8.7X26X14) This part replaces 14762-01B00.

14762-01B02

$3.74

14

SPACER This part replaces 09180-06062.

09180-06268

$2.19

15

BOLT

01547-06167

$1.65

16

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

17

BOLT

01547-06257

$2.03

18

PLUG, DRAIN This part replaces 01107-08167.

01500-0816B

$2.50

19

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

20

SPACER (8.5X12X11) This part replaces 09180-08001.

09180-08189

$2.58

21

CUSHION

09320-11014

Unavailable

22

BOLT This part replaces 09100-08129.

01500-0825A

$2.19

23

WASHER (8.5X33X1.5) This part replaces 09160-08106.

09160-08146

$2.60

24

CUSHION, SPACER

14424-00B20

Unavailable

25

CUSHION, TAIL PIPE

14652-00B01

Unavailable
