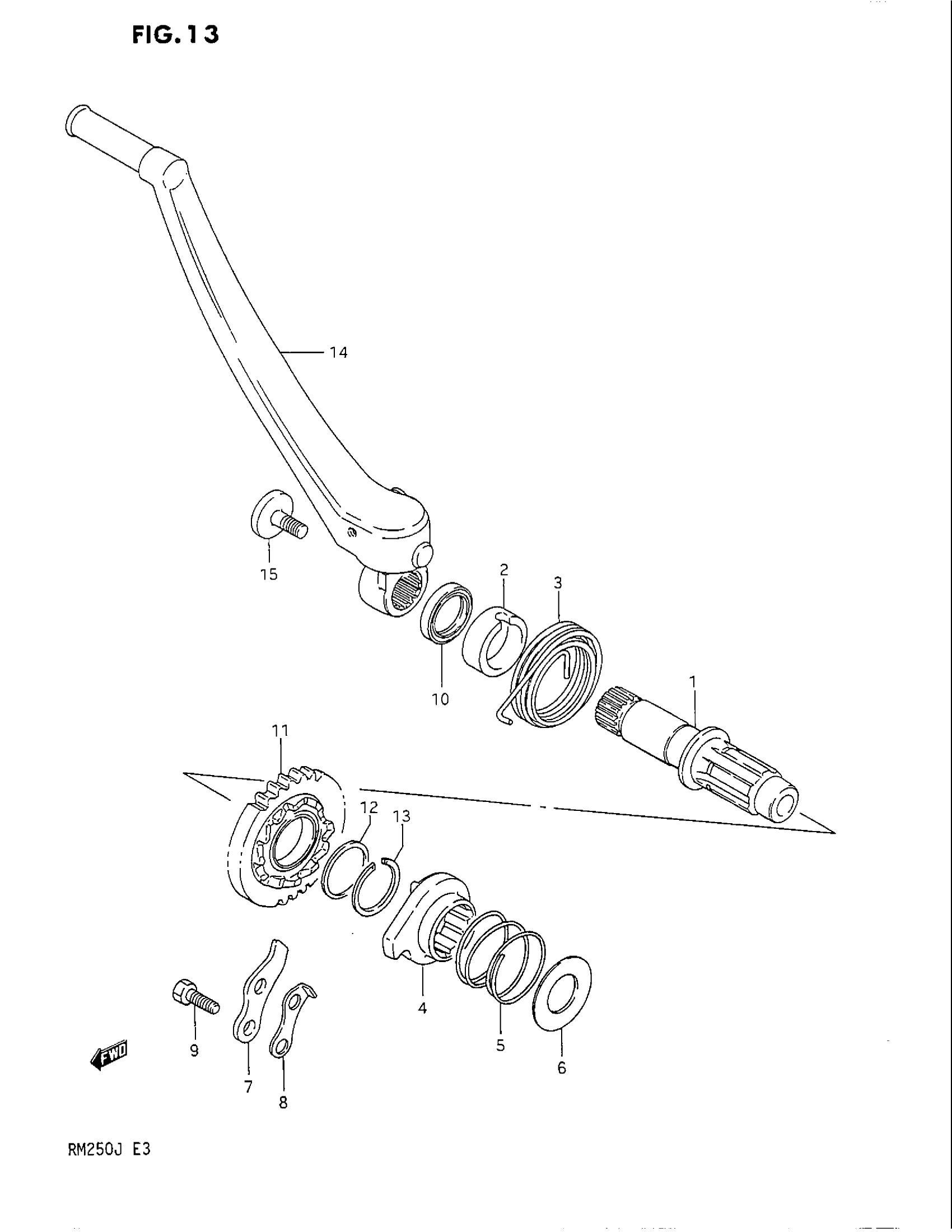

Suzuki RM250 (1988) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER This part replaces 26211-01B00.

26211-05D03

Unavailable

2

GUIDE, KICK STARTER This part replaces 26221-01B00.

26221-01B01

$4.35

3

SPRING

09448-48008

Unavailable

4

STARTER, KICK

26231-22A10

$63.88

5

SPRING

09440-32002

$2.27

6

PLATE

08211-17341

$2.50

7

GUIDE, KICK STARTER

26232-40200

$7.08

8

STOPPER, KICK STARTER This part replaces 26233-40200.

26233-40201

$5.52

9

BOLT This part replaces 01107-06127.

01500-06127

$1.97

10

OIL SEAL (20X27X5)

09283-20031

$5.24

11

GEAR, KICK DRIVE (NT:27)

26240-13A00

Unavailable

12

WASHER (22X28X1.0) This part replaces 08211-22281.

09181-22139

$3.48

13

CIRCLIP

09380-22006

$3.10

14

LEVER ASSY,KICK This part replaces 26300-00B10.

26300-28E21

$263.67

15

BOLT This part replaces 09106-08073.

09106-08098

$4.64
