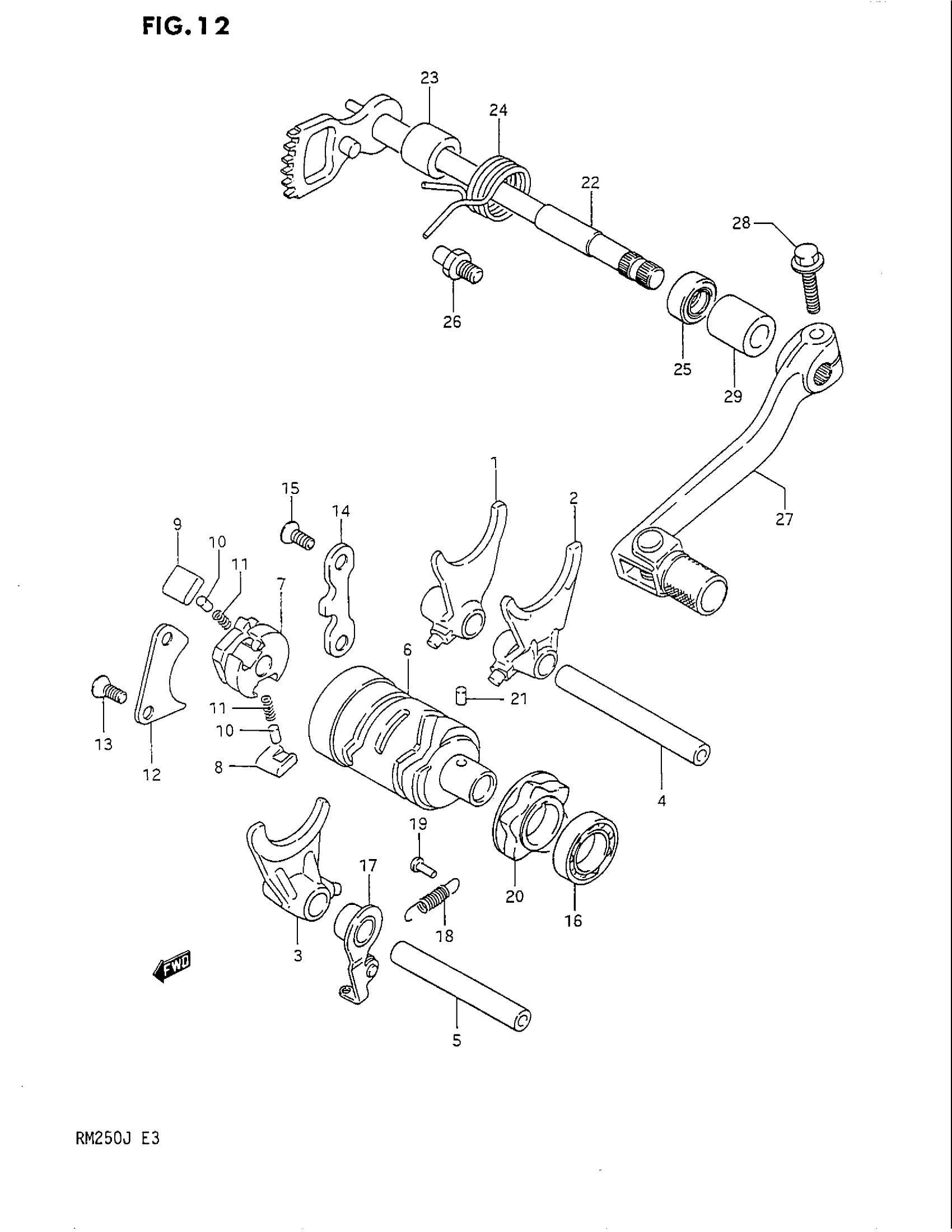

Suzuki RM250 (1988) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, NO.1

25211-14311

Unavailable

2

FORK, NO.2

25221-14311

Unavailable

3

NO DESCRIPTION AVAILABLE This part replaces 25231-14312.

25231-14X00

Unavailable

4

SHAFT, NO.2 This part replaces 25411-14330.

25411-14331

$23.07

5

SHAFT, NO.2 (L:70)

25421-14330

Unavailable

6

NO DESCRIPTION AVAILABLE This part replaces 25310-14311.

25310-14312

Unavailable

7

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-31301.

25322-31310

$26.93

8

PAWL, GEAR SHIFT NO.1

25323-34201

$7.22

9

PAWL, GEAR SHIFT NO.2

25324-34201

$7.22

10

PIN

09261-05003

$1.54

11

SPRING

09440-04003

$1.54

12

LIFTER, PAWL

25331-16500

Unavailable

13

SCREW This part replaces 02122-06128.

02122-06127

$1.84

14

GUIDE, CAM

25341-14500

Unavailable

15

SCREW This part replaces 02122-06128.

02122-06127

$1.84

16

BEARING

08113-69030

$28.45

17

STOPPER, CAM

25350-14311

Unavailable

18

SPRING

09443-06049

Unavailable

19

HOOK

09223-04001

$1.68

20

PLATE, STOPPER

25381-00B00

Unavailable

21

PIN (4X13.8)

04221-04089

$1.49

22

NO DESCRIPTION AVAILABLE This part replaces 25510-00B00.

25510-00BV0

Unavailable

23

SPACER (12X20X15.3)

09180-12083

$2.45

24

SPRING

09444-26013

$3.10

25

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

26

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.48

27

LEVER, GEAR SHIFTING

25600-14321

Unavailable

28

BOLT This part replaces 01517-06258.

01550-06257

$2.30

29

CUSHION, CHAIN (12X20X20)

09180-12108

Unavailable
