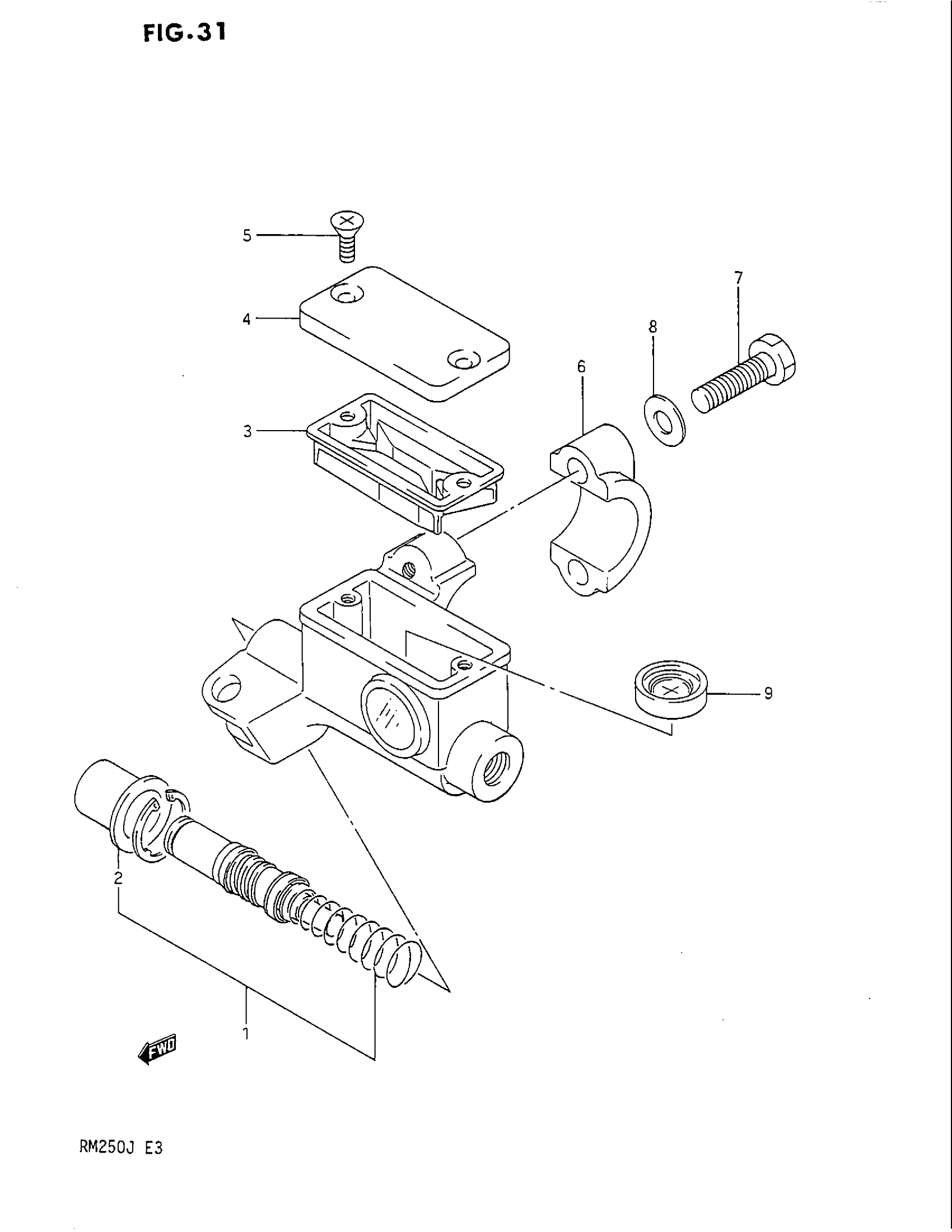

Suzuki RM250 (1988) FRONT MASTER CYLINDER Diagram

#

Description

Price

CYLINDER ASSY, FRONT MASTER | Includes Item(s) 1 - 9 This part replaces 59600-02B01.

59600-27C01

$292.48

1

.PISTON/CUP SET This part replaces 59600-02820.

59600-03820

$42.02

2

BOOT

59666-44300

$5.80

3

DIAPHRAGM

59667-14500

$10.12

4

CAP This part replaces 59669-14500.

59669-27C01

$23.32

5

SCREW

69689-49300

$1.91

6

HOLDER

59671-14500

Unavailable

7

BOLT

01204-06255

Unavailable

8

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

9

SEPARATOR

59748-14500

$11.87
