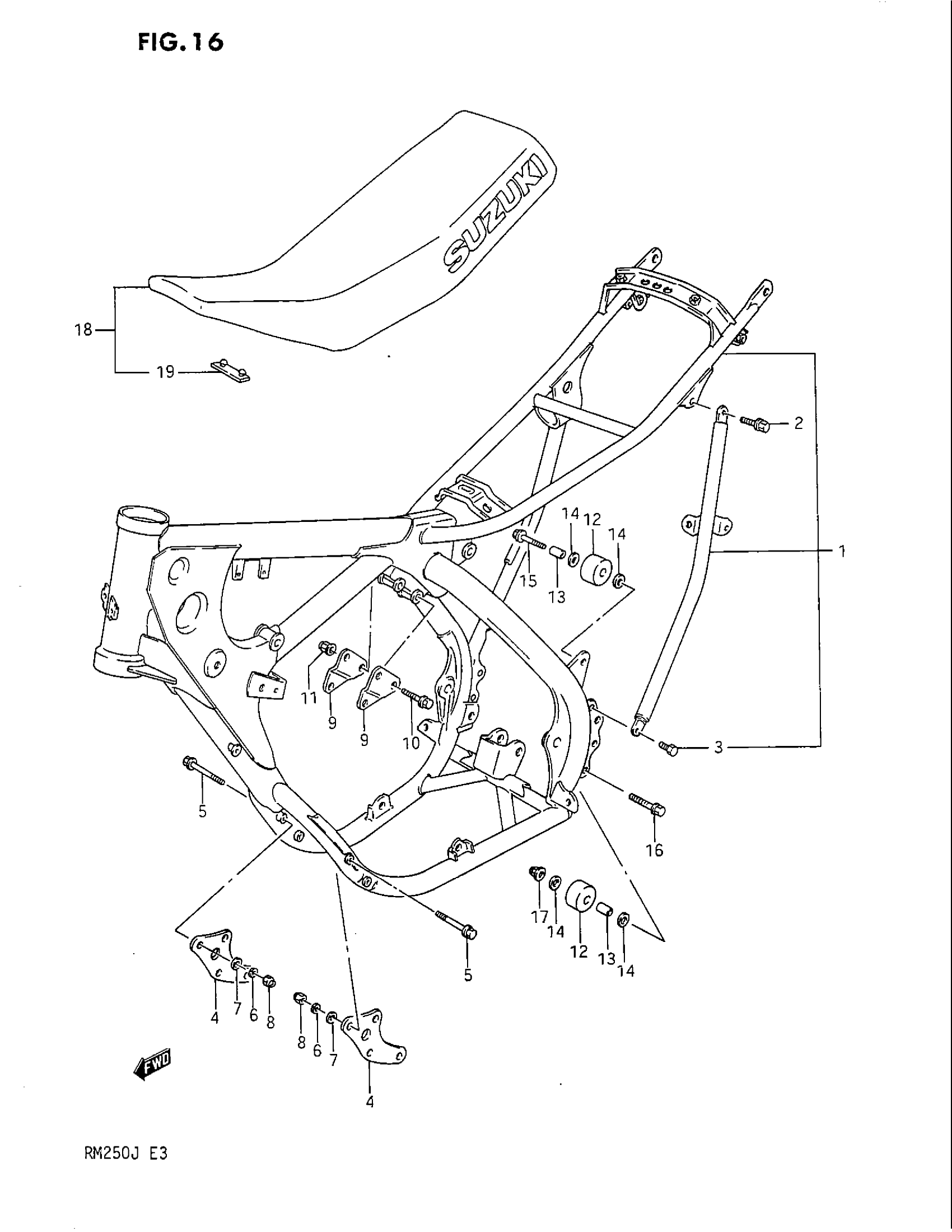

Suzuki RM250 (1988) FRAME - SEAT Diagram

#

Description
Price

1

FRAME SET (BLUE) | Includes Item(s) 2 - 3

41100-26830-19F

Unavailable

2

BOLT (8X20) This part replaces 09103-08055.

09103-08505

$3.58

3

BOLT (8X16) This part replaces 09100-08267.

09100-08284

$3.87

4

PLATE, ENGINE MOUNTING

41991-26C00

Unavailable

5

.BOLT (8X55) This part replaces 09103-08027.

09103-08339

$3.49

6

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

7

WASHER This part replaces 08322-11088.

08322-01087

$2.13

8

NUT This part replaces 08319-21088.

08319-2108A

$2.12

9

PLATE, ENGINE MOUNT UPPER

41993-26C00

Unavailable

10

BOLT, MUF SPRT,RR This part replaces 01517-08457.

01550-08457

$4.00

11

NUT

08319-31087

$2.32

12

ROLLER, CHAIN CONTROL UPPER

43911-01B10

$16.63

13

SPACER (8.5X14X28) This part replaces 09180-08136.

09180-08206

$5.75

14

WASHER

08211-08221

$2.45

15

BOLT, UPPER

09103-08083

$3.70

16

BOLT (8X50)

09103-08081

$3.72

17

NUT, LOWER

08319-31087

$2.32

18

SEAT ASSY (BLUE) | Includes Item(s) 19

45100-26C00-4UZ

Unavailable

19

CUSHION

09321-08009

$3.05
