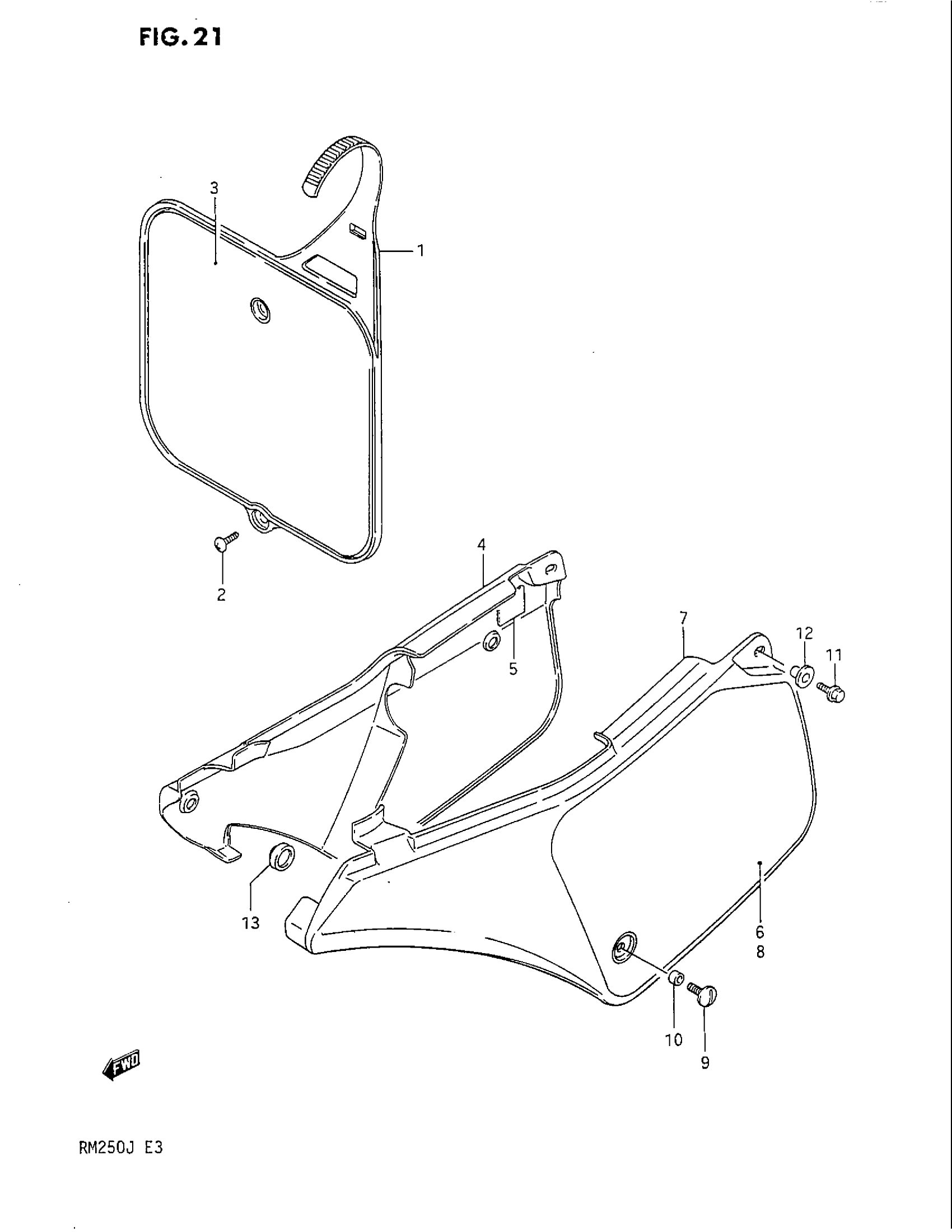

Suzuki RM250 (1988) FRAME COVER Diagram

#

Description
Price

1

PLATE, FRONT NUMBER (YELLOW) This part replaces 94911-00B00-25Y.

94911-00B10-25Y

$64.72

2

SCREW This part replaces 02142-05164.

02142-0516A

$1.49

3

TAPE SET, FRONT NUMBER (GREEN

68255-14500-722

Unavailable

4

COVER, FRAME RH (YELLOW)

47111-01B01-25Y

Unavailable

5

SHIELD,FRM CVR, This part replaces 47166-26C00.

47167-28C10

Unavailable

6

EMBLEM, RH (BLACK) This part replaces 68132-01B00-722.

68132-01B00-291

Unavailable

7

COVER, FRAME LH (YELLOW)

47211-01B00-25Y

Unavailable

8

EMBLEM, LH (GREEN)

68142-01B00-722

Unavailable

9

SCREW, FRONT

09125-06045

$11.07

10

SPACER (6.1X8X3.5) This part replaces 09180-06098.

09180-06245

$2.11

11

BOLT

01517-06166

Unavailable

12

SPACER This part replaces 09169-06050.

09169-06065

$4.32

13

CUSHION This part replaces 09321-10013.

09321-10018

$5.45
