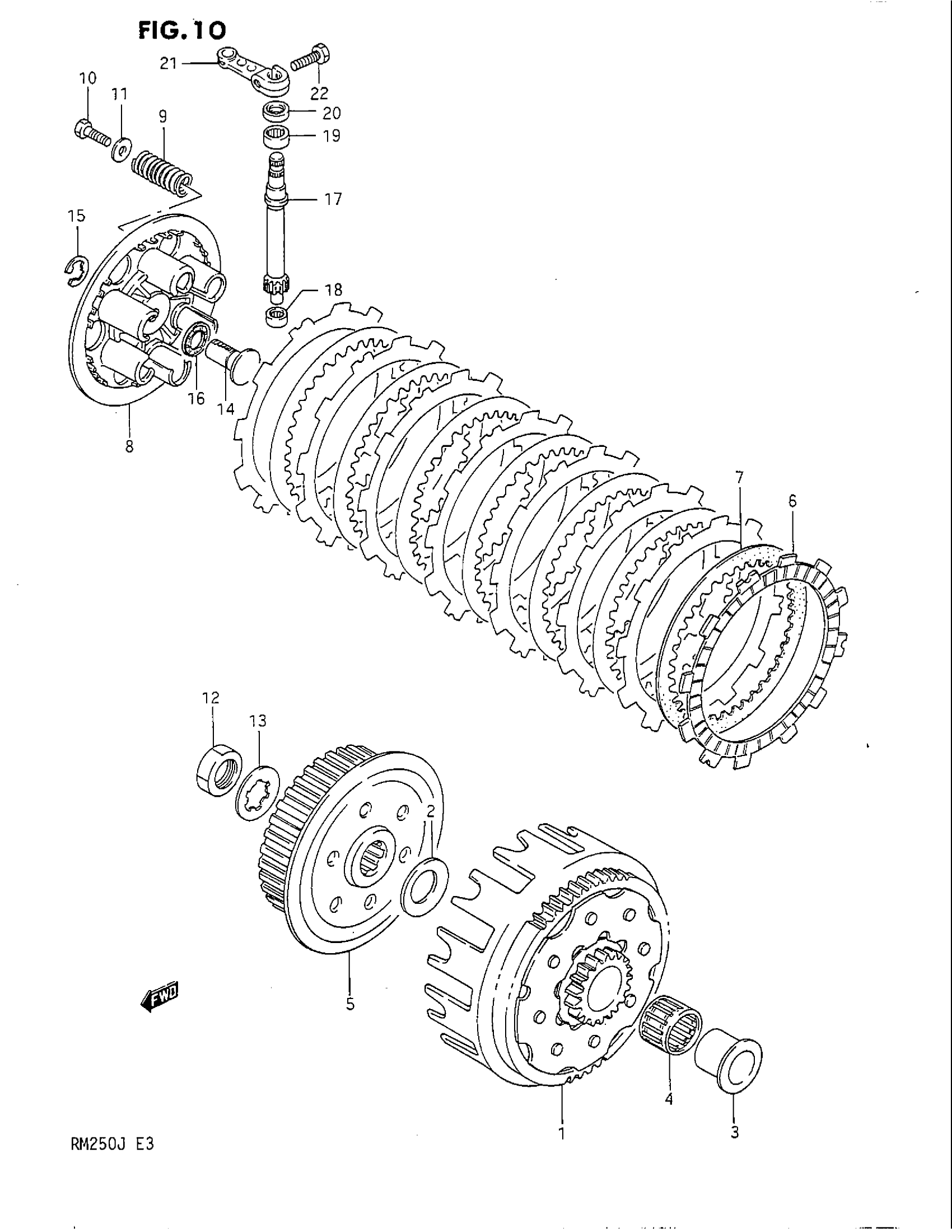

Suzuki RM250 (1988) CLUTCH Diagram

#

Description
Price

1

GEAR ASSY, PRIMARY DIRVEN | NT:59/18

21200-26C01

Unavailable

2

WASHER

09160-20063

$7.35

3

SPACER This part replaces 21251-00B00.

21251-43D00

$35.74

4

BEARING (25X30X22)

09263-25046

$25.92

5

NO DESCRIPTION AVAILABLE This part replaces 21410-26C00.

21410-26C01

Unavailable

6

PLATE, DRIVE NO.1 This part replaces 21441-07A01.

21441-12D01

$20.64

7

PLATE,CLUTCH DRIVEN (T:1.6) This part replaces 21451-45000.

21451-28C31

$11.81

7

PLATE, CLUTCH DRIVEN | OPT This part replaces 21451-40001.

21451-31000

$10.40

8

DISC, PRESSURE

21462-26C00

Unavailable

9

SPRING This part replaces 09440-19021.

09440-19024

Unavailable

10

BOLT (5X16)

09100-05002

$1.49

11

WASHER (5.5X20X1.2) This part replaces 09160-05030.

09160-05501

$1.84

12

NUT This part replaces 09140-20002.

09140-20001

$3.37

13

LOCK WASHER This part replaces 09167-20006.

09167-20009

$2.03

14

RACK This part replaces 23165-28300.

23165-46000

$22.21

15

.E-RING This part replaces 08332-11088.

08332-1108A

$1.78

16

THRUST BEARING

09263-10002

$10.19

17

PINION

23261-00B20

Unavailable

18

BEARING, NO.1

09263-09001

$14.53

19

BEARING, NO.2

09263-12024

$12.67

20

OIL SEAL (10X17X5)

09285-10004

$3.37

21

ARM, CLUTCH RELEASE This part replaces 23271-20900.

23271-20902

$29.60

22

BOLT This part replaces 01107-06166.

01500-0616A

$1.78
