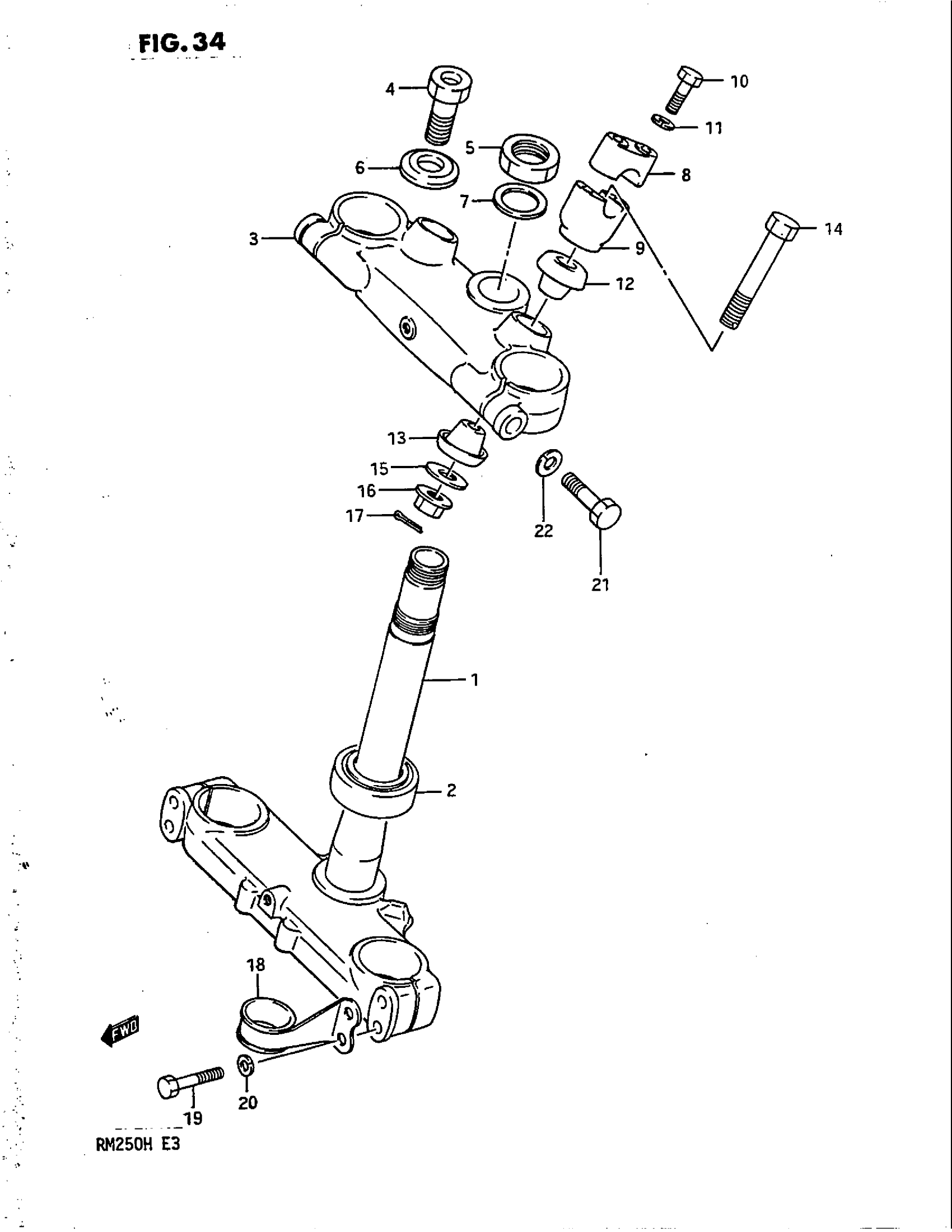

Suzuki RM250 (1987) STEERING STEM Diagram

#

Description
Price

1

STEM, STEERING | MODEL G

51410-00B00

Unavailable

1

STEM, STEERING | MODEL H; Includes Item(s) 2 This part replaces 51410-00B20.

51410-26C00

Unavailable

2

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

$57.05

3

STEM HEAD, STEERING

51311-00B00

Unavailable

4

BOLT | MODEL G This part replaces 51351-00B00.

51351-30540

Unavailable

5

NUT | MODEL H

51353-24A00

Unavailable

6

WASHER | MODEL G This part replaces 51356-00B00.

51356-41310

Unavailable

7

WASHER, STEM | MODEL H This part replaces 51356-01B20.

51356-24B01

$5.38

8

HOLDER, HANDLE UPPER

56211-27100

$15.23

9

HOLDER, HANDLE LOWER

56221-23450

Unavailable

10

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

11

.LOCK WASHER This part replaces 08321-31087.

08321-01087

$2.13

12

RUBBER, UPPER

56241-14200

$44.53

13

RUBBER, LOWER

56242-14200

$36.08

14

BOLT This part replaces 51321-14200.

56321-28C00

$8.28

15

WASHER This part replaces 51356-40400.

09160-10035

$1.78

16

NUT

08319-31107

$2.73

17

PIN This part replaces 04111-20308.

04111-2030A

$1.50

18

CLIP

58621-00B00

Unavailable

19

BOLT This part replaces 01107-08408.

01500-0840A

$2.60

20

.LOCK WASHER This part replaces 08321-31087.

08321-01087

$2.13

21

BOLT This part replaces 01107-10458.

01500-1045A

$3.04

22

LOCK WASHER This part replaces 08321-31108.

08321-01107

$1.84
