1987 Suzuki RM250 Stand - Footrest Diagram

← All diagrams

Find the part on the Stand - Footrest diagram for your 1987 Suzuki RM250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

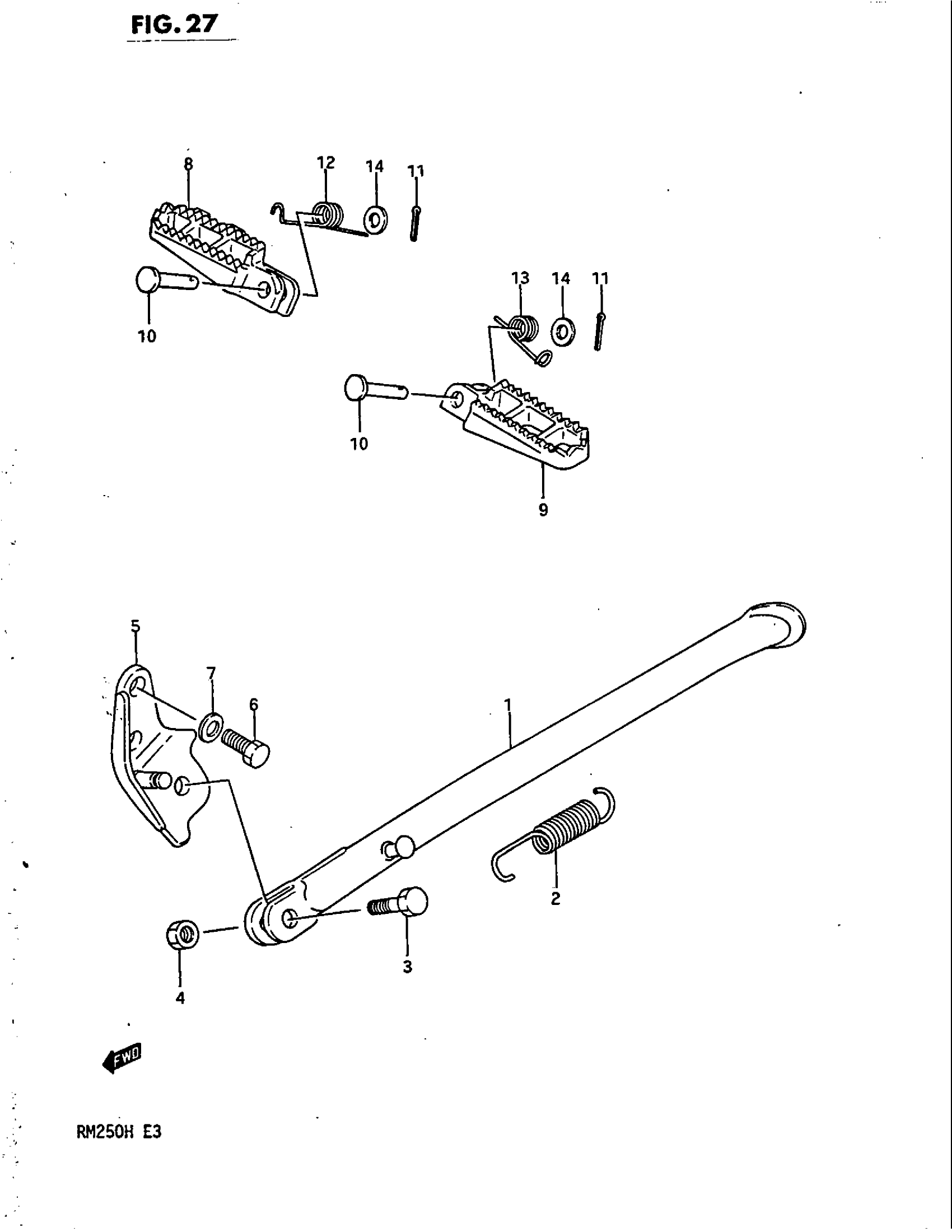

1987 Suzuki RM250 Stand - Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND SIDE This part replaces 42310-01B00-19F.

42310-14400-019

1
Out of stock

2

SPRING

09443-17007

1
Out of stock

3

BOLT (10X30)

09100-10067

1
Out of stock

4

NUT This part replaces 08310-22107.

08310-00107

1
Out of stock

5

BRACKET PROP ST | MODEL G This part replaces 42330-14400-19F.

42330-14400-019

1
Out of stock

5

BRACKET (BLUE) | MODEL H

42330-14100-19F

1
Out of stock

6

BOLT

09100-10118

2
Out of stock

7

LOCK WASHER This part replaces 08321-21107.

08321-01107

2
Out of stock

8

FOOTREST, FRONT RH (BLACK) This part replaces 43551-14600-19F.

43551-37202-019

1
Out of stock

9

FOOTREST, FRONT LH (BLACK) This part replaces 43561-40401-19F.

43561-40401-019

1
Out of stock

10

PIN | MODEL G This part replaces 09200-08035.

09200-08064

2
Out of stock

10

PIN | MODEL H

09200-08064

2
Out of stock

11

COTTER PIN This part replaces 04111-20208.

04111-2020A

2
Out of stock

12

SPRING This part replaces 09448-14014.

09448-14014-XC0

1
Out of stock

13

SPRING,FR FOOTR This part replaces 09448-14018.

09448-14018-XC0

1
Out of stock

14

WASHER This part replaces 08322-21088.

08322-01087

2
Out of stock
