1987 Suzuki RM250 Rear Fender Diagram

← All diagrams

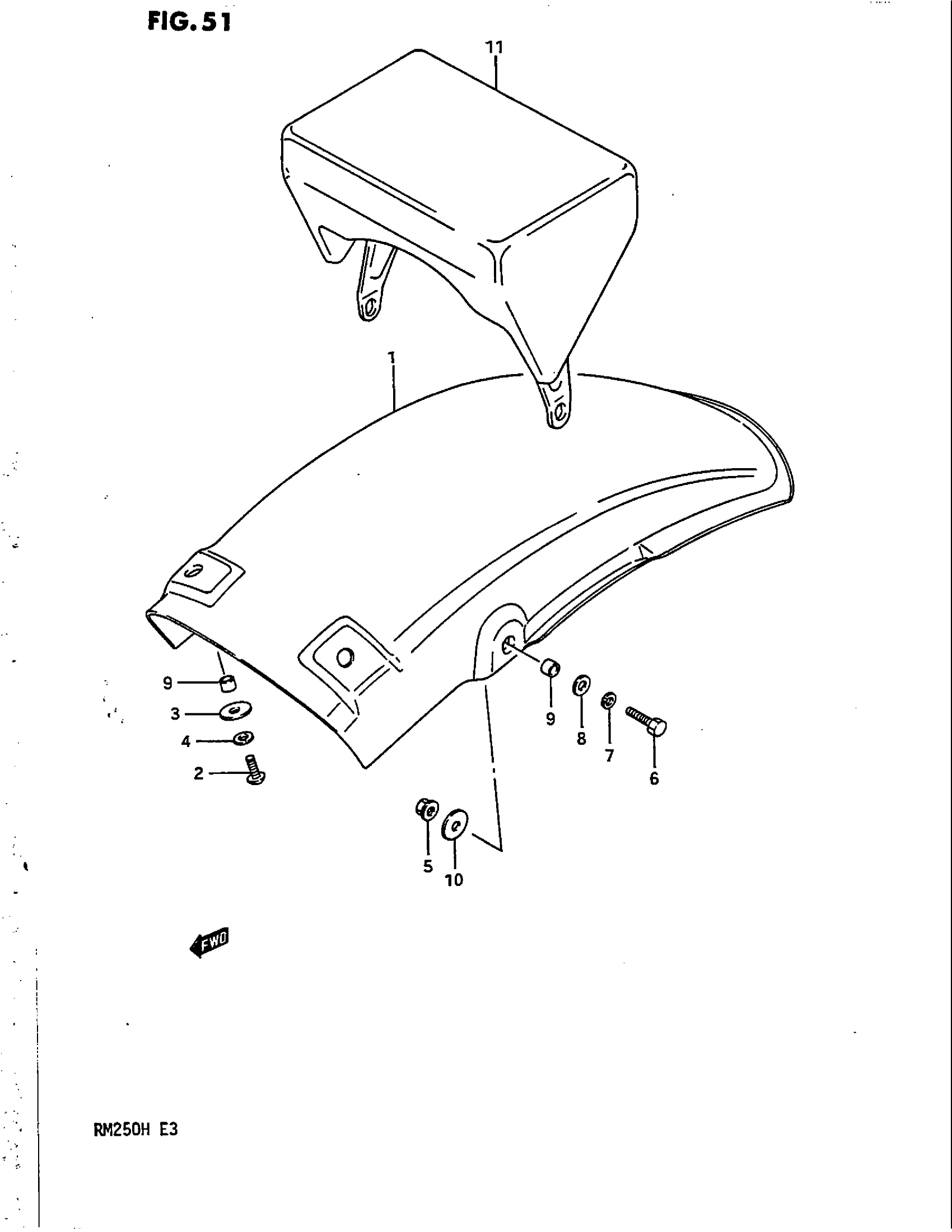

Find the part on the Rear Fender diagram for your 1987 Suzuki RM250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Suzuki RM250 Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY, REAR FENDER REAR | MODEL G This part replaces 63113-14501-163.

63113-26C00-25Y

1
Out of stock

1

BODY, REAR FENDER REAR | MODEL H This part replaces 63113-14501-25Y.

63113-26C00-25Y

1
Out of stock

2

SCREW, FRONT

02142-06167

2
Out of stock

3

WASHER (6.5X20X1.2) This part replaces 09160-06038.

09160-06077

2
Out of stock

4

2

$2.28

In stock

5

NUT This part replaces 09159-06017.

08319-31067

2
Out of stock

6

BOLT This part replaces 01107-06207.

01500-06207

2
Out of stock

7

2

$2.28

In stock

8

WASHER This part replaces 08322-21067.

08322-01067

2
Out of stock

9

4

$2.22

In stock

10

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

2
Out of stock

11

BAG ASSY, SEAT TAIL (BLUE) | MODEL H OPT

94900-38220-4UZ

1
Out of stock
