1987 Suzuki RM250 Rear Wheel Diagram

← All diagrams

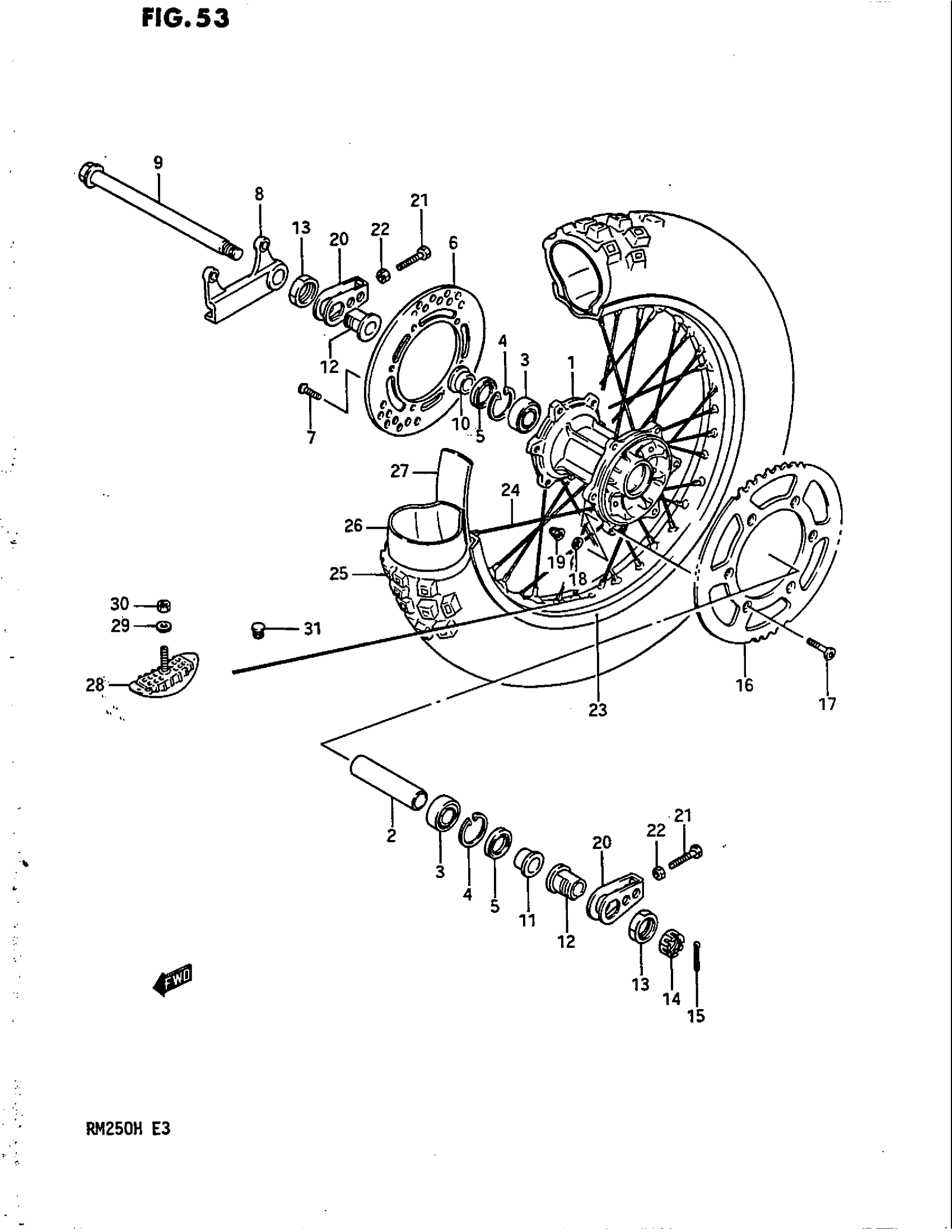

Find the part on the Rear Wheel diagram for your 1987 Suzuki RM250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Suzuki RM250 Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR This part replaces 64110-00B22.

64110-27C01

1
Out of stock

2

SPACER, BEARING This part replaces 64732-00B22.

64731-00B22

1
Out of stock

3

BEARING This part replaces 08123-62047.

08123-6204B

2
Out of stock

4

CIRCLIP This part replaces 08331-41478.

08331-41479

2
Out of stock

5

OIL SEAL (26X47X5) This part replaces 09284-26003.

09283-26019

2
Out of stock

6

DISC, REAR BRAKE

69211-00B20

1
Out of stock

7

SCREW

02122-06167

6
Out of stock

8

BRACKET, CALIPER

69721-00B20

1
Out of stock

9

AXLE, REAR

64711-00B20

1
Out of stock

10

SPACER, RH This part replaces 64741-00B20.

64741-00B21

1
Out of stock

11

SPACER, LH

64751-00B20

1
Out of stock

12

SPACER, CHAIN ADJUSTER

64781-00B20

2
Out of stock

13

NUT

09140-27001

2
Out of stock

14

NUT This part replaces 08314-41188.

08314-40187

1
Out of stock

15

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

1
Out of stock

16

SPROCKET,RR (NT:50) This part replaces 64511-40271.

64511-36E00

1
Out of stock

16

SPROCKET,RR (NT:49) | OPT ALUMINIUM This part replaces 64511-40280.

64511-28E00

1
Out of stock

16

SPROCKET, REAR (NT:51) | OPT ALUMINIUM

64511-40261

1
Out of stock

16

SPROCKET, REAR (NT:49) | OPT STEEL This part replaces 64511-00B00.

64511-00B01

1
Out of stock

16

SPROCKET, REAR (NT:50) | OPT STEEL This part replaces 64511-00B10.

64511-00B12

1
Out of stock

16

SPROCKET, REAR (NT:51) | OPT STEEL This part replaces 64511-00B20.

64511-00B21

1
Out of stock

17

SCREW

09120-08004

6
Out of stock

18

WASHER

09164-08011

6
Out of stock

19

NUT

08319-31087

6
Out of stock

20

ADJUSTER, CHAIN

61410-00B20

2
Out of stock

21

BOLT

09104-08027

2
Out of stock

22

2

$1.93

In stock

23

NO DESCRIPTION AVAILABLE This part replaces 65311-00B20.

65311-28C01

1
Out of stock

24

SPOKE ASSY, WHEEL

65320-00B20

1
Out of stock

25

TIRE, REAR (110/100-18) | BS This part replaces 65100-00B00.

65100-00B10

1
Out of stock

26

TUBE, WHEEL INNER

65200-40430

1
Out of stock

27

IN TUBE PROTECT This part replaces 65261-15010.

55261-26F10

1
Out of stock

28

STOPPER, BEAD This part replaces 65270-14200.

65270-28E00

1
Out of stock

29

WASHER This part replaces 08322-11088.

08322-01087

1
Out of stock

30

1

$1.93

In stock

31

CAP

09250-08013

1

$2.92

In stock
