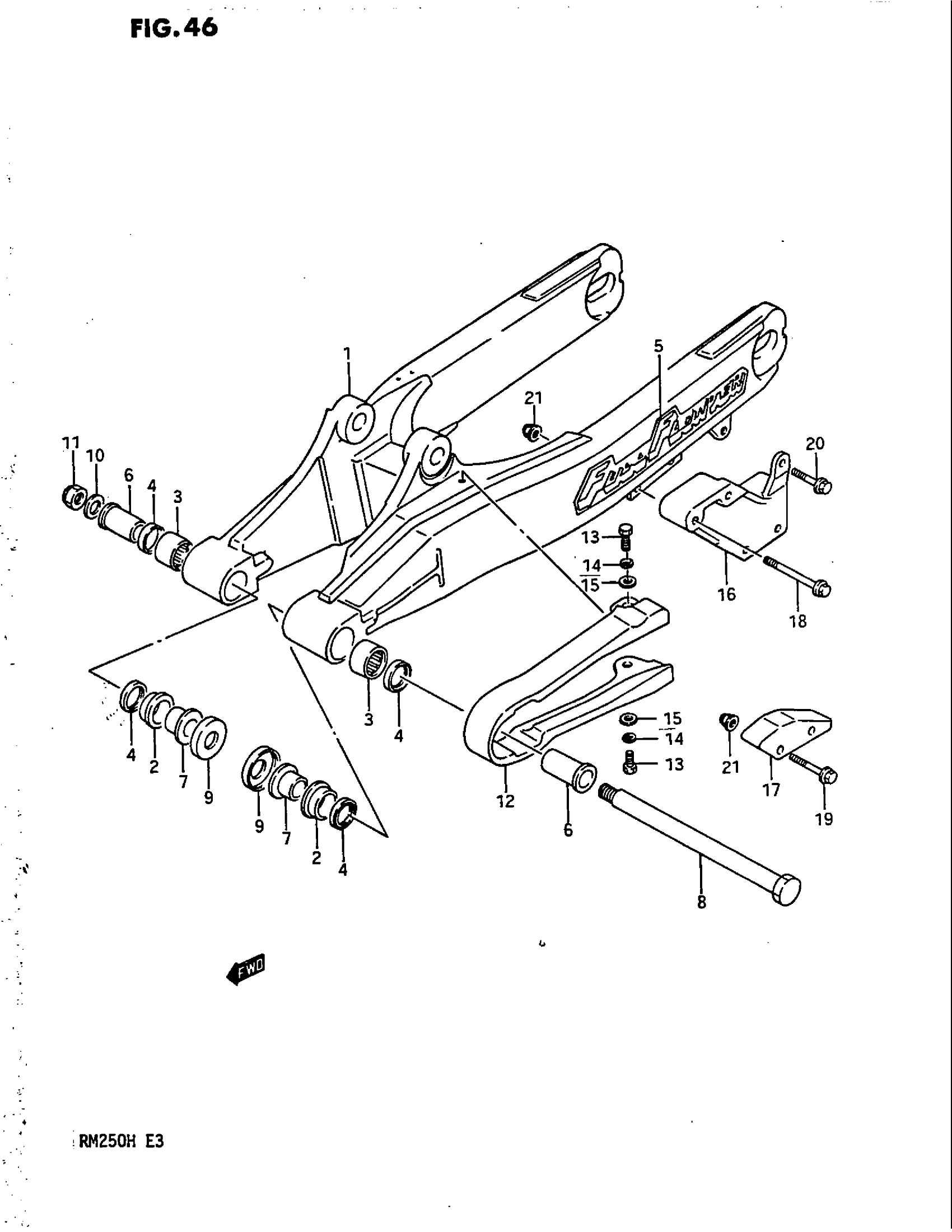

Suzuki RM250 (1987) REAR SWINGING ARM (MODEL H) Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR | Includes Item(s) 2 - 5

61000-00B30

Unavailable

2

BUSH This part replaces 61261-40402.

61261-27C00

Unavailable

3

BEARING

09263-20039

Unavailable

4

DUST SEAL, INNER This part replaces 09285-20005.

09283-20031

$5.24

5

EMBLEM This part replaces 68381-19A10-97J.

68381-27C00-97J

Unavailable

6

SPACER

61251-14600

Unavailable

7

SPACER, INNER

61252-14100

Unavailable

8

SHAFT, PIVOT

61211-00B00

Unavailable

9

SEAL, DUST This part replaces 61262-40400.

61262-40401

$5.93

10

WASHER

09160-14009

$2.82

11

NUT

09159-14019

$11.61

12

BUFFER, CHAIN DEFENSE This part replaces 61273-01B01.

61273-26C00

Unavailable

13

BOLT This part replaces 01107-06127.

01500-06127

$1.97

14

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

15

WASHER

09160-06019

$1.49

16

GUIDE,CHAIN This part replaces 61341-01B02.

61341-01B03

Unavailable

17

DEFENSE, CHAIN GUIDE

61348-01B03

Unavailable

18

BOLT This part replaces 01517-06558.

01550-06557

$3.30

19

BOLT (CHROME) This part replaces 01517-06458.

01550-06457

$2.69

20

BOLT This part replaces 01517-06208.

01550-06207

$2.30

21

NUT This part replaces 08319-31068.

08319-31067

$2.03
