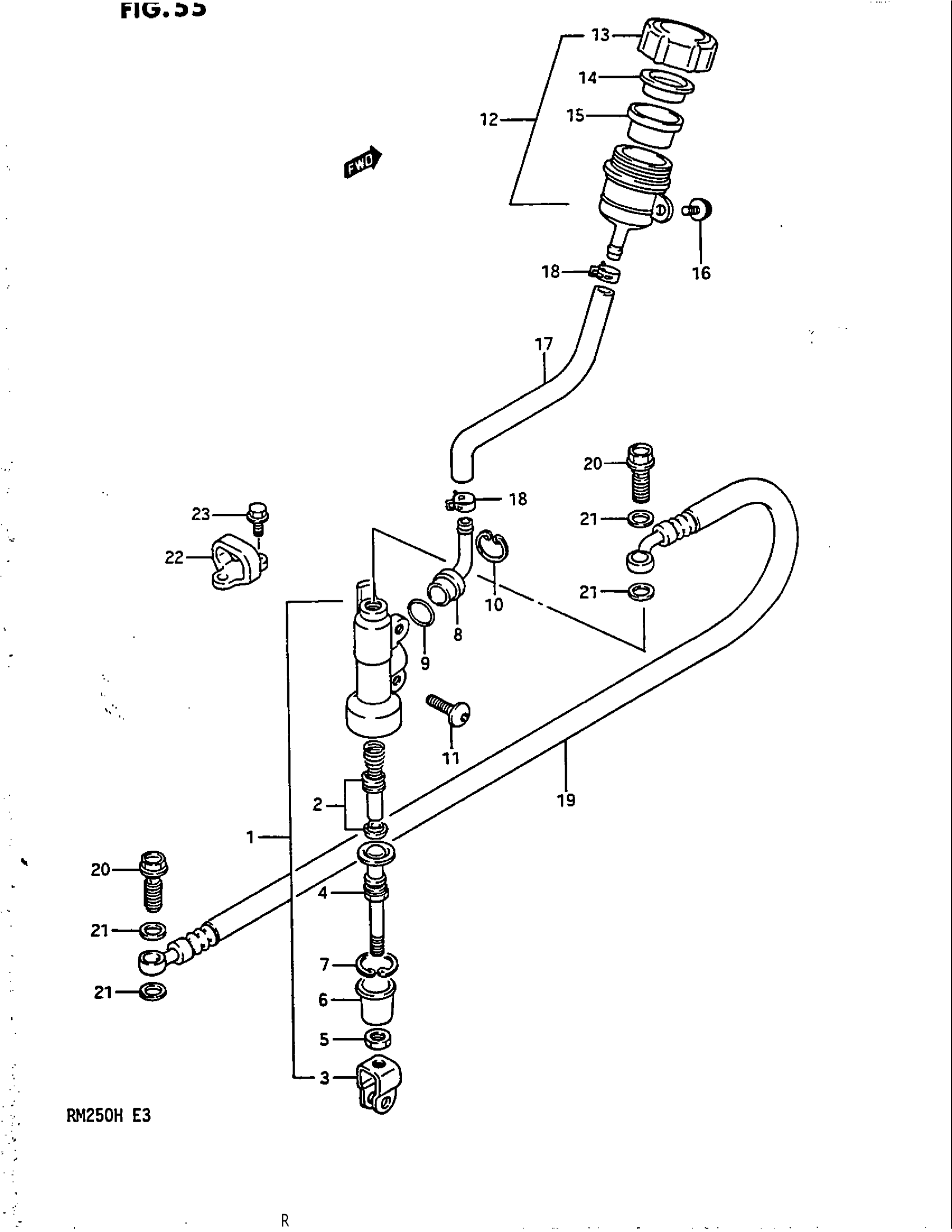

Suzuki RM250 (1987) REAR MASTER CYLINDER (MODEL H) Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 10 This part replaces 69600-00B20.

69600-00B23

Unavailable

2

PISTON/CUP SET

69600-34810

$56.48

3

YOKE This part replaces 69692-00B20.

69692-00B21

$17.02

4

ROD, PUSH This part replaces 69670-00B20.

69670-00B21

$29.25

5

NUT

69693-05A00

$1.96

6

.BOOT

69691-00A00

$5.30

7

CIRCLIP

51162-70040

$3.25

8

CONNECTOR

69672-00B20

$7.01

9

O RING

69686-34200

$2.93

10

CIRCLIP

69674-00B20

$3.97

11

BOLT

09106-06064

$6.02

12

TANK ASSY, RESERVOIR | Includes Item(s) 13 - 15 This part replaces 69740-00B20.

69740-05D00

Unavailable

13

CAP This part replaces 69669-00B20.

69669-03D10

$22.65

14

PLATE

69668-00B20

$7.67

15

DIAPHRGM

69667-00B20

$15.68

16

BOLT This part replaces 01517-06128.

01550-06127

$2.30

17

HOSE, RESERVOIR TANK This part replaces 69731-00B20.

69731-00B23

Unavailable

18

CLAMP

69735-00B20

$4.10

19

NO DESCRIPTION AVAILABLE This part replaces 69480-00B20.

69480-00B21

Unavailable

20

UNION

09360-10017

$3.42

21

WASHER (10X15X1.5)

09161-10009

$1.84

22

CLAMP, REAR BRAKE HOSE This part replaces 61196-00B20.

61196-00B21

$6.79

23

SCREW

02142-05107

$1.49
