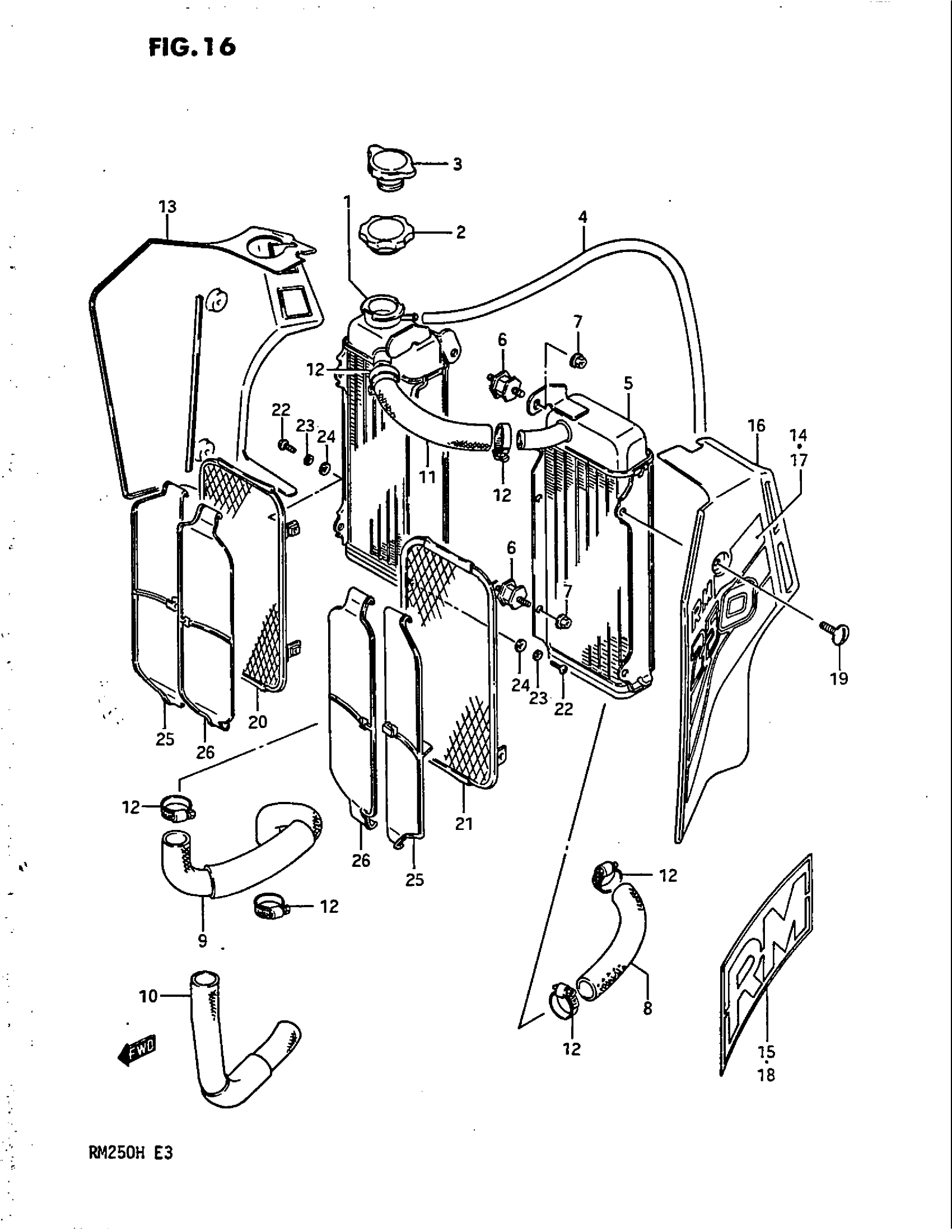

Suzuki RM250 (1987) RADIATOR Diagram

#

Description
Price

1

RADIATOR, RH

17710-01B00

Unavailable

2

CAP, RADIATOR 1.1 | MODEL G This part replaces 17730-14501.

17730-19D11

$42.32

3

CAP, RADIATOR | MODEL H This part replaces 17730-20930.

17730-08J00

$42.50

4

HOSE (5X9X2000) | L:760->650 This part replaces 09343-05347.

09352-50901-00B

$26.94

5

RADIATOR, LH

17720-01B00

Unavailable

6

BOLT,RADIATOR This part replaces 17788-14500.

17788-14501

$15.48

7

NUT This part replaces 08316-16064.

08316-1006B

$2.50

8

HOSE, INLET

17851-00B02

Unavailable

9

HOSE, OUTLET | MODEL G

17852-00B03

Unavailable

10

HOSE, OUTLET | MODEL H

17852-00B21

Unavailable

11

HOSE, JOINT

17853-14500

Unavailable

12

CLAMP | MODEL G This part replaces 09402-25501.

09402-28511

$6.88

12

CLAMP | MODEL H This part replaces 09402-25502.

09402-28511

$6.88

13

COVER, RADIATOR RH | MODEL G This part replaces 17761-14500-163.

17761-14500-25Y

Unavailable

13

COVER, RADIATOR RH | MODEL H

17761-14500-25Y

Unavailable

14

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 68660-00B00-74H.

68660-00B02-74H

Unavailable

15

TAPE SET, RH | MODEL H

68660-01B10-9BV

Unavailable

16

COVER, RADIATOR LH | MODEL G This part replaces 17762-14500-163.

17762-14500-25Y

Unavailable

16

COVER, RADIATOR LH | MODEL H

17762-14500-25Y

Unavailable

17

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 68670-00B00-74H.

68670-00B02-74H

Unavailable

18

TAPE SET, LH | MODEL H

68670-01B10-9BV

Unavailable

19

SCREW

09125-06045

$11.07

20

BUMPER, RADIATOR RH

17810-14500

Unavailable

21

BUMPER, RADIATOR LH

17820-14500

Unavailable

22

SCREW This part replaces 02112-06104.

02112-0610B

$1.84

23

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

24

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

25

LOUVER, MUD GUARD RH

17831-14500

Unavailable

26

LOUVER, MUD GUARD LH

17832-14500

Unavailable
