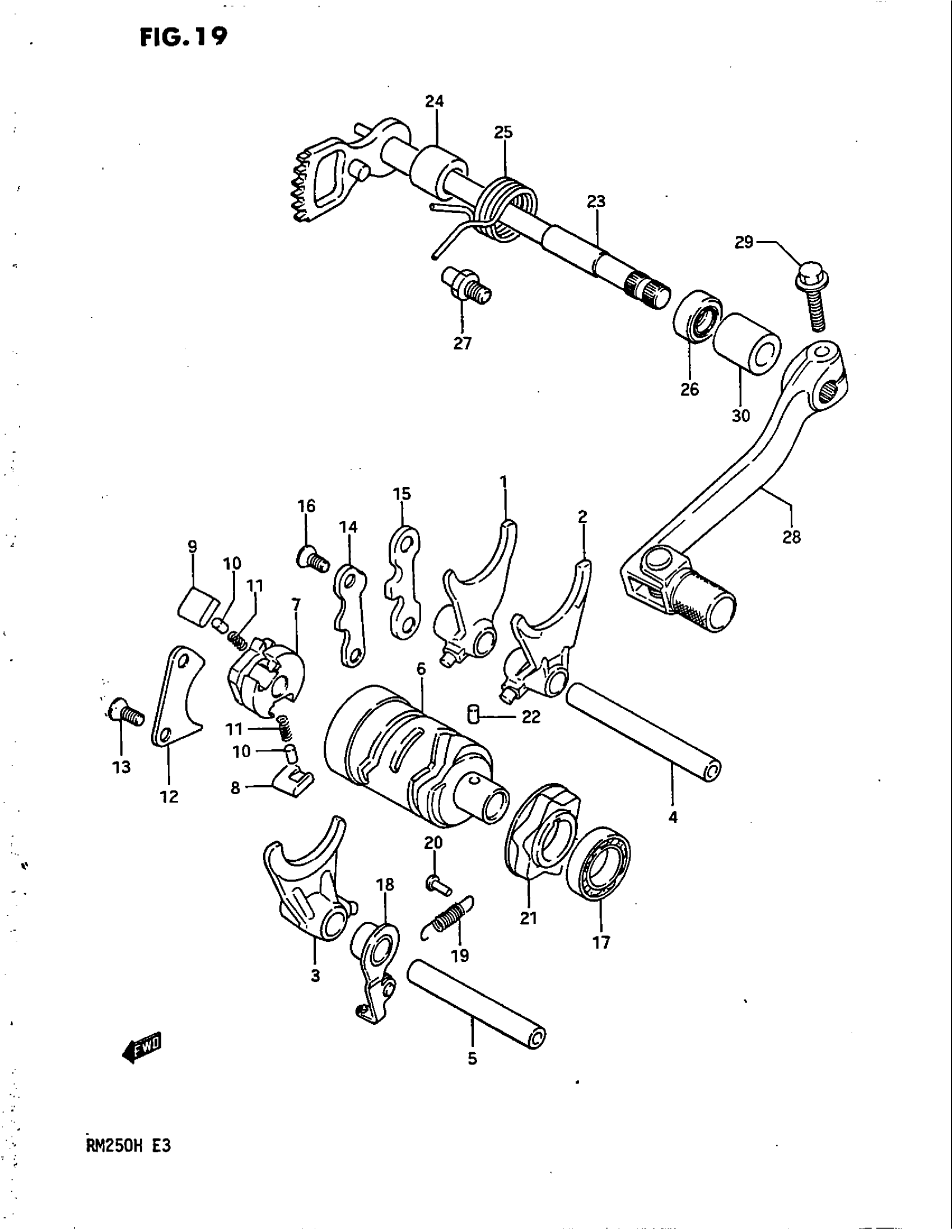

Suzuki RM250 (1987) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, NO.1 This part replaces 25211-14310.

25211-14311

Unavailable

2

FORK, NO.2 This part replaces 25221-14310.

25221-14311

Unavailable

3

NO DESCRIPTION AVAILABLE This part replaces 25231-14311.

25231-14X00

Unavailable

4

SHAFT, NO.2 This part replaces 25411-14330.

25411-14331

$23.07

5

SHAFT, NO.2 (L:70)

25421-14330

Unavailable

6

NO DESCRIPTION AVAILABLE This part replaces 25310-14311.

25310-14312

Unavailable

7

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-31301.

25322-31310

$26.93

8

PAWL, GEAR SHIFT NO.1 This part replaces 25323-34200.

25323-34201

$7.22

9

PAWL, GEAR SHIFT NO.2 This part replaces 25324-34200.

25324-34201

$7.22

10

PIN

09261-05003

$1.54

11

SPRING

09440-04003

$1.54

12

LIFTER, PAWL

25331-16500

Unavailable

13

SCREW This part replaces 02122-06128.

02122-06127

$1.84

14

GUIDE, CAM | MODEL G

25341-14310

Unavailable

15

GUIDE, CAM | MODEL H

25341-14500

Unavailable

16

SCREW This part replaces 02122-06128.

02122-06127

$1.84

17

BEARING

08113-69030

$28.45

18

STOPPER, CAM

25350-14311

Unavailable

19

SPRING

09443-06049

Unavailable

20

HOOK

09223-04001

$1.68

21

PLATE, STOPPER

25381-14310

Unavailable

22

PIN (4X13.8)

04221-04089

$1.49

23

NO DESCRIPTION AVAILABLE This part replaces 25510-00B00.

25510-00BV0

Unavailable

24

SPACER (12X20X15.3)

09180-12083

$2.45

25

SPRING

09444-26013

$3.10

26

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

27

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.48

28

LEVER, GEAR SHIFTING This part replaces 25600-14311.

25600-14321

Unavailable

29

BOLT This part replaces 01517-06258.

01550-06257

$2.30

30

CUSHION, CHAIN (12X20X20)

09180-12108

Unavailable
