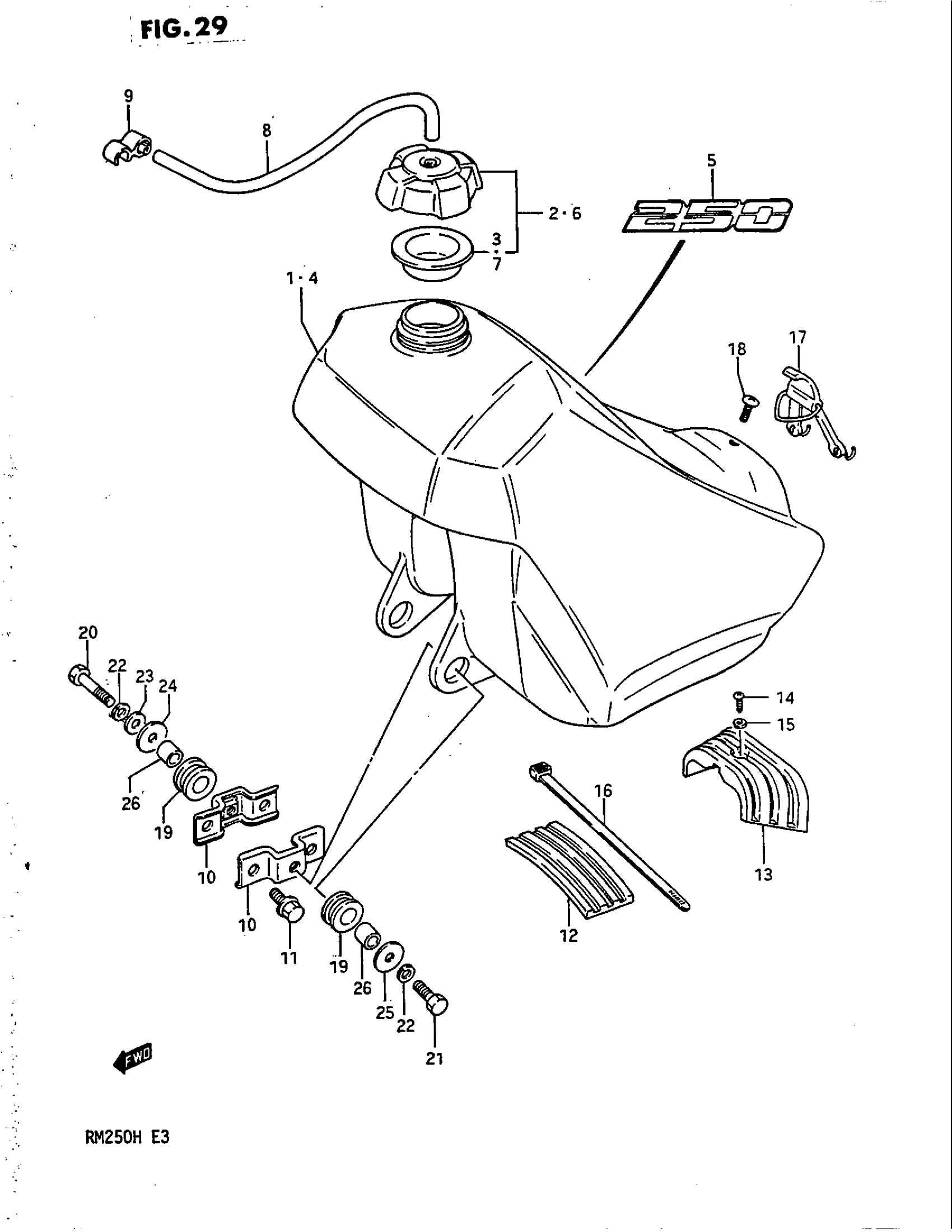

Suzuki RM250 (1987) FUEL TANK Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL G; Includes Item(s) 2 - 3 This part replaces 44100-00810-163.

44100-00811-25Y

Unavailable

2

CAP SET,FUEL TA | MODEL G This part replaces 44200-14820.

44200-27871

$22.96

3

GASKET | MODEL G This part replaces 44248-40400.

44248-05211

$3.76

4

TANK SET, FUEL (YELLOW) | MODEL H; Includes Item(s) 5 - 7

44100-00830-25Y

Unavailable

5

TAPE SET, FUEL TANK | MODEL H

68111-00B00-9BV

Unavailable

6

CAP SET,FUEL TA | MODEL H This part replaces 44200-14820.

44200-27871

$22.96

7

GASKET | MODEL H This part replaces 44248-40400.

44248-05211

$3.76

8

HOSE,5X10X600 This part replaces 09343-05129.

44421-13ER0

$10.06

9

CLAMP

44486-40200

$4.88

10

BRACKET, FUEL TANK

41310-01B01

Unavailable

11

BOLT M8X16 This part replaces 01517-08167.

01550-08167

$2.85

12

CUSHION, UPPER FRONT

44541-14500

$8.28

13

CUSHION, UPPER REAR This part replaces 44542-14501.

44542-01B00

Unavailable

14

SCREW This part replaces 03111-04165.

03112-04163

Unavailable

15

WASHER This part replaces 08322-21045.

08322-0104A

$1.91

16

CLAMP This part replaces 09407-20401.

09407-25402

$4.64

17

BAND, REAR

44560-02B00

Unavailable

18

SCREW This part replaces 09125-06009.

09125-06073

$1.84

19

CUSHION

09320-12030

$2.53

20

BOLT This part replaces 01107-08508.

01500-08507

$3.05

21

BOLT This part replaces 01107-08258.

01500-08257

$2.50

22

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

23

WASHER This part replaces 09160-08035.

09160-08130

$2.03

24

WASHER, RH INNER

09160-08032

$2.30

25

WASHER (8.5X26X1.6) This part replaces 09160-08005.

09160-08134

$2.03

26

SPACER

09180-08033

$2.17
