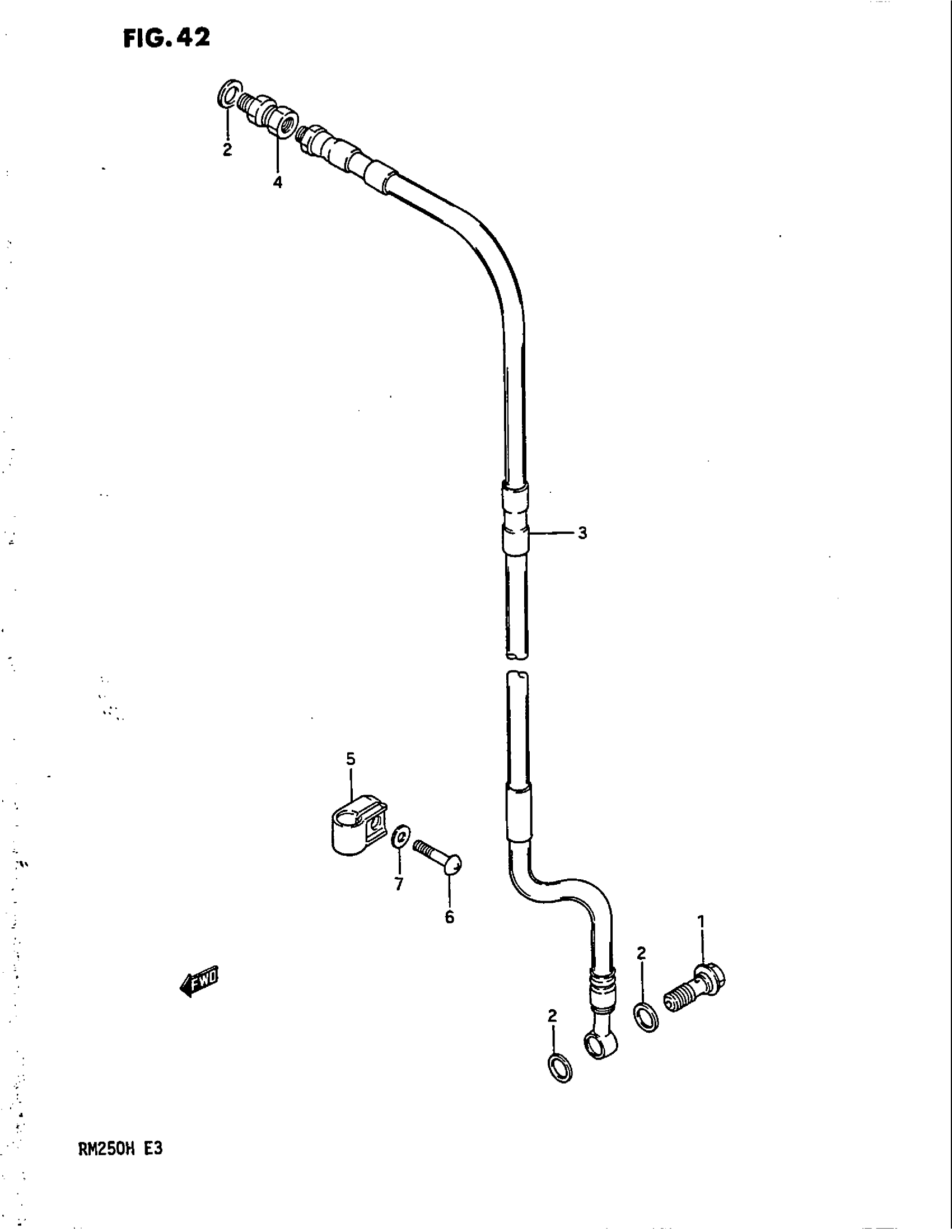

Suzuki RM250 (1987) FRONT BRAKE HOSE Diagram

#

Description

Price

1

BOLT

09360-10017

$3.42

2

WASHER (10X15X1.5)

09161-10009

$1.84

3

HOSE, FRONT BRAKE | MODEL G

59480-14501

Unavailable

3

HOSE, FRONT BRAKE | MODEL H This part replaces 59480-00B21.

59480-00B22

Unavailable

4

ADAPTER, BRAKE HOSE This part replaces 59290-14500.

59290-14501

$36.17

5

CLAMP. BRAKE HOSE This part replaces 59243-14500.

59243-14501

Unavailable

6

SCREW

02112-06167

$1.49

7

WASHER This part replaces 08322-21067.

08322-01067

$2.13
