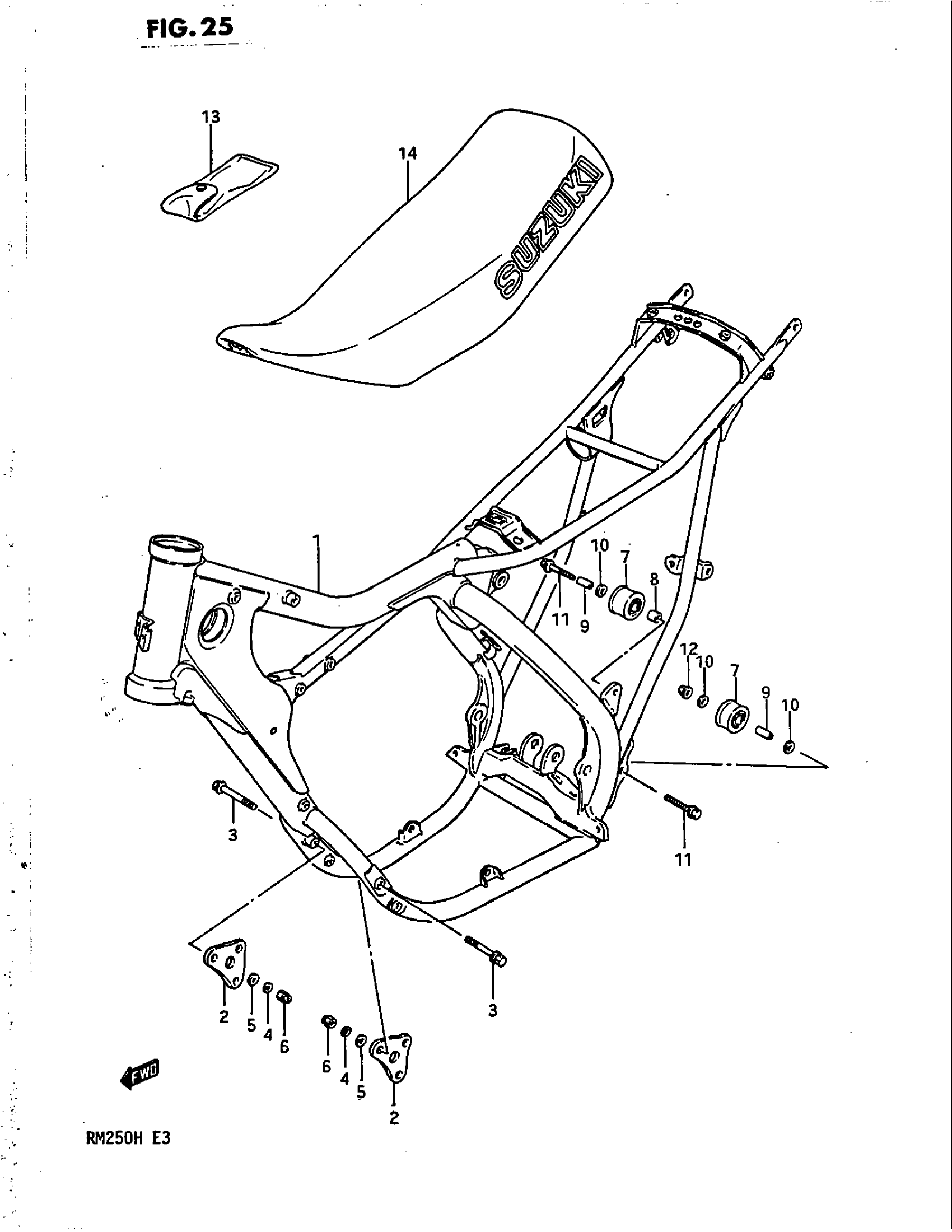

Suzuki RM250 (1987) FRAME - SEAT (MDOEL G) Diagram

#

Description
Price

1

FRAME (BLUE)

41100-00B00-19F

Unavailable

2

PLATE, ENGINE MOUNTING

41991-00B00

Unavailable

3

.BOLT (8X55) This part replaces 09103-08027.

09103-08339

$3.49

4

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

5

WASHER This part replaces 08322-11088.

08322-01087

$2.13

6

NUT This part replaces 08319-21088.

08319-2108A

$2.12

7

ROLLER, CHAIN CONTROL UPPER

43910-01B00

Unavailable

8

SPACER, CHAIN ROLLER UPPER

09180-08132

Unavailable

9

SPACER This part replaces 09180-08119.

09180-08156

$6.70

10

WASHER, GEAR SHAFT This part replaces 08211-08161.

09181-08167

$1.96

11

BOLT, UPPER

09103-08043

$3.18

12

NUT This part replaces 08319-31088.

08319-3108A

$2.32

13

TOOL SET

09800-00320

Unavailable

14

SEAT ASSY (BLUE) This part replaces 45100-00B00-58D.

45100-00B11-4UZ

Unavailable
