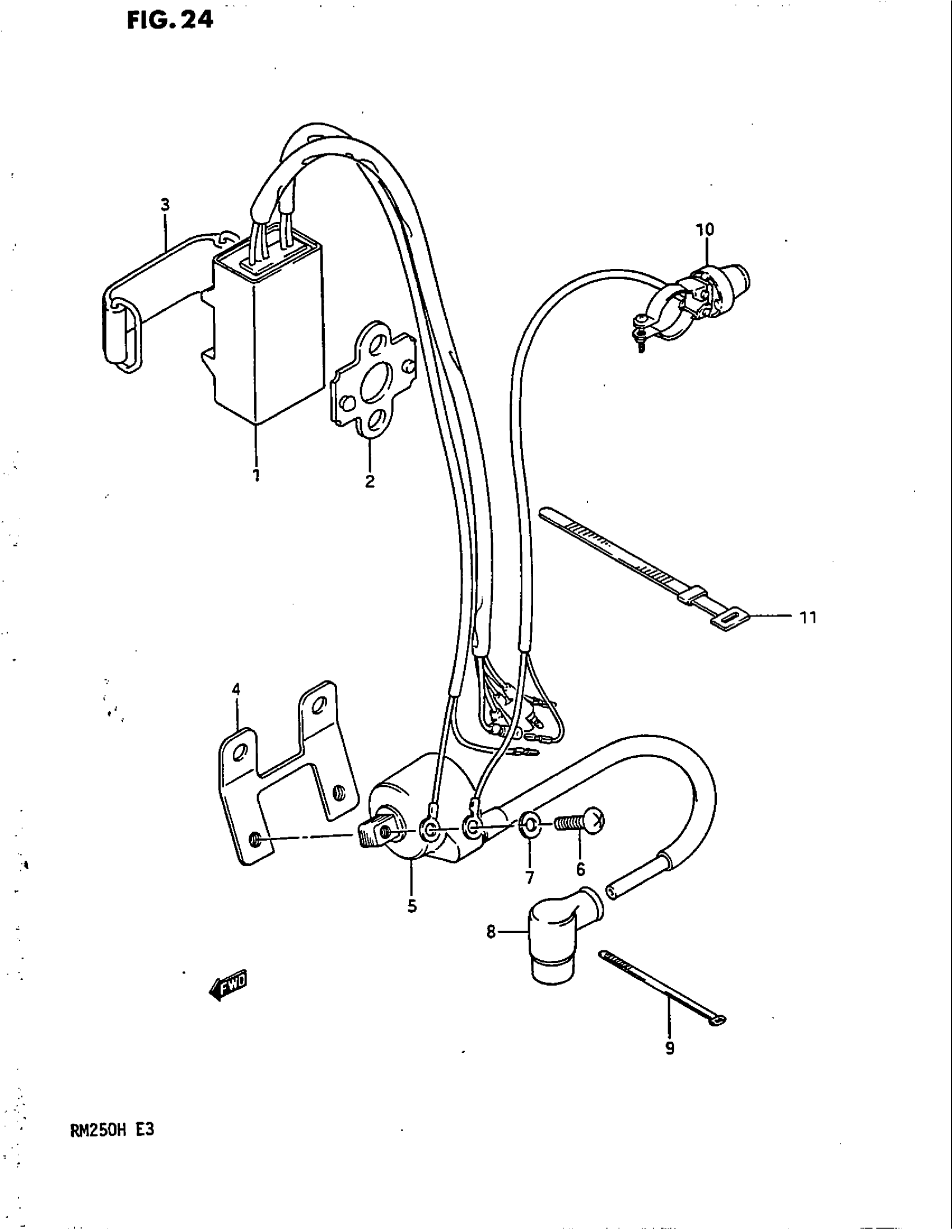

Suzuki RM250 (1987) ELECTRICAL (MODEL H) Diagram

#

Description

Price

1

C.D.I. UNIT

32900-00B30

Unavailable

2

PROTECTOR

32941-14300

Unavailable

3

BAND, CDI UNIT This part replaces 32942-14110.

32942-14111

$8.62

4

BRACKET, IGNITION COIL

33416-01B01

Unavailable

5

COIL ASSY, IGNITION This part replaces 33410-01B20.

33410-12C00

Unavailable

6

SCREW This part replaces 02112-06206.

02112-0620A

$1.49

7

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

8

CAP, SPARK PLUG This part replaces 33510-41111.

33510-20A02

$24.39

9

BELT

09407-09402

$2.45

10

SWITCH ASSY, ENGINE STOP This part replaces 37820-00B00.

37820-14X50

$48.54

11

CLAMP

09407-12402

$3.04
